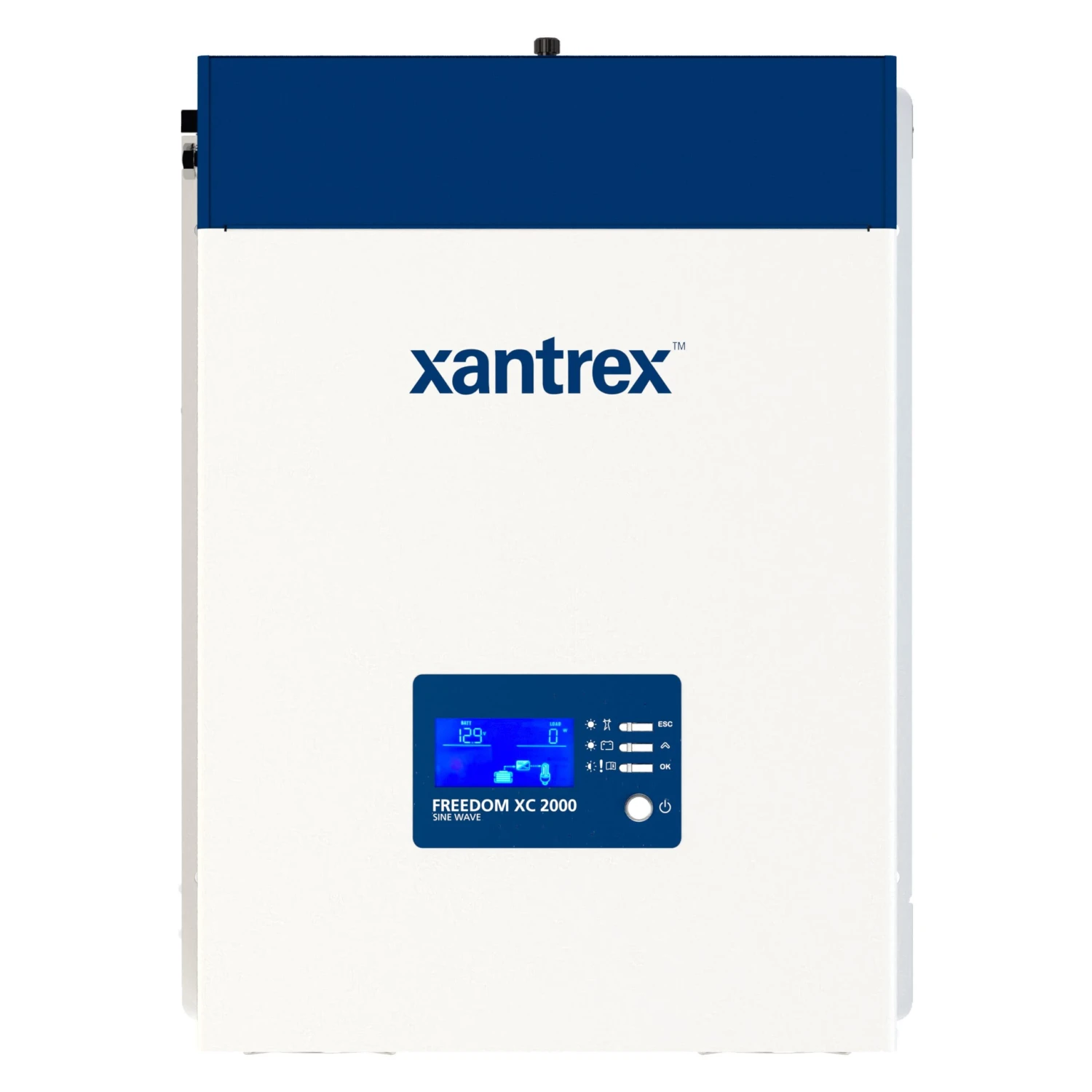

Xantrex® – 2000W 12 DC 230 AC Pure Sine Wave Power Inverter/Charger

2000W 12 DC 230 AC Pure Sine Wave Power Inverter/Charger by Xantrex®. A true sine wave inverter with a built-in lithium-ion battery charger and transfer switch in a compact, lightweight footprint. The FREEDOM XC inverter/charger offers premium performance in a lightweight compact package. It cranks out full output in invert or charge mode from -20°C – 40°C for operation in all climate temperatures. The extended surge rating of the Freedom XC makes it ideal to start difficult loads including a fridge and microwave. The quick connect terminals at AC IN/OUT make installation a breeze.

Specifications:

Features:

• Extended Surge Rating: Surges to 2X continuous power for at least 2 seconds for motor loads
• True Sine Wave AC Power: For operation of sensitive and motor loads
• Ignition Control: Feature to turn inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off
• Wide 10-17 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis
• Programmable AC Under-Voltage (170-220V) Shutdown: Feature ideal to operate under weak shore power or generator input
• Built in 30A AC Transfer Relay: Senses when outside AC Power is present and transfers the load from the inverter to the source of incoming power
• Power Factor Corrected Multi-Stage Charging: Utilizes less shorepower when charging batteries. This frees up more usable AC power for running electrical devices and appliances and reduces the likelihood of tripping shorepower breakers
• Programmable: Configurable 3 stage temperature compensated battery charge algorithm for optimal charging of almost any battery type up to 17V
• Battery Equalization: Maximizes flooded battery life
• Dead Battery Charging Down to 0 Vdc
• Power Share: Prioritizes AC loads by reducing the charge current and maintaining the total input current to less than the breaker setting
• Easily configurable settings to charge any lithium ion battery

Xantrex Technology® is a world leader in the development, manufacturing and marketing of advanced power electronic products and systems for the mobile power markets. With more than three decades of design, engineering and manufacturing experience backed by Schneider Electric’s global infrastructure, Xantrex power solutions offer an enviable mix of advanced technology and unmatched bankability.
