Product Details

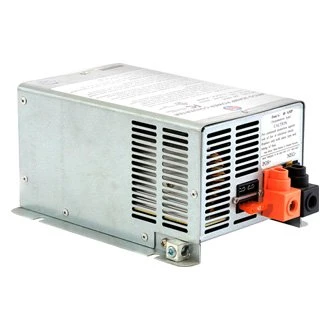

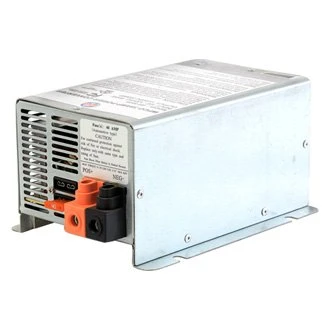

WF-9800 Series 120 AC to 12 DC Power Converter by WFCO®. The WF-9800 Series converter/chargers are versatile, advanced power source solutions.The 9800 Series provides clean power, even without filtering from a battery. Quiet operation is assured as the cooling fan runs only when needed. Another advantage is FCC Class B compliance for the model, which means that the converter is designed not to cause interference with televisions, radios, or other signals. Automatic three-stage battery charging maintains your battery’s life with three nominal voltage output modes: 13.2 VDC range “float” mode, 13.6 VDC range “absorption” mode, and a 14.4 VDC range “bulk” charge mode. Electronic current limiting automatically shuts down the power during overload or short-circuit conditions.
Specifications:
| Converting Type: AC/DC |
| Input Voltage (VDC): 120 AC |
| Output Voltage (VDC): 12 DC |
| USB Port: No |
| Mount Type: Surface Mount |
| Absorption Mode (Nominal Voltage): 13.6V DC |
| Bulk Mode (Quick Charging Voltage): 14.4V DC |
| Certifications: FCC |
| Converter Type: Three-Stage Converter Charger |
| Converts: 105 To 130 Volt AC To 13.2 To 14.4 Volt DC |
| Cooling System: Yes |
| Float Mode (Trickle Charge Voltage): 13.2V DC |
| Frequency: 60 Hz |
| Over Current: Yes |
| Over Temperature: Yes |
| Over Voltage: Yes |
| Reverse Polarity: Yes |
| Short Circuit: Yes |
| Voltage: 13.2 – 14.4V DC Range |
| With Battery Cables: No |
| With Built-In Charger: No |
| With Fuse: No |
| With Reverse Battery Protection: Yes |
| With Short Circuit: Yes |
| With Thermal Protection: No |
| With Volt/Watt Meter: No |
Features:
- Made using cutting-edge technology for ultimate quality
- Will help you bring along all the comforts of your home
- Developed to comply with rigorous quality standards
WFCO® Group has been serving the RV and Automotive Industries for over 40 years. Founded in 1976, WFCO® provides a variety of components and tools ranging from power switching components to pneumatic accessories. Since its beginning, the WFCO Group has had numerous milestones, including the establishment of the Electronics Division (WFCO Electronics) in 1999. The Electronics Division prides itself on being on the forefront of trends, with the continuous development of innovative products. This has helped WFCO Electronics become the leader in manufacturing, distribution and servicing of power conversion products in the RV industry, preferred more than 4-to-1 by RV manufacturers.
