Product Details

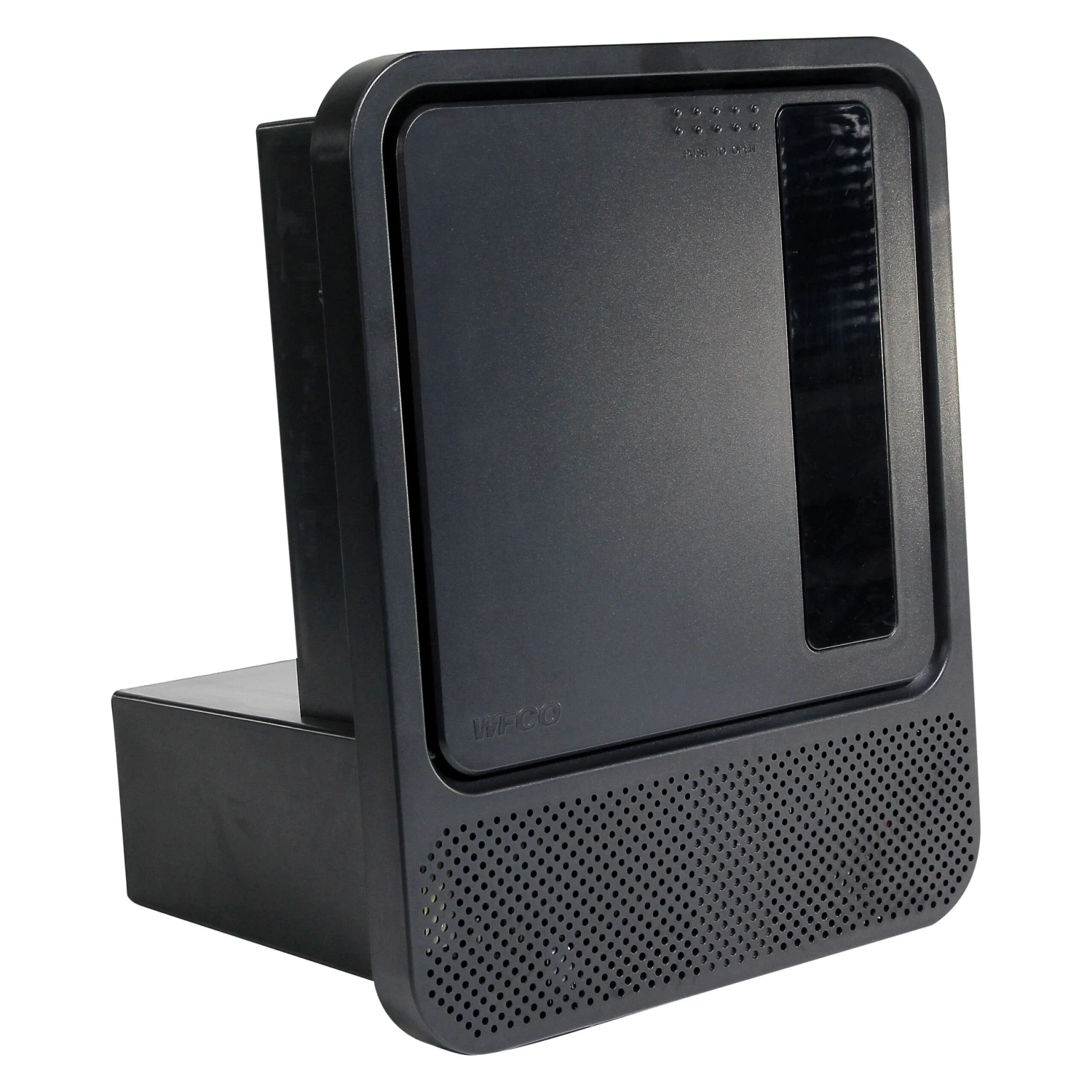

WF-9500 Series 1030W Prewired Power Center with 12 AC/17 DC Branches by WFCO®. This model provides 60 Amps and a clean, constant 13.6 VDC nominal output for reliable operation of electronics and appliances. Automatic three-stage charging extends the life of your battery with output voltage modes of 13.2 VDC range “float” mode, 13.6 VDC range “absorption” mode, and a 14.4 VDC range “bulk” charge mode.
Specifications:
| Amperage: 60A |
| AC Circuits: 12 AC |
| DC Circuits: 17 DC Branches |
| Output Power: 1030W |
| Protection Types: Reverse Polarity, Over Current, Cooling System, Over Voltage, Over Temperature |
| AC Circuits (twin breakers): Two- 50A Mains with up to 12 AC Branch Circuits |
| Built-in Strain Relief: Yes |
| Case Color: Black |
| Case Material: Plastic |
| Certifications: FCC Class B compliant, UL |
| Charging Modes: 3-stage Intelligent Charge (VRLA/AGM) |
| Color: Black |
| DC Circuits (Quantity): 15 (3 30A Max & 12 20A Max) |
| Efficiency (Typical): more 80% |
| Float Mode (Trickle Charge Voltage): 13.2V DC |
| Input Voltage/Hz: 105-130 VAC, 60Hz |
| Intelligent Charging Stages: Absorption, Bulk, Storage (VRLA/AGM) |
| Over Temperature Protection: Auto recovery on normal load |
| Overload Protection: Auto recovery on normal load, Current limiting & shutdown |
| Prewired: Yes |
| Protection Features: Over Temperature, Overload, Reverse Polarity (fuse), Short Circuit |
| Reverse Polarity Protection: Fuse Protected, Replaceable by fuse of same rating |
| Size: 11.9″W x 15″H x 10″D |
| Voltage Output: 13.2 – 14.4V DC Range |
| Voltage: 13.6V |
| Weight: 3.6kg |
Features:
- Made using cutting-edge technology for ultimate quality
- Will help you bring along all the comforts of your home
- Developed to comply with rigorous quality standards
This Series also maintains peace and quiet, as the cooling fan runs only when needed. Exclusive choice of three DC circuit connection modes – Quick Connect Terminals, Screw Terminals, or Wire Pigtails – allows installers to select their preferred wiring connection for speed and ease of installation.
Additionally, the 9500 Series features a zero-clearance, front ventilation system so there is no wasted space around the unit. Every model is designed to comply with FCC Class B, which means that the converters do not cause interference with televisions, radios, or other signals. This model also brings you the convenience of built-in AC and DC distribution. Two 50 Amp main AC breakers and a total of up to twelve AC branch circuits, when using duplex breakers, can be installed. Seventeen DC branch circuits, including three 30 Amp and fourteen 20 Amp, have LED lights that illuminate to indicate open circuits.
WFCO® Group has been serving the RV and Automotive Industries for over 40 years. Founded in 1976, WFCO® provides a variety of components and tools ranging from power switching components to pneumatic accessories. Since its beginning, the WFCO Group has had numerous milestones, including the establishment of the Electronics Division (WFCO Electronics) in 1999. The Electronics Division prides itself on being on the forefront of trends, with the continuous development of innovative products. This has helped WFCO Electronics become the leader in manufacturing, distribution and servicing of power conversion products in the RV industry, preferred more than 4-to-1 by RV manufacturers.
