Product Details

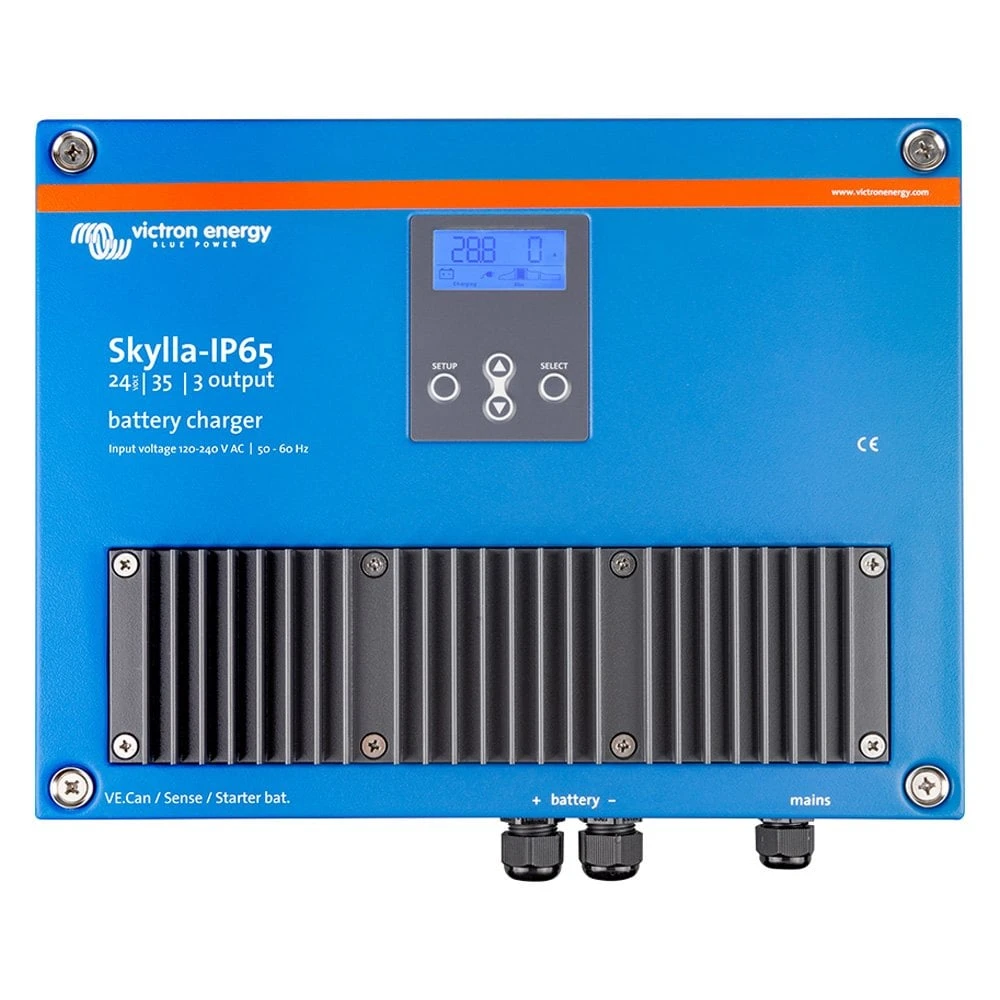

Skylla-IP65™ 24 V Battery Charger (SKY024035100) by Victron Energy®. The Skylla-IP65 (3) features 3 isolated outputs. All outputs can supply the full rated output current. Steel epoxy powder coated case. Withstands the rigors of an adverse environment: heat, humidity and salt air. Circuit boards are protected with an acrylic coating for maximum corrosion resistance. Temperature sensors ensure that power components will always operate within specified limits, if needed by automatic reduction of output current under extreme environmental conditions. For status monitoring and to easily adapt the charge algorithm to a particular battery and its conditions of use. To connect to a CAN-bus network, to a Skylla-i Control panel or to the Color Control digital display. Several chargers can be connected in parallel and synchronised with help of the CAN-bus interface. This is achieved by simply interconnecting the chargers with RJ45 UTP-cables. When only shallow discharges occur the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery is completely recharged.
Specifications:
| AC Voltage: 120 V and 240 V |
| DC Voltage: 24 V |
| Charging Amps: 35 A |
| Battery Capacity: 150-350 Ah |
| Charge algorithm, Li-Ion: 3 stage, with on-off control or CAN-bus control |
| Temperature Sensor: Yes |
| Can be Used as Power Supply: Yes |
| Remote On-Off Port: Yes (can be connected to a Li-Ion BMS) |
| CAN-bus communication port (VE.Can): Two RJ45 connectors, NMEA2000 protocol, not isolated |
| Synchronised Parallel Operation: Yes, with VE.Can |
| Alarm relay DPST AC rating: 240 VAC/4 A; DC rating: 4 A up to 35 V DC, 1 A up to 60 V DC |
| Forced cooling: Yes (internal air circulation) |
| Protection: Battery reverse polarity (fuse), Output short circuit, Over temperature |
| Operating Temp. Range: -20 to 60 °C (Full output current up to 40 °C) |
| Humidity (non-condensing): max 95 % |
| Material and Color: Steel (Blue RAL 5012) |
| Battery-Connection: M6 bolts |
| 230 VAC-Connection: screw-clamp 6mm² (AWG 10) |
| Weight: 14 lb |
| Dimensions: 16″ x 10.5″ x 6″ |
Features:
- Designed to help to get your job done right
- Manufactured utilizing the highest quality materials
- Built to provide exceptional levels of durability
Victron Energy® products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more. Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Victron Energy products are widely considered to be the professional choice for independent electric power.
