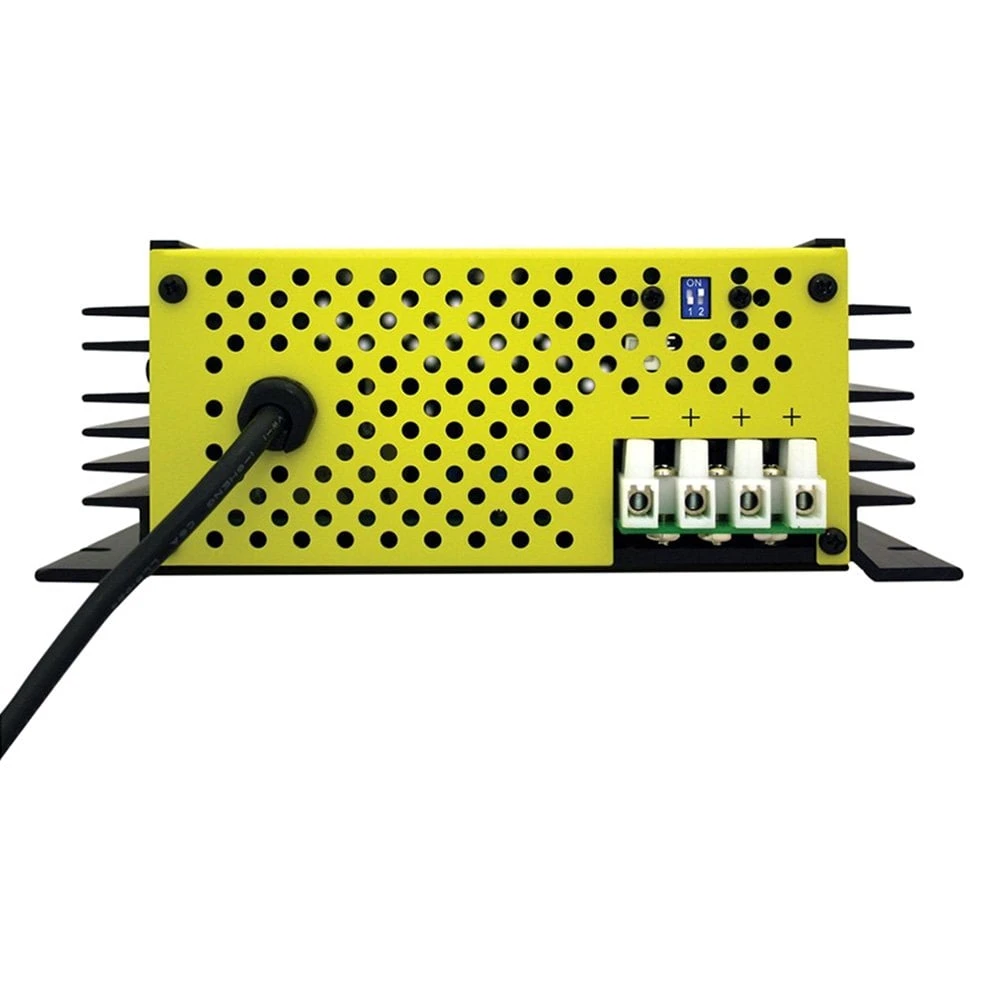

Samlex® SEC-1215UL – 12v 15 Charging Amps Stationary Automatic Switch Mode Battery Charger

Universal 12v 15 Charging Amps Stationary Automatic Switch Mode Battery Charger (SEC-1215UL) by Samlex®. This advanced fully automatic three-stage 80A battery charger is ideal for charging all types of 12V lead-acid batteries ( Flooded / Absorbed Glass Mat (AGM) / Gel Cell) from source. By means of a DIP switch setting, conversion to a two-stage algorithm is possible to charge batteries connected to a DC load (DC UPS). The unit can also be used as a DC Power Supply. Features include overload, short-circuit and over-temperature protection. The unit allows charging of up-to 2 separate battery banks.

Specifications:

Features:

• Switch mode technology for high efficiency, lightweight and quiet operation
• Automatic operation for ALL Lead Acid Batteries Flooded, AGM or Gel Cell
• Can charge 2 banks of batteries simultaneously, no isolator necessary
• Can be used as a power supply or DC UPS when used in conjunction with a battery
• User Selectable ( by DIP Switch) for 2 or 3 stage, rapid and safe charging of standalone and loaded Lead Acid Batteries
• “Half Power Mode” reduces maximum charging current to half the rated capacity, allows for safe charging of lower capacity batteries
• Voltmeter and Ammeter for monitoring
• Fan cooled based on output current
• Protections: Short circuit, overload, reverse battery connection and over temperature
• Includes temperature sensor to prevent under/overcharging of battery if temperature varies extensively
• Two Years Warranty

Samlex America, Inc was incorporated in 1991. Manufactures and distributes power conversion products to customers around the globe. Synonymous with providing quality products at competitive prices and supported by the best customer service in the industry. OEM, custom design and private label services offered as well as specialized component manufacturing factories and assembly facilities located in Europe, Asia and North America. Major markets of communications, electronics and alternative energy supported by extensive distributor network.
