Product Details

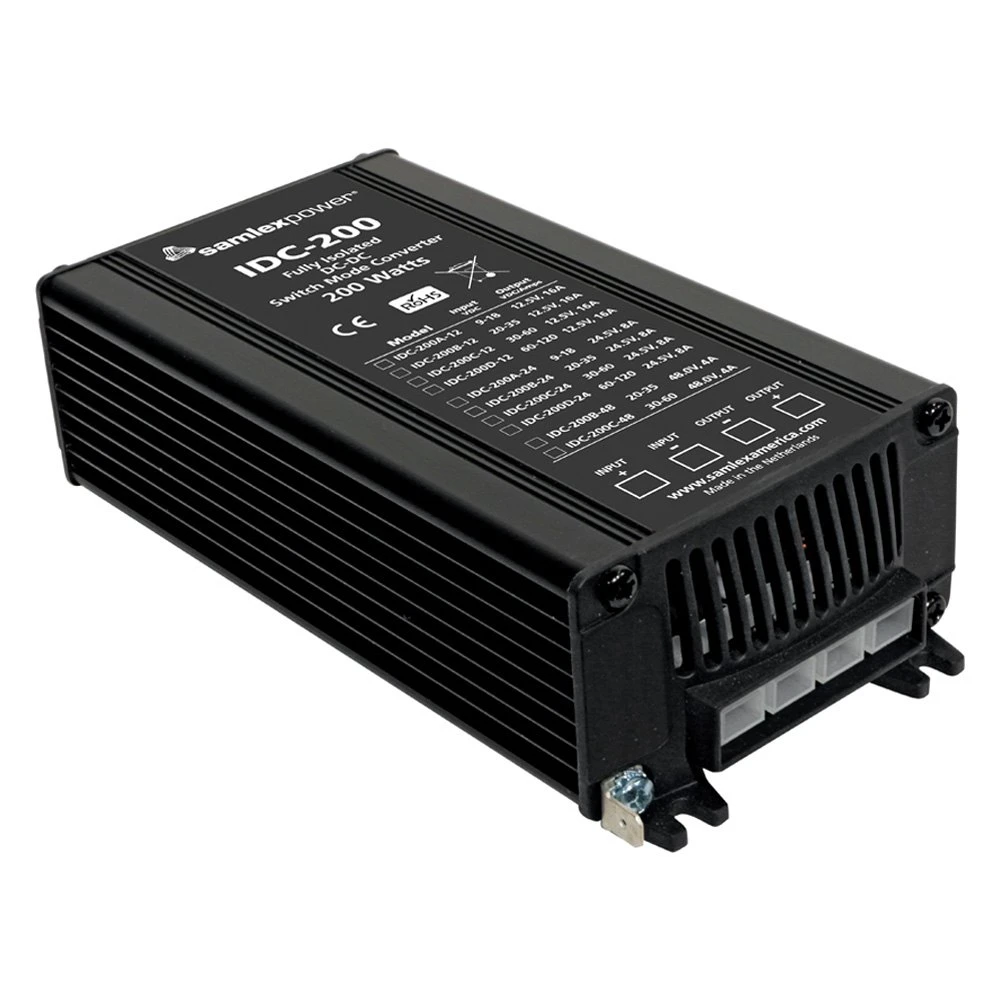

IDC Series 20 – 35 DC to 24.5 DC 8A Isolated Step Down Converter by Samlex®. DC-DC converters are designed to incerase or decrease the DC voltage that is input to the converter.
Specifications:
| Converting Type: DC/DC |
| Input Voltage (VDC): 20 – 35 DC |
| Output Voltage (VDC): 24.5 DC |
| Output Amperage: 8A |
| Mount Type: Surface Mount |
| Size: 6.9″L x 3.5″W x 1.9″D |
| Applications: Earth moving equipment, Heavy trucks, Buses, Marine vehicles, CB radios, 12 Volt lighting systems, AM/FM sound systems |
| Weight: 1.4 lb |
Features:
- Completely Isolated
- Short Circuit Protected
- Current Limiting circuit
The IDC-200 series is a complete line of highly efficient 200W isolated DC-DC converters suitable for applications requiring galvanic isolation between the input and the output. The IDC-200B-24 isolated DC-DC converter provides a highly regulated output DC voltage of 24.5 Volts for an input DC voltage range of 20-35 Volts and rated output current of 8 Amps (at 35 Volts input). Features of this isolated DC-DC converter include compact housing, foldback current limiting and protection against short circuit, overheating, overvoltage and reverse polarity connections. The unit comes with 6,3 mm push on flat blade “quick disconnect” connectors. The IDC-200B-24 isolated DC-DC converter is EMI/EMC compliant and conforms to the European standards EN50081-1 (for EMI), EN50082-1 (for EMC) and the European Automotive Directive 95/54/CE.
Samlex America, Inc was incorporated in 1991. Manufactures and distributes power conversion products to customers around the globe. Synonymous with providing quality products at competitive prices and supported by the best customer service in the industry. OEM, custom design and private label services offered as well as specialized component manufacturing factories and assembly facilities located in Europe, Asia and North America. Major markets of communications, electronics and alternative energy supported by extensive distributor network.
