Product Details

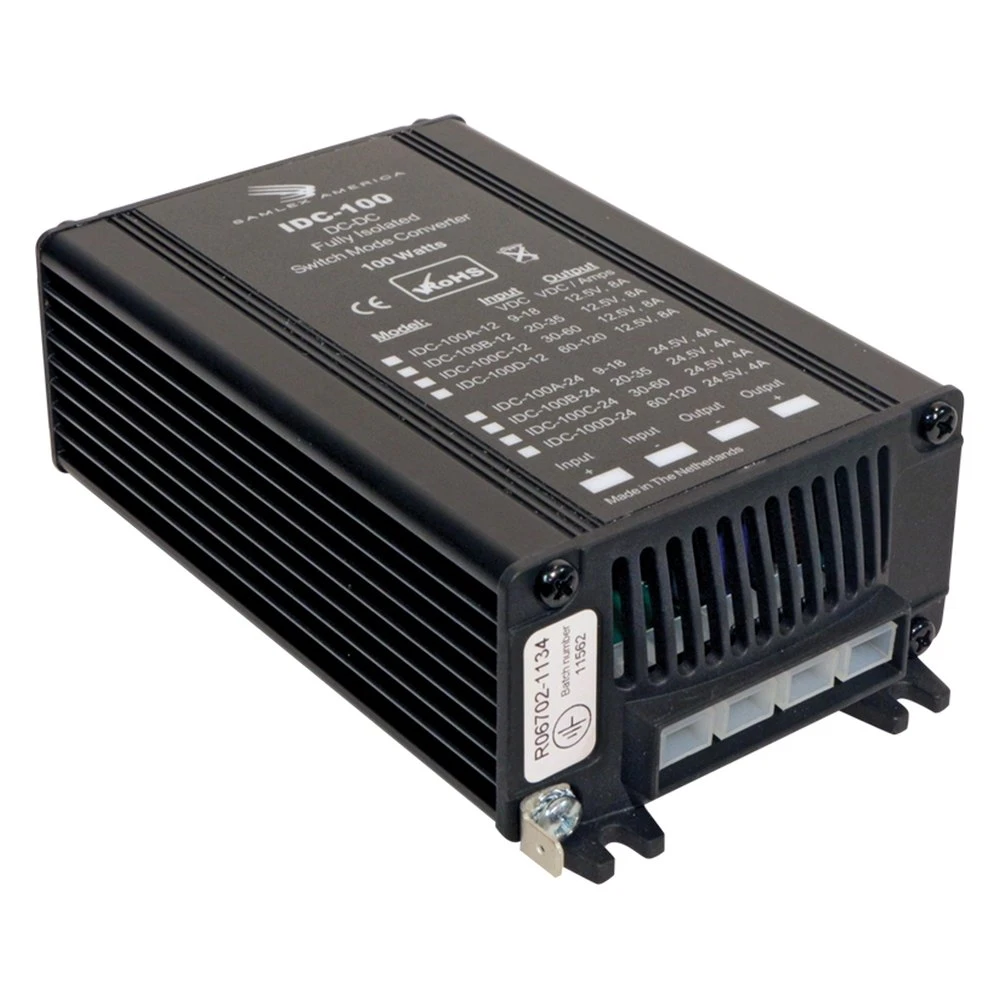

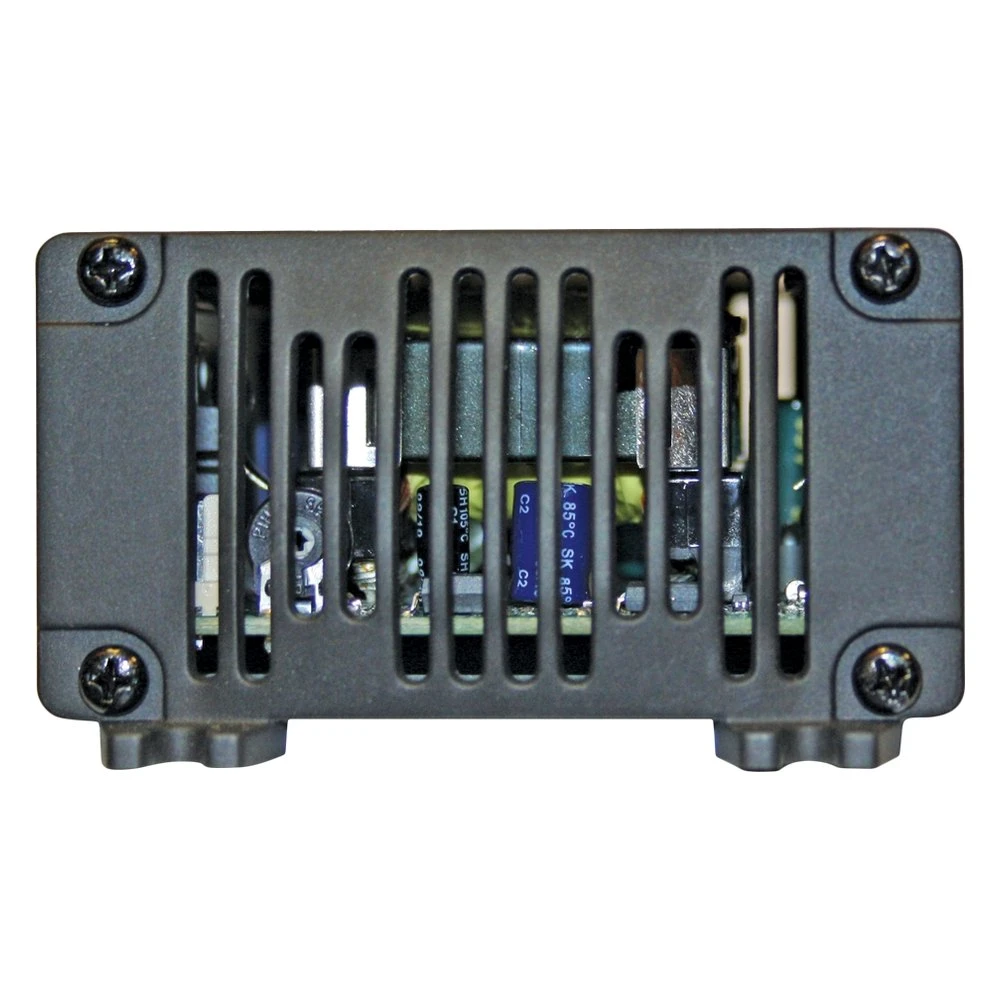

IDC Series 9 – 18 DC to 12.5 DC 8A Isolated Step Down Converter (IDC-100A-12) by Samlex®. DC-DC converters are designed to incerase or decrease the DC voltage that is input to the converter.
Specifications:
| Converting Type: DC/DC |
| Input Voltage (VDC): 9 – 18 DC |
| Output Voltage (VDC): 12.5 DC |
| Output Amperage: 8A |
| Mount Type: Surface Mount |
| Size: 6.0″L x 3.5″W x 1.9″D |
Features:
- Completely Isolated
- Short Circuit Protected
- Current Limiting circuit
Applications:
- Earth moving equipment
- Heavy trucks
- Buses
- Marine vehicles
- CB radios
- 12V lighting systems
- AM/FM sound systems
IDC-100 series is a complete line of high efficiency 100 Watt isolated DC-DC converters suitable for applications requiring galvanic isolation between the input and the output. IDC-100A-12 isolated DC-DC converter provides a highly regulated output DC voltage of 12.5 Volts for an input DC voltage range of 9-18 Volts and rated output current of 8 Amps (at 18 Volts input). Features of this isolated DC-DC converter include compact housing, fold-back current limiting and protection against short circuit, overheating, overvoltage and reverse polarity connection. The unit comes with ¼” push-on flat blade “quick disconnect” connectors. IDC-100A-12 isolated DC-DC converter is EMI/EMC compliant and conforms to European standards EN50081-1 (for EMI), EN50082-1 (for EMC) and the European Automotive Directive 95/54/CE.
Samlex America, Inc was incorporated in 1991. Manufactures and distributes power conversion products to customers around the globe. Synonymous with providing quality products at competitive prices and supported by the best customer service in the industry. OEM, custom design and private label services offered as well as specialized component manufacturing factories and assembly facilities located in Europe, Asia and North America. Major markets of communications, electronics and alternative energy supported by extensive distributor network.
