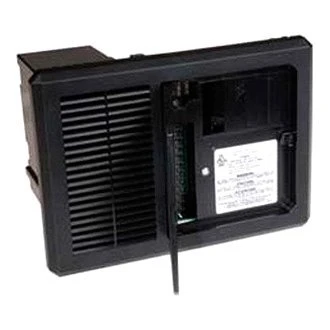

Inteli-Power™ 4000 Series 1030W Power Center with 7 AC/10 DC Branches by Progressive Dynamics®. Industry’s smallest all-in-one 45 or 60 Amp distribution panel/converter system. Available with exclusive built-in Inteli-Power Converter…”The most reliable converter in the RV industry”. The converter section is easily accessible from the front.
Specifications:
| Amperage: 60A |
| AC Circuits: 7 AC |
| DC Circuits: 10 DC Branches |
| Output Power: 1030W |
| Protection Types: Reverse Polarity, Over Current, Cooling System, Over Voltage, Over Temperature |
| AC Distribution Specs: Rating 120 VAC/30AS 120 VAC/30AS; Breakers Max. 30A Main… Up to 7 Branch Circuits |
| Back Up Thermal Protection: Yes |
| Charge Wizard: Yes |
| Color: Black |
| Cooling Fan: Auto-variable speed |
| Cutout Size: 10.75″W x 7.25″H |
| DC Distribution Specs: DC Fuse Positions 2 @ 30A max. each 10 @ 20A max. each 2 @ 30A max. each 10 @ 20A max. each |
| Efficiency (Typical): more 80% |
| Electronic Current Limiting: Yes |
| Full Load Output Voltage: > 12.6 VDC |
| Input Current at Rated Power: around 11.4A |
| Input Voltage Frequency: 50-60Hz |
| Input Voltage Tolerance: 105 – 130 VAC |
| Maximum Continuous Input Power: 1000W |
| No Load DC Output Voltage: 13.6 VDC |
| No Load Voltage Tolerance: +/- .3 VDC |
| Operating Temperature: 0-50°C |
| Over Voltage: Yes |
| Peak Inrush Current: 47A |
| Reverse Battery Protection: Yes |
| Reverse Polarity LED: Yes |
| Ripple and Noise Voltage: 50 MV RMS |
| Size: 12.28″W x 8.875″H x 7.25″D |
| Storage Temperature: -20-80C |
| Under Voltage Protection: Yes |
| Weight: 6.7 lb |
Features:
- Compact & lightweight
- Reverse battery protection with easy to replace fuses
- Electronic current limiting
- High and low AC input protection
- Intelligent, variable speed, cooling fan
- Automatic thermal protection
- Front access to large wiring compartment
- Snap-lock cover stays shut while traveling – opens with a touch
- Attractive lightweight panel design made from black impact-resistant high temperature polymers
- AC Distribution Panel rated for 120 VAC @ 30 AMPS
- Accepts up to 7 branch circuit breakers
- AC Panel features built-in push and lock strain relief wiring connectors for quick installation
- Converter/Charger section is accessible from the front.
- The DC section has 12 branch fuse holders, two wired to accommodate 30 Amp fuses, ten more with a maximum rating up to 20 Amps each. All wire tail connections.
- Reverse Polarity LED, an industry first, indicates blown fuses, a leading cause of perceived converter failure
- No more guessing. Replace the fuses and the converter is immediately operational
- The 45 AMP Mighty Mini has twelve DC fuse positions
- The Inteli-Power™ 4000 Series Mighty Mini is pre-wired for easy installation
Designed with precision and functionality in mind, this accessory ensures outstanding performance and easy use which makes it the perfect deal for your ultimate satisfaction.
Progressive Dynamics® is a privately owned corporation, established in Marshall Michigan in 1964. Its initial product was a high-quality LP gas regulator manufactured for use in recreational vehicle heating and cooking systems. Since 1968, PDI has been producing power converters and battery charging systems for the RV industry. In 1969, the company introduced its first series of 12-volt interior lighting products the PD760 Series. Since that time PDI has introduced several series of interior lighting products designed for both the RV and marine industries.
