Product Details

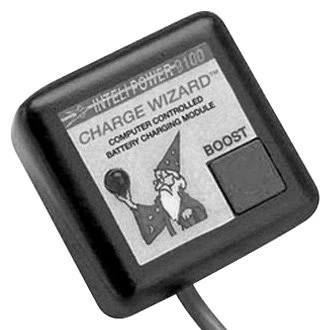

9200 Series™ 12V Battery Charger Controller by Progressive Dynamics®. The Charge Wizard PD9105 is also available as a pendant. This allows easy field upgrade to your PD9100 series deck mount converter/charger by simply plugging the pendant into the built-in TCMS® connector located just above the fuses on the output panel. The Charge Wizard is a microprocessor-controlled unit that constantly monitors the RV battery voltage and then selects one of three charging voltages and one of four operating modes to properly re-charge and maintain the RV battery. The addition of the Charge Wizard makes your 9100 Series converter an intelligent battery charger that will safely and rapidly recharge a discharged battery by selecting the BOOST Mode (14.4V) of operation.
Notes:
- For Lead-Acid and AGM type Batteries.
Specifications:
| Voltage: 12V |
| Cable: 5′ |
| Dimensions: 2″ x 2″ x 0.75″ |
Features:
- Four operating modes
- Exclusive Equalization Mode
- Reduces battery sulfation (the #1 cause of battery failure)
- Extends battery life (and saves you money)
- Reduces battery maintenance
- Faster charging cycles
- Fully automatic operation with manual override
Once the battery reaches 90% of full charge, the Charge Wizardautomatically selects the NORMAL Mode (13.6V) to safely complete the charge. The STORAGE Mode (13.2V) is automatically selected after 30 hours of non-use of the 12-volt RV electrical systems. The lower charging voltage in the STORAGE Mode of operation reduces battery gassing and water usage, while maintaining the charge. Every 21 hours when the system is operating in the STORAGE Mode, the Charge Wizard will automatically switch to the EQUALIZATION Mode of operation. The EQUALIZATION Mode increases the charging voltage up to 14.4 volts for 15 minutes. This increased voltage mixes up the battery electrolyte and prevents battery stratification and the resulting problems of battery sulfation.
Progressive Dynamics® is a privately owned corporation, established in Marshall Michigan in 1964. Its initial product was a high-quality LP gas regulator manufactured for use in recreational vehicle heating and cooking systems. Since 1968, PDI has been producing power converters and battery charging systems for the RV industry. In 1969, the company introduced its first series of 12-volt interior lighting products the PD760 Series. Since that time PDI has introduced several series of interior lighting products designed for both the RV and marine industries.
