Product Details

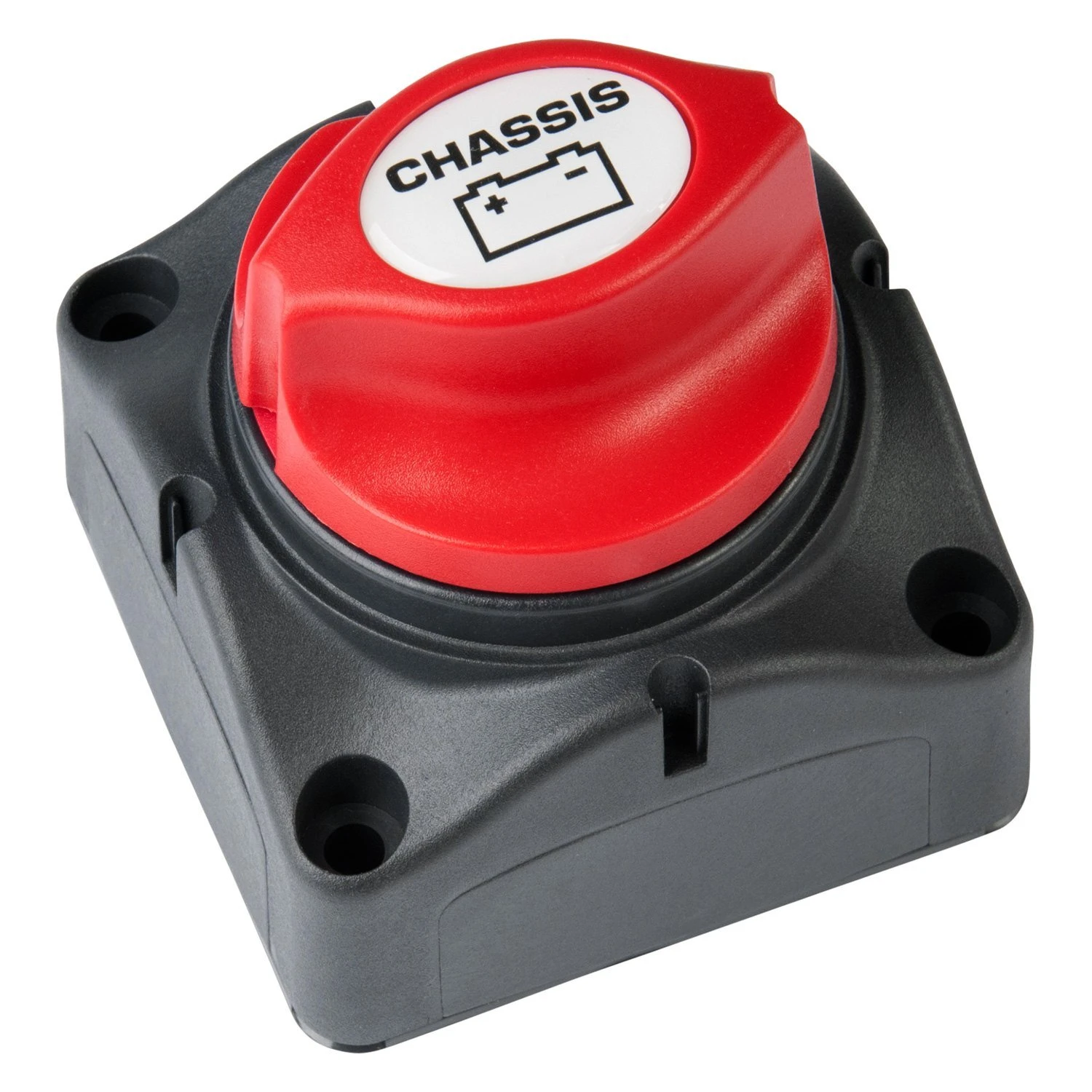

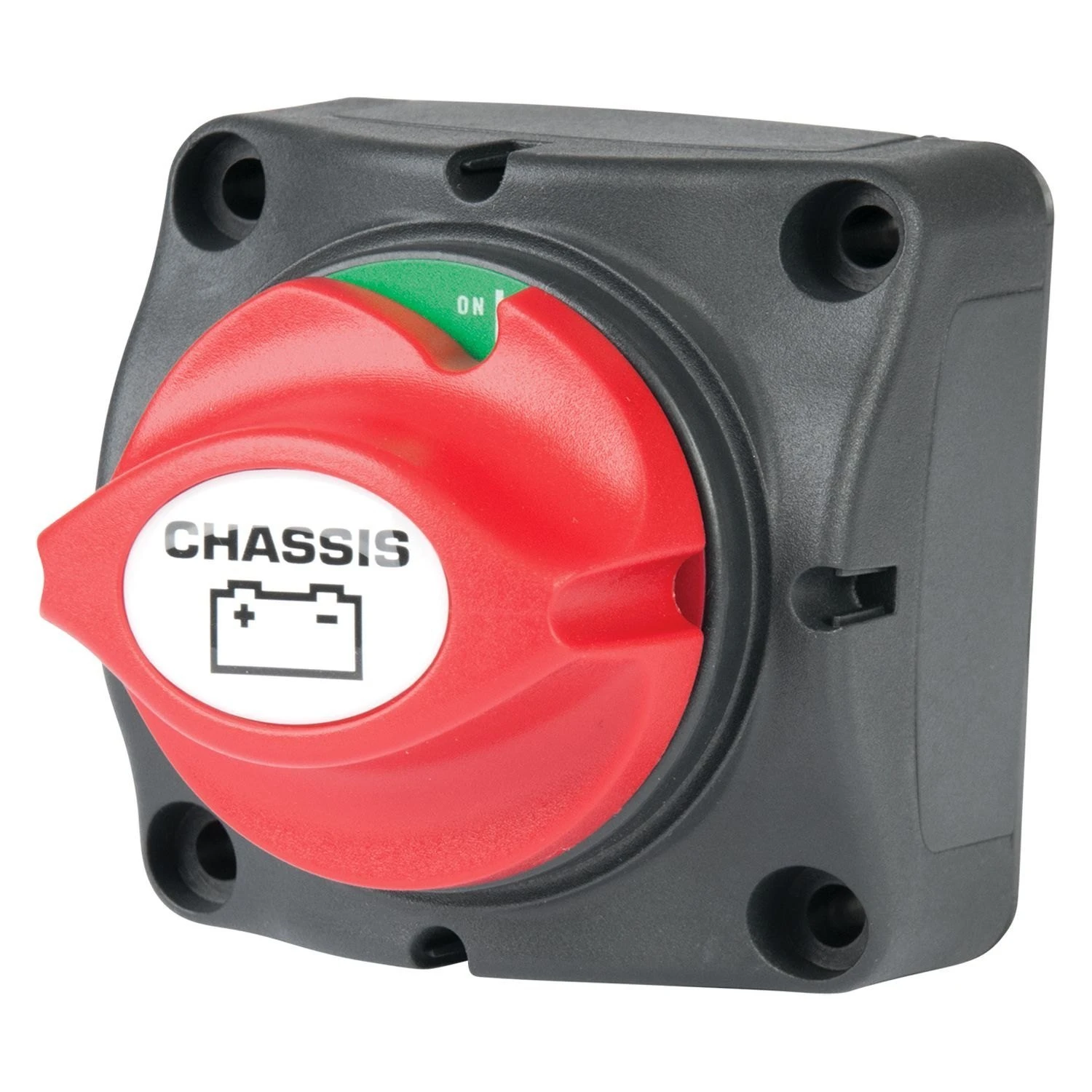

Chassis Series 275A Remote Electric Battery Disconnect Switch by ParkPower®. Unique to the Contour Battery Master Switch is the patented contour lock system which allows the switches to be used as stand alone units or locked together with other switches. The 701RV features a control knob which cannot be removed while in the ON or OFF position, but it can be removed by switching to an anti-clockwise 45 deg position. The 701RV also features removable side plates on 4 sides for access of up to 1/0 cables plus a rear cover insulating the rear terminals against any short circuits.
Notes:
- RoHS (Restriction of Hazardous Substances Directive) Compliant.
Specifications:
| Continuous Ampere Rating: 275A |
| Surge Ampere Rating: 1250A |
| Intermittent Rating: 455A DC |
| Voltage Rating: 48V DC |
| Operation: On/Off |
| Mount: Recessed or Surface |
| Ignition Protected: Yes |
| Termination Stud Size: 3/8″ (2 x 10 mm) |
| Dimensions: 2.75″L x 2.75″W x 3″H (69 x 69 x 75 mm H) |
Features:
- Tin plated copper studs and nuts
- Built to match your exact requirements
- High quality you can rely on
- Expertly made from premium materials
At ParkPower®, make it easier to connect with AC and DC Power. ParkPower detachable cordsets make connecting with RV electrical hook-ups easier, simpler and even waterproof. ParkPower adapters solve power compatibility problems. When it’s time to move on, simply unplug, coil up the cord and stow it with no more hassles with cord stuffing and storing that makes hard work out of an easy task. ParkPower also offer RV electrical accessories for the “do-it-yourselfer” including RV electrical wire, connectors, fuses, cable ties and heat shrink products and battery switches designed to provide long lasting and reliable electrical connections.
