Product Details

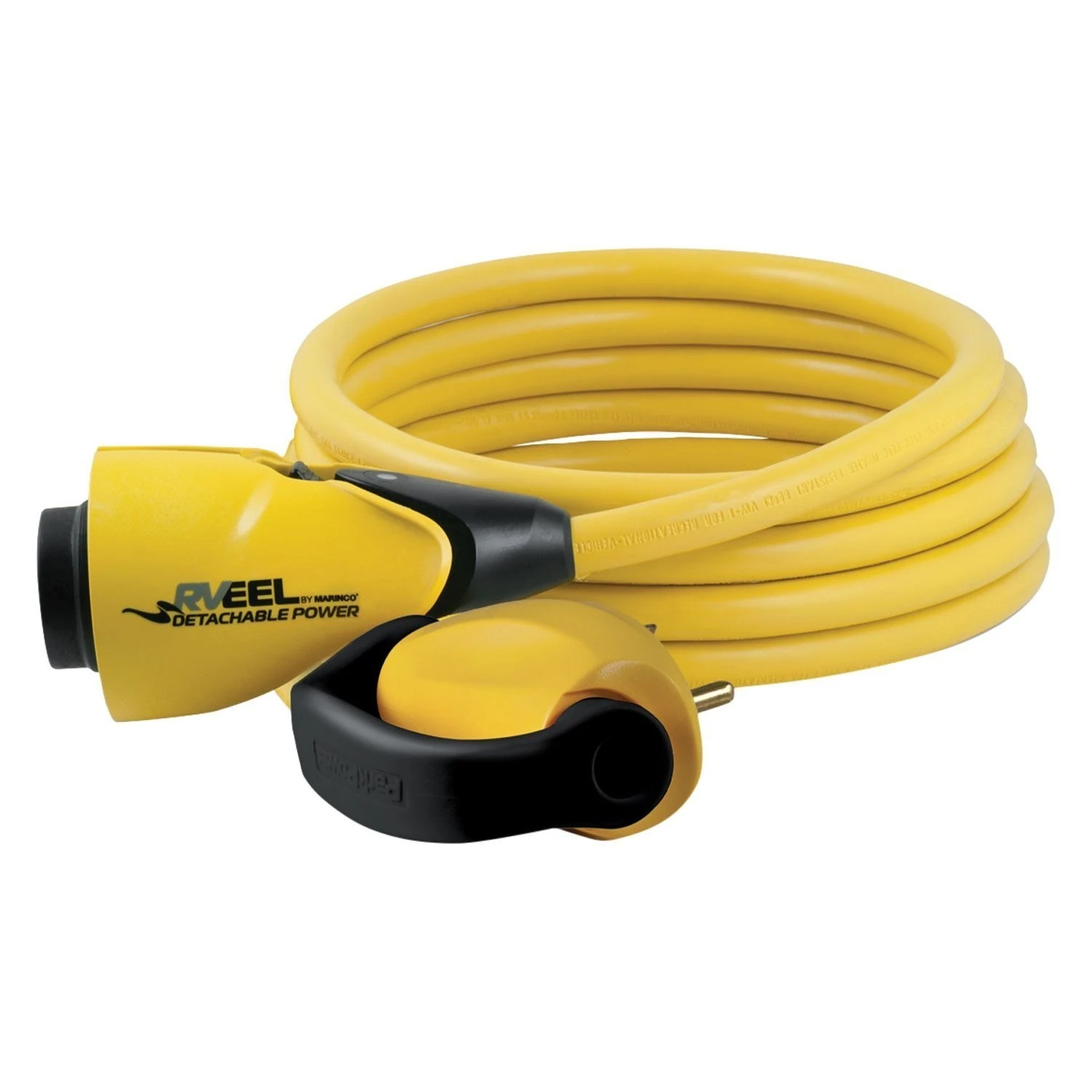

25′ Extension Power Cord with Handle Grip (30A Male x 30A Female) by ParkPower®. The RV EEL (Easily Engaged Lock) Detachable Cordset has a patented, industry 1st, jaw-clamp design providing one-handed operation and a secure waterproof seal which completely eliminates the need for a locking ring. The RV EEL connection is built for the harshest environments and is UL approved. Best of all, it works with your current inlet. On the plug end of the cord, ParkPower has added a large grip handle, that provides a safe connection and is movable so the electrical box can be closed. In addition to cordsets with the RV EEL System by ParkPower also has a full set of pigtail adapters all using the new RV EEL technology.
Notes:
- Attaches to RV inlet or cordset
- RoHS (Restriction of Hazardous Substances Directive) Compliant
Specifications:
| Cable Color: Yellow |
| Cord Length: 25′ |
| Plug Type: Handle Grip |
| Inlet Amperage: 30A |
| Inlet Connection Type: Straight |
| Inlet Type: Male |
| Outlet Amperage: 30A |
| Outlet Connection Type: Straight |
| Outlet Type: Female |
| Conductors: 3 |
| Handle: With Swivel Handle |
| Plug Form: 90° Angled |
| Voltage: 125 V |
| Wire Gauge: 10 AWG |
Features:
- Easier to insert and remove electrical plug
- Keeps hand away from dangerous high voltage contacts
- Large Grip Swivel handle allows box cover to close
- Secondary lock for added security
- Water-tight seal
One Hand. A simple twist. Full Power. The RV EEL (Easily Engaged Lock) Detachable Cordset has a patented, industry 1st, jaw-clamp design that provides one-handed operation and a secure waterproof seal, eliminating the need for a locking ring. Built for the harshest environments, the RV EEL connection is UL listed. Best of all, it works with your current inlet. The plug end of the cord features a large grip handle that provides a safe connection and is movable so the electrical box can be closed. In addition to cordsets with RV EEL technology, ParkPower® also offers a full range of pigtail adapters featuring the new RV EEL technology.
RV Connection End
- EEL Jaw clamp technology-Eliminates locking ring
- LED power indicator
- 2ndary lock for added security
- Cord light
- Water-tight seal
- Works with your current inlet
Power Connection End
- Large Grip Swivel handle allows box cover to close
- Keeps hand away from dangerous high voltage contacts
- Easier to insert and remove electrical plug
- Meets and exceeds rigorous UL testing standards
- 30 Amp and 50 Amp cordset models in 25′ lengths
- RV EEL product line includes connectors, pigtail and straight adapters
At ParkPower®, make it easier to connect with AC and DC Power. ParkPower detachable cordsets make connecting with RV electrical hook-ups easier, simpler and even waterproof. ParkPower adapters solve power compatibility problems. When it’s time to move on, simply unplug, coil up the cord and stow it with no more hassles with cord stuffing and storing that makes hard work out of an easy task. ParkPower also offer RV electrical accessories for the “do-it-yourselfer” including RV electrical wire, connectors, fuses, cable ties and heat shrink products and battery switches designed to provide long lasting and reliable electrical connections.
