Product Details
12 V 6-Step Sealed Solar Battery Saving Charger and Maintainer with 80 W Solar Panel (TM523-8) by OptiMate®. OptiMate Solar 80W, the smartest sun powered 24-7 charger and maintainer for guaranteed 12V power during your off-grid adventure or RV trip – Charger by day, monitor by night.
Specifications:
| DC Voltage: 12 V |
| Charging Amps: 6.66 A |
| Power: 80 W |
| Outer dimension, including corner mount brackets: Width = 68.5 cm/27 “; Height = 78.1 cm/30-3/4″; Depth = 3.3 cm/1-1/4” |
| Solar Panel VOLTS: 12V nominal, 22V maximum |
| Solar Panel USE: Outdoor |
| Solar Panel STYLE: Weatherproof, aluminium frame with 4 x mounting brackets, output cable 200cm / 80″ with SAE connector |
| Charge-Monitor controller CHARGING A: 6.67A from 80W panel (max. average current), 3-5A pulse current |
| Charge-Monitor controller USE: Indoor/Outdoor (lowest temperature: -4°F / -20°C) |
| Charge-Monitor controller Save: Low V Start of 1V |
| Charge-Monitor controller IDEAL FOR: STD, AGM & GEL 12V batteries from 2 – 240Ah |
| Charge-Monitor controller Input: 15 – 22V |
| Charge-Monitor controller STYLE: Weatherproof charge controller case |
| Included: Weatherproof battery lead, standard battery clip set & 80W solar panel |
| Safe: No risk of overcharging. Totally safe for vehicle electronics. Sparks suppressed. Safe for long-term battery maintenance. Automatic shut-down if short-circuited or battery disconnected |
| Warranty: 3-year limited replacement warranty |
Features:
- Smart fully sealed charge controller converts solar power and delivers max. 6.66A in full sun OR power pulses in cloudy weather, to your 12V lead-acid (STD, AGM, GEL) starter or deep cycle battery

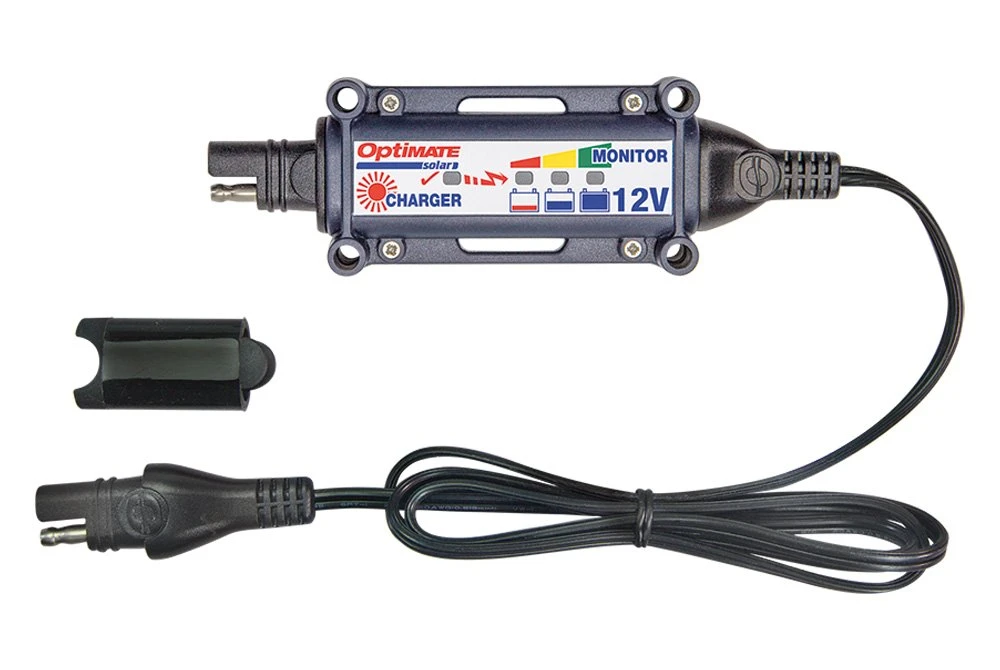

- Controller’s ‘night’ monitor mode indicates battery’s state of charge on a 3 LED panel – Status of your battery is available night and day
- Wide spectrum weatherproof polycrystaline panel with corner mounts – Works in any weather
- Unique pulse save mode recovers ‘dead flat’ sulphated batteries from as low as 1V – The most advanced solar recovery program
- OptiMate Solar smart pulse maintenance guarantees more battery power, longer battery life

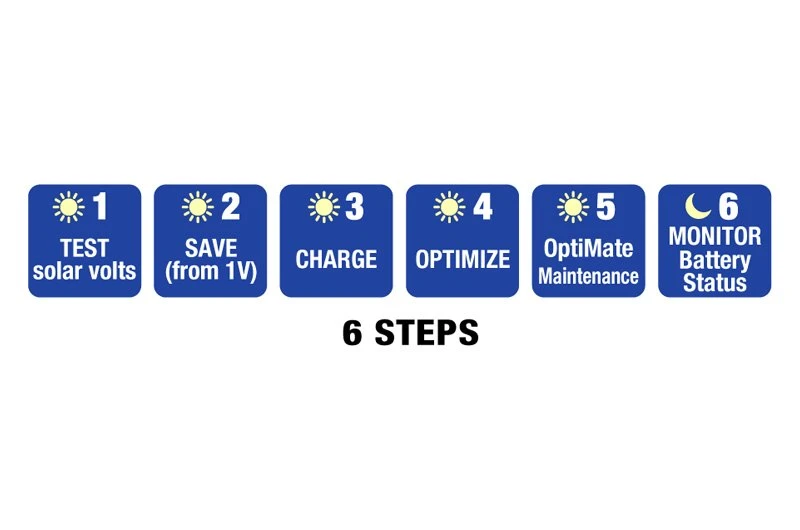

CHARGE
Saves flat batteries from as low as 1V with its unique pulse action
Fastest charge is delivered as ‘smart charge’ control selects pulse or continuous charge according to sunlight strength
Intelligent maintenance continues the next day if battery retained charge overnight, otherwise the program reverts to OPTIMIZE step
MONITOR
Battery condition is displayed every 3 seconds. Ready indication for STD and hi-performance AGM batteries. Draws less than 0.5mA during monitor mode
Automatically switches to CHARGE when solar power is sufficient
MOUNTING

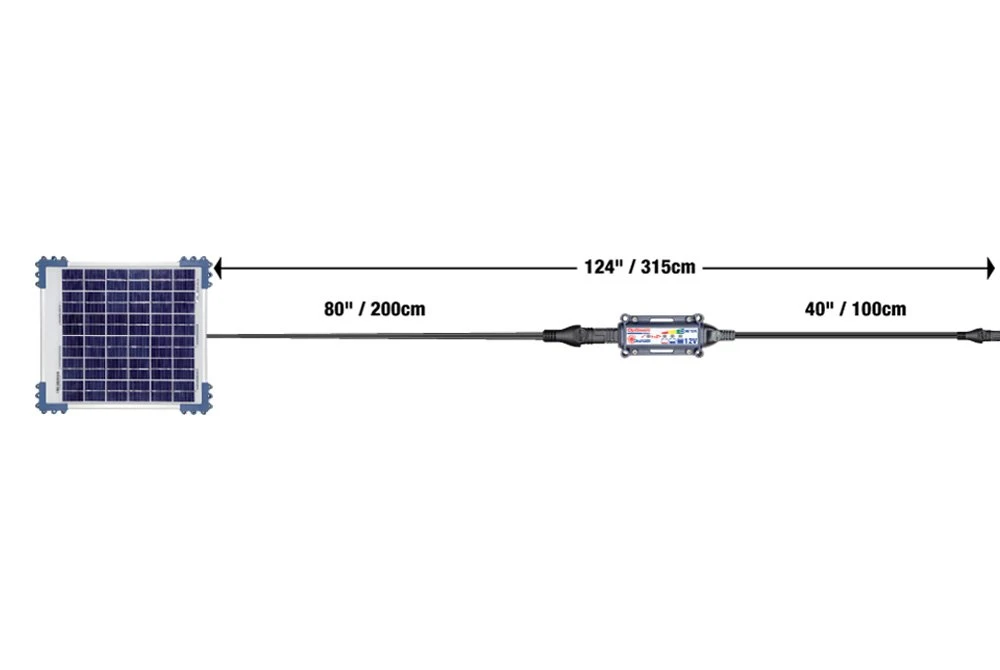

The OptiMate charger-monitor controller is separate to the solar panel and can be placed close to the vehicle or battery so that charge and maintenance progress can be easily followed. The solar panel must be mounted and angled to receive direct sunlight. The reach / distance between battery and panel is 315cm / 124″. To extend, use OptiMate Cable Extenders O-03, O-13 or O-23 and insert between the solar panel and the OptiMate charge-monitor controller.
Since 1994, OptiMate® high performance battery chargers have been saving batteries other chargers can’t, then improving performance and extending life of AGM, GEL & STD lead-acid and LiFePO4 lithium batteries in power sport / motorcycle, automotive, motorsport, light aircraft and deep cycle applications world-wide. And they save OptiMate owners money – OptiMate’s energy saving, plug-in-anywhere (100-240V) electronics deliver more charge for less. If AC power is a problem, they have SOLAR and DC charging options too!
