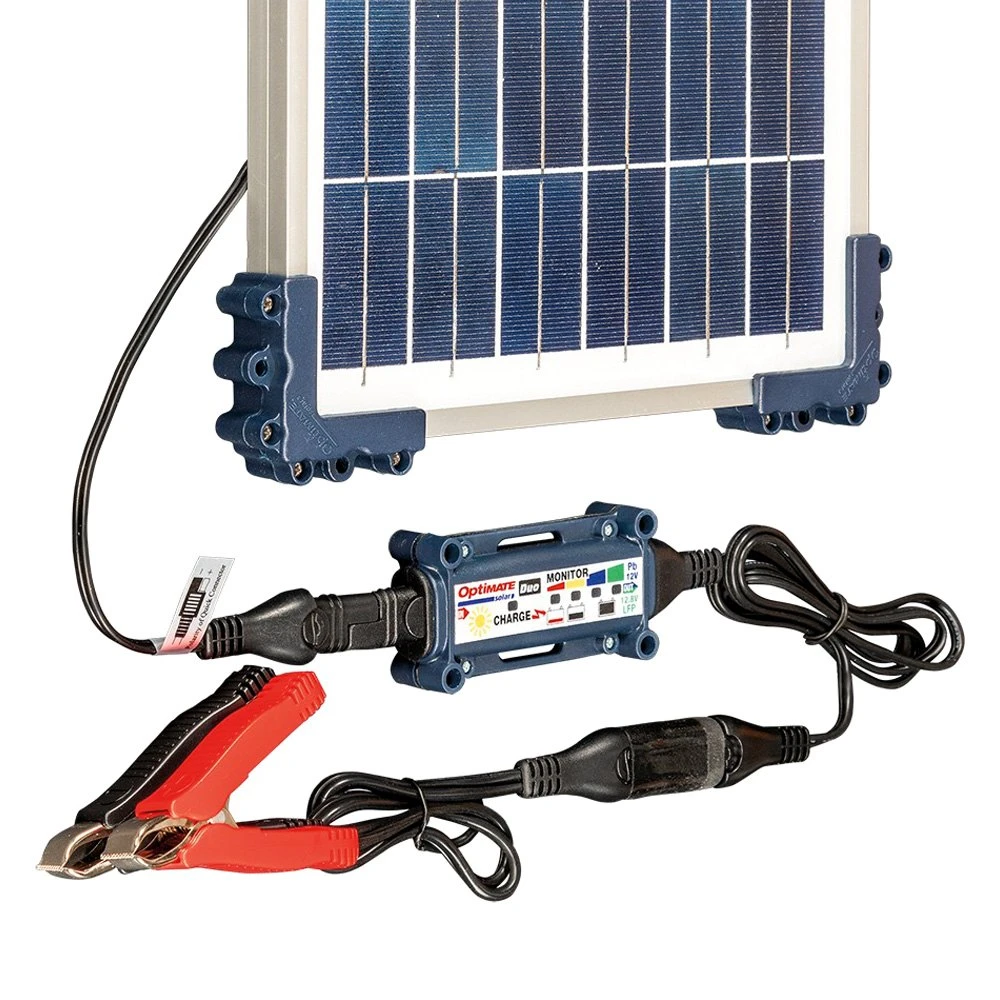

Solar DUO™ 12 V/12.8 V Smart Sun Powered Charger and Maintainer with 10 W Solar Panel (TM522-D1) by OptiMate®. The OptiMate DUO charger-monitor controller is separate to the solar panel and can be placed close to the vehicle or battery so that charge and maintenance progress can be easily followed. The solar panel must be mounted and angled to receive direct sunlight. The reach / distance between battery and panel is 315cm / 124?. To extend, use OptiMate Cable Extenders O-03, O-13 or O-23 and insert between the solar panel and the OptiMate DUO charge-monitor controller. Saves flat batteries from as low as 4V with its unique pulse action. Fastest charge is delivered as ‘smart charge’ control selects pulse or continuous charge according to sunlight strength. Intelligent maintenance continues the next day if battery retained charge overnight, otherwise the program reverts to OPTIMIZE step. Battery condition is displayed every 3 seconds. Ready indication for STD, hi-performance AGM and lithium LFP batteries. Draws less than 0.5mA during monitor mode. Automatically switches to CHARGE when solar power is sufficient.
Specifications:
| DC Voltage: 12 V/12.8 V |
| Charging Amps: 0.83 A from 10W panel (max. average current), 3-5A pulse current |
| Power: 10 W |
| Application: STD, AGM & GEL 12V batteries from 2 – 240Ah and Lithium LFP 12.8V / 13.2V batteries |
| INPUT: 15 – 22V |
| STYLE: Weatherproof charge controller case |
| INCLUDED: Weatherproof battery lead, standard battery clip set & 10W solar panel |
| SAFE: No risk of overcharging. Totally safe for vehicle electronics. Sparks suppressed. Safe for long-term battery maintenance. Automatic shut-down if short-circuited or battery disconnected |
| USE: Outdoor |
| STYLE: Weatherproof – polycrystalline, aluminium frame with 4 x mounting brackets, output cable 200cm / 80″ with SAE connector |
Features:
- Designed to help to get your job done right
- Manufactured utilizing the highest quality materials
- Built to provide exceptional levels of durability
Includes:
- Weatherproof battery lead, standard battery clip set, 10W solar panel & OptiMate Solar DUO controller
Since 1994, OptiMate® high performance battery chargers have been saving batteries other chargers can’t, then improving performance and extending life of AGM, GEL & STD lead-acid and LiFePO4 lithium batteries in power sport / motorcycle, automotive, motorsport, light aircraft and deep cycle applications world-wide. And they save OptiMate owners money – OptiMate’s energy saving, plug-in-anywhere (100-240V) electronics deliver more charge for less. If AC power is a problem, they have SOLAR and DC charging options too!
