Product Details

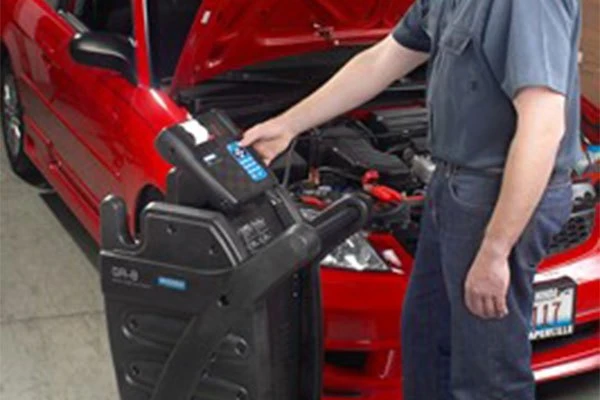

GR8 Series™ 12 V Wheeled Battery Charger and Electrical Diagnostic Station by Midtronics®. Midtronics Battery and Electrical Diagnostic Station come with an innovative multitasking bridge that allows the user to charge one battery while diagnosing batteries and electrical systems on other vehicles. The result: greater value and productivity.
Specifications:
| AC Voltage: 110 V, 60 Hz, 15 A dedicated circuit |
| DC Voltage: 12 V |
| Cranking Amps: 245 A |
| Charging Amps: 0 to 60 A |
| Peak Amps: 80 A |
| Weight: 49.5 lbs |
| Battery Test Cables: 10′ quick connect removable cables with Kelvin clamps |
| Charger Cables: 6′ quick-connect removable cables with heavy-duty Kelvin charge clamps |
| Display: 128 x 64 pixel Graphics, Backlit Display |
| Charging Voltage: Up to 17 V, 0.1 V resolution |
| Temperature Measurement: Controller IR Sensor: -20°F to 200°F; Charger Clamp Sensor: -20°F to 200°F |
| Languages: English, Spanish, French Canadian |
| Battery Test Range: 100 to 3000 CCA 100-1000 A (DIN); 100 to 3000 CA 100-3000 A (SAE); 100 to 3000 MCA 100-1000 A (IEC); JIS by Number 100 to 3000 A (EN) |
Features:
- Designed to help to get your job done right
- Manufactured utilizing the highest quality materials
- Built to provide exceptional levels of durability
Includes:

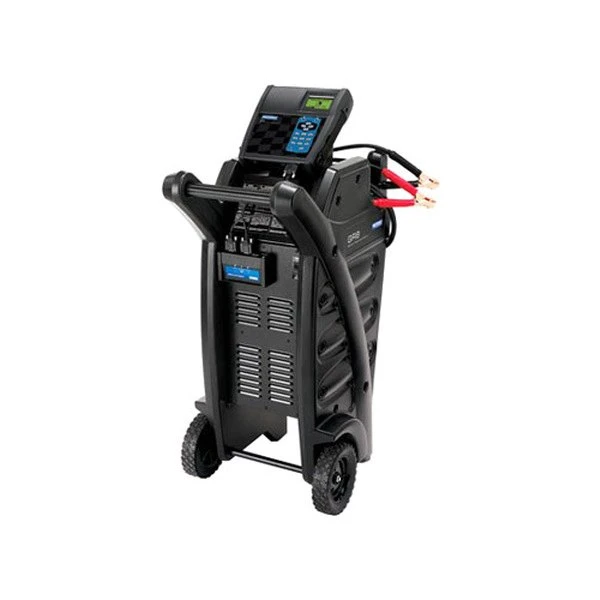

- (1) GR8 Diagnostic Charger with Built-in Cart

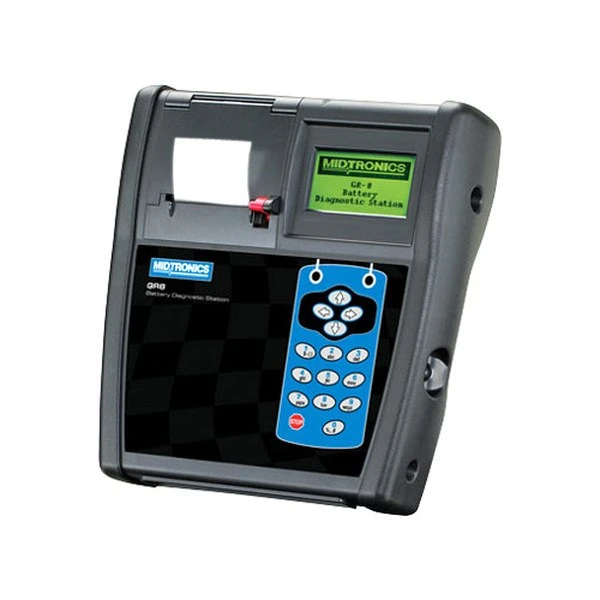

- (1) Removable Controller
- (1) Wireless Multi-Tasking Unit
- (1) Two Serial Cables, 6′ Charging Cables
- (1) 10′ Test Cables
- (1) Clamp
- (1) Lead Stud Adapters
Focused entirely on Advancing Battery Management, Midtronics® is a vibrant and successful company with a passionate leadership team. Our impressive growth in worldwide transportation and stationary power markets is rooted in the innovative spirit and dedication of all employees. The Midtronics team is held to high standards in personal integrity, responsiveness and professional excellence. At Midtronics, we pride ourselves on the quality of our products and services, the depth of our experience, and the expertise of our engineering and product development teams. Midtronics is committed to working with our customers around the world to develop superior battery management solutions designed to address their unique needs.
