Product Details

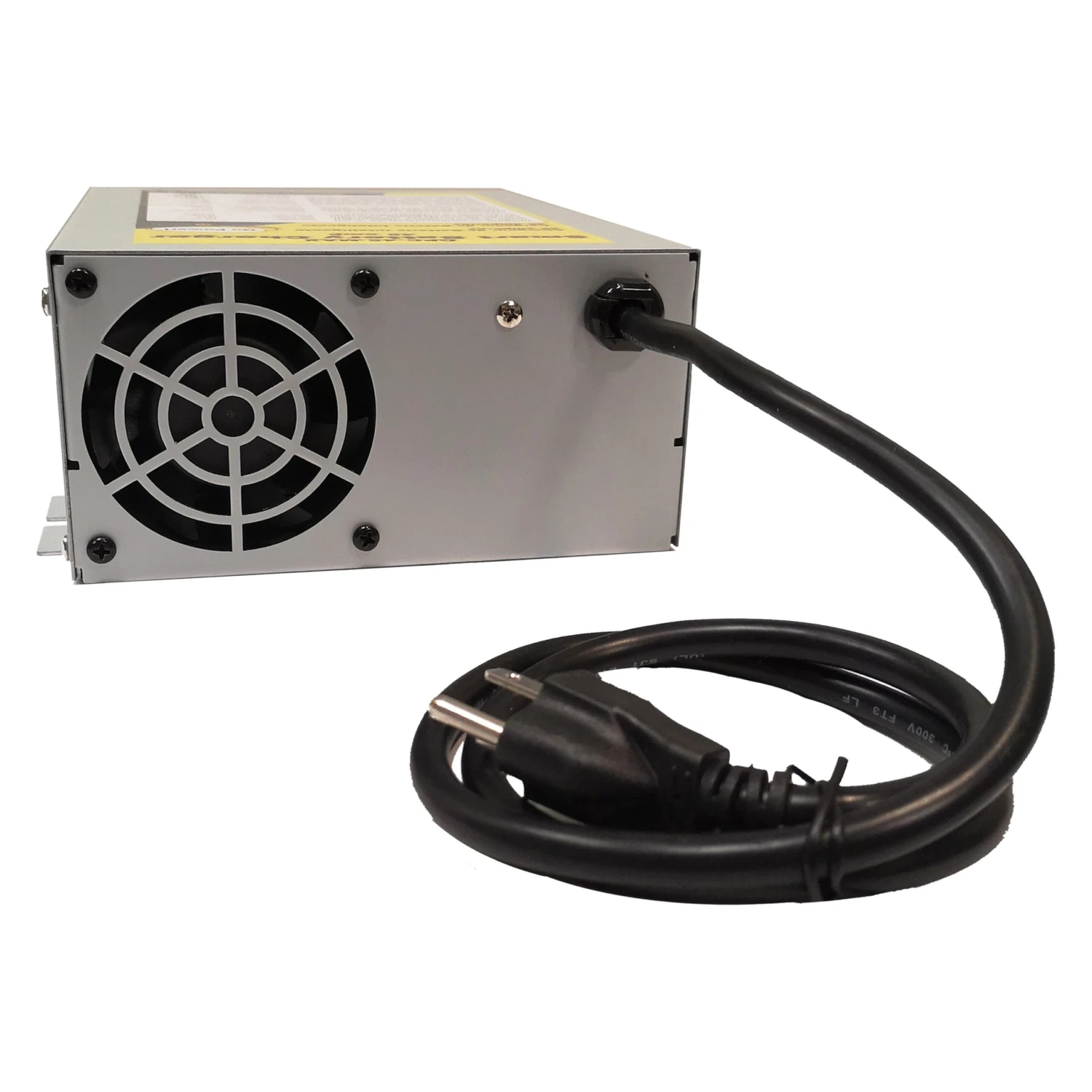

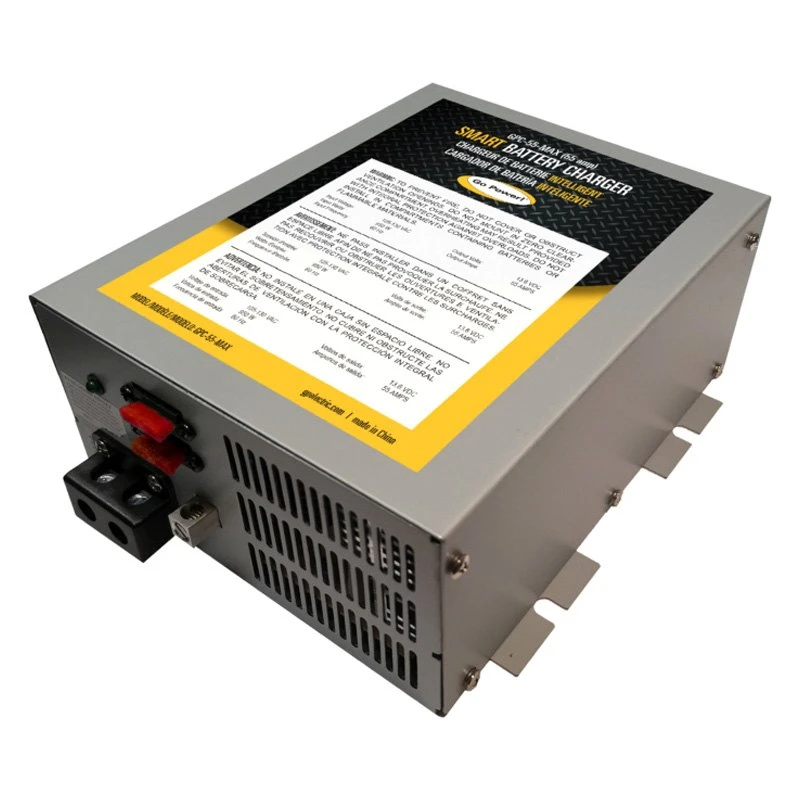

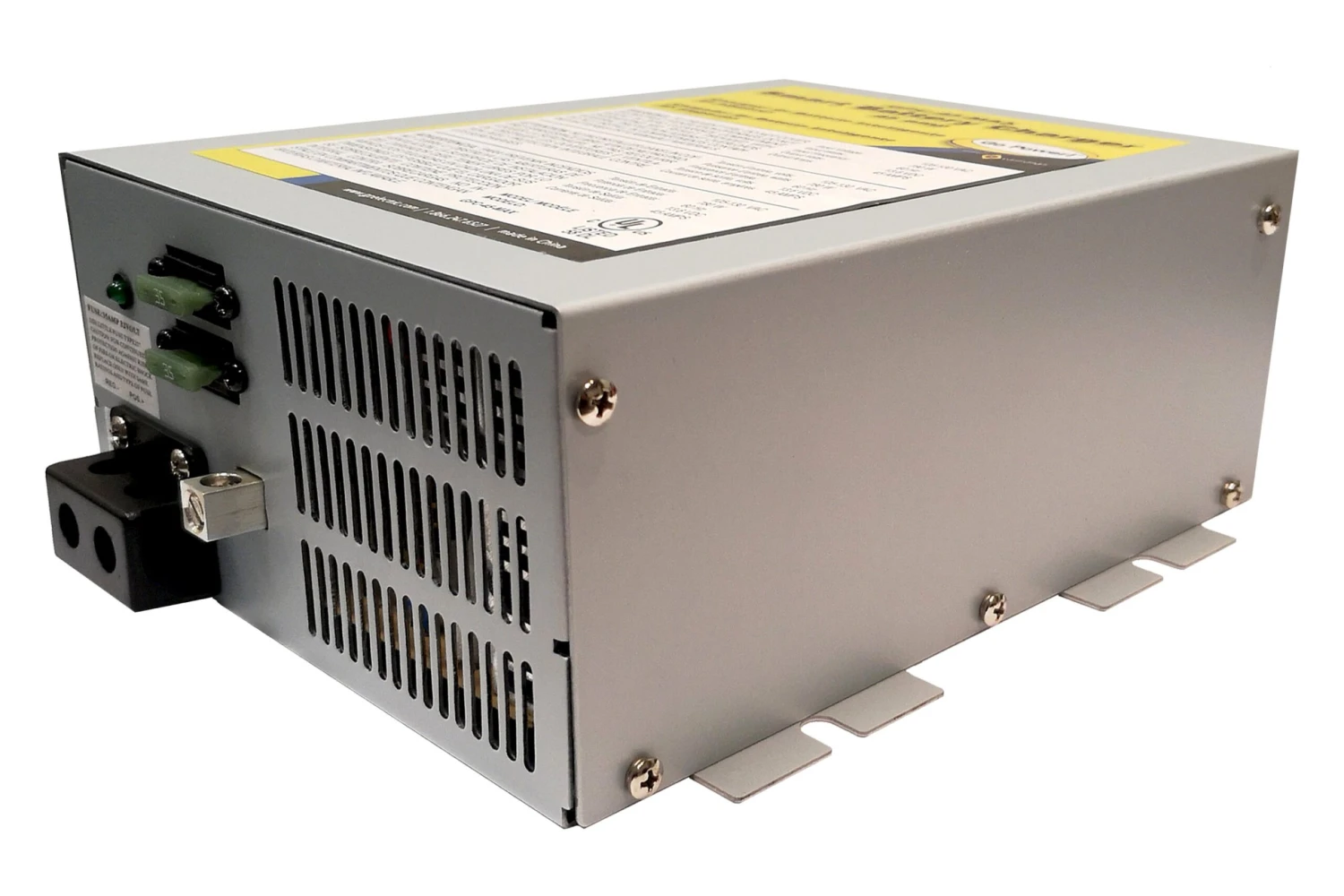

14 V Compact Smart Battery Charger (GPC-75-MAX) by Go Power®. The Go Power! 10A Smart Charger is designed specifically to extend the life of deep-cycle battery banks. With a unique microprocessor controlled electronic design, the Go Power! Smart Charger offers multi-stage charging to accurately recharge and maintain your battery banks without electrolyte loss.
Specifications:
| AC Voltage: 105 V/135 V, 47-63 Hz |
| DC Voltage: 14 V |
| Charging Amps: 75 A |
| Power: 1065 W |
| Dimensions: 12″ x 9″ x 5″ |
| Weight: 6.5 lb |
| Short Circuit Protection: Yes |
| Fan Control: Proportional |
Features:
- 4 Stage Battery Charging
- Easy Installation
- Fuse Protection
- Thermostatically Controlled Fan
- Lightweight Design
- 2 Year Warranty
The Smart Charger has a high frequency switching mode and is equipped with a micro-controller and a PFC circuit. This design allows this Battery Charger to perform with intelligent battery management and reliable operation. The Smart Charger features a three stage charging process that provides more sophisticated and faster charging than conventional transformer type chargers.
The charging stages are:
Bulk Stage: Constant current charging at a high voltage level at maximum amperage
Absorption Stage: Tapering current for the last 10-20% of charge
Float Stage: Lower voltage float mode to prevent electrolyte loss
It also features an LED display, reporting charging state, short circuit protection and over-temperature protection. The high efficiency electronic design makes the GPSC-12-10A the ideal choice for use with generators and for backup charger applications.
As one of the most trusted names in solar technology, Go Power® has earned a reputation for delivering strong and effective products for industrial applications worldwide. Industry proven to perform reliably in some of the world’s harshest environments, Go Power solar LED lights and solar power systems provide a durable, dependable and cost effective energy alternative. Go Power is a publicly traded company, with common shares listed on the Toronto Stock Exchange under the symbol “CMH”. Go Power specializes in self-contained solar LED lighting and solar power solutions within these markets: Outdoor Lighting, Aviation, Obstruction, Marine, Traffic, Solar EPC Services, Go Power! / Mobile.
