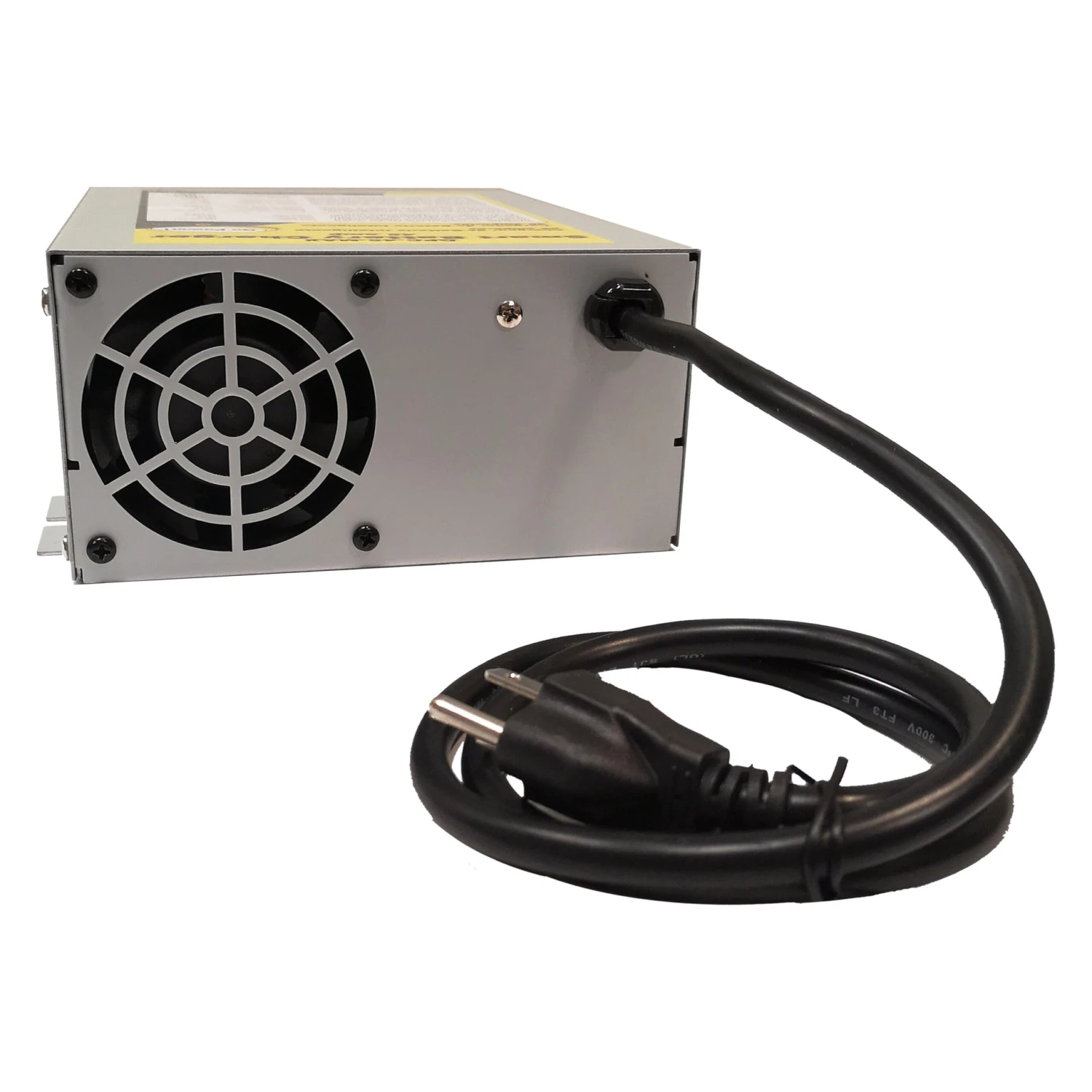

14 V Compact Smart Battery Charger (GPC-55-MAX) by Go Power®. The Go Power! 10A Smart Charger is designed specifically to extend the life of deep-cycle battery banks. With a unique microprocessor controlled electronic design, the Go Power! Smart Charger offers multi-stage charging to accurately recharge and maintain your battery banks without electrolyte loss.
Specifications:
| AC Voltage: 105 V/135 V, 47-63 Hz |
| DC Voltage: 14 V |
| Charging Amps: 55 A |
| Power: 780 W |
| Dimensions: 12″ x 9″ x 5″ |
| Weight: 6.5 lb |
| Short Circuit Protection: Yes |
| Fan Control: Proportional |
Features:
- 4 Stage Battery Charging
- Easy Installation
- Fuse Protection
- Thermostatically Controlled Fan
- Lightweight Design
- 2 Year Warranty
The Smart Charger has a high frequency switching mode and is equipped with a micro-controller and a PFC circuit. This design allows this Battery Charger to perform with intelligent battery management and reliable operation. The Smart Charger features a three stage charging process that provides more sophisticated and faster charging than conventional transformer type chargers.
The charging stages are:
Bulk Stage: Constant current charging at a high voltage level at maximum amperage
Absorption Stage: Tapering current for the last 10-20% of charge
Float Stage: Lower voltage float mode to prevent electrolyte loss
It also features an LED display, reporting charging state, short circuit protection and over-temperature protection. The high efficiency electronic design makes the GPSC-12-10A the ideal choice for use with generators and for backup charger applications.
