Product Details

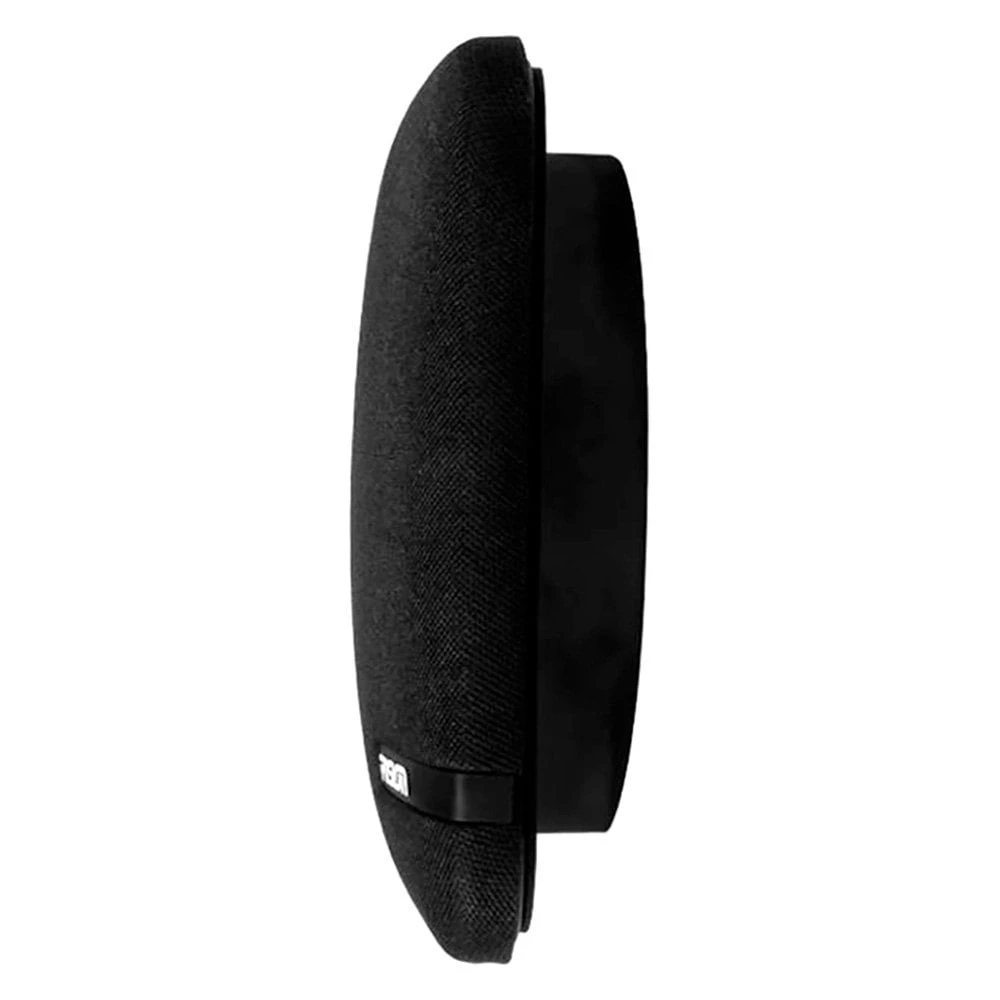

SM Series 100W 2-Way 4-Ohm 6.5″ Black Shallow Mount Square Speakers (010-02263-11) by Fusion®. Introducing the new Fusion SM Series shallow mount speakers, designed for installations where mounting depth is limited without compromizing on sound quality and performance. The SM Series speakers are engineered with a sealed, perfectly-tuned enclosure to deliver quality audio reproduction that normally could not be achieved from the limitations of shallow mounting depths. The SM Series speakers are a stylish addition to your vessel with its clean aesthetics and unique shallow mount form factor.
Specifications:
| Speaker Enclosure Size: 155mm x 155mm [6-1/8″ x 6-1/8″] |
| Peak Power Rating: 100 Watts |
| Driver Size: Tuned and optimized 3″ |
| Efficiency (1W/1M): 84 dB |
| Frequency Response: 150 Hz – 20 kHz |
| Nominal Impedance: 4 Ohms |
| Cone / Surround Material: Polypropylene with rubber surround |
| Mounting Diameter Clearance: 130mm [5-1/8″] |
| Mounting Depth Clearance: 24mm [15/16″] |
| Operating Temperature Range: 0 to 50°C (32 to 122°F) |
| Storage Temperature Range: -20 to 70°C (-4 to 158°F) |
| Water and Dust Resistance (IP rating): IP65 |
| Speaker Dimensions Length x Height x Depth: 155mm x 155mm x 46mm [6-1/8″ x 6-1/8″ x 1-13/16″] |
Features:
- Engineered to high standards
- High-grade design delivers extended lifespan
- Made with premium materials
Shallow Basket Design
With a shallow mounting depth of only 24mm [15/16″], the SM Series speakers are ideal for installation where mounting depth is limited.
Tuned, Sealed Enclosure Design
Protects the speakers’ components from damage and ensures quality audio reproduction is delivered that normally could not be achieved by a speaker with such a shallow design.
Retrofittable
The SM Series speakers have a circular back with a mounting diameter clearance of 130mm [5-1/8″], allowing it to fit easily into existing 6.5″ speaker cutouts.
Aesthetic Interior Design
Designed with aesthetics in mind, the SM Series come with a high-end acoustic fabric grille and feature rounded edges and contour cues to add style to your vessel.
IP65 Weatherproof
The SM Series speakers are rated IP65 for protection against dust and water ingress in the harsh marine environment.
Founded in New Zealand, in 1998, FUSION® is a home-grown company that transformed into a global champion. Its strong passion for automobiles, music, and the surrounding street culture has grown into innovative audio solutions that are now appreciated all over the world. Strength in product design combined with original thinking led to the development of FUSION’s new marine audio product range which complimented the already comprehensive collection of car audio systems. Today, the entertainment systems by FUSION are considered to be the measure of quality thanks to providing their owners natural acoustic excellence.
