Product Details

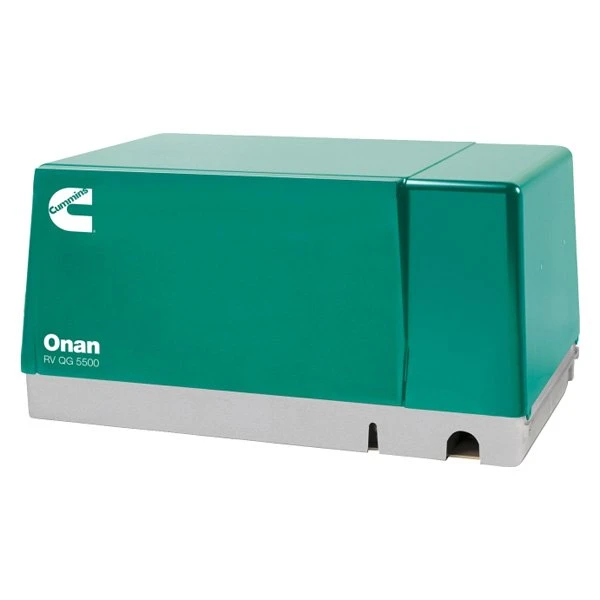

Quiet Gasoline™ 5500W RV Generator with 2 x 30A Circuit Breakers by Cummins®. Quietest in its class. Exceptionally low vibration levels. Integrated design with enclosed muffler for easy installation. Self-diagnostic capability to simplify troubleshooting. Runs one or two air conditioners with power to spare. Digital voltage regulation for stability as appliance loads change.
Notes:
- Evaporative spec: Effective January 1, 2011, gasoline generator sets on trailers, diesel chassis or any other non-motorized mobile apparatus must have an EVAP generator set, approved tank, EVAP canister, hoses and fittings all meeting the CARB Tier 3 and EPA phase 3 standards and specifications. This law applies in all 50 states.
Specifications:
| Fuel: Gasoline |
| Watts: 5500 |
| Voltage: 120 |
| Amps: 45.8 |
| RPM: 2400 |
| Phase: 1 |
| Circuit breaker: (2) 30 A |
| No load average fuel consumption: 0.3 Gal/h (1.1 L/h) |
| Half load average fuel consumption: 0.6 Gal/h (2.3 L/h) |
| Full load average fuel consumption: 0.9 Gal/h (3.6 L/h) |
| Weight: 288 lb (131 kg) |
| Size: 33.6″L (853 mm) x 22.2″W (563 mm) x 16.7″H (425 mm) |
| Sound: 69 dB(A) readings at 10 ft (3 m) half load |
| Packaging: Tubbed |
Features:
- Mechanical governor adjustable from service side
- Cummins Onan OHV engine
- Pressurized Thru Flow cooling system
- 4-point focalized mounting system with vibration isolators
- Universal mounting tray with structural capability to support the generator set in RV applications
- Integral USDA Forest Service-approved spark-arrestor muffler
- Replaceable dry element air cleaner
- Integral control box
- Instant one-touch stop switch
- Automatic choke
- Fuel filter
- Electric fuel pump
- Positive fuel shutoff (3 psi)
- Enclosed muffler
- Sound-attenuated housing
- Remote waterproof connector
- Automotive type starter with automatic start disconnect
- Spin-on, full-flow oil filter
- Low oil pressure protection
- Over/under speed protection
- Low power factor field overcurrent protection
- 120″ (3 m) generator set output leads
- Digital voltage regulation
Cummins® is the brand offering premium-grade high-horsepower engines and power generation equipment including PowerCommand™ standby and prime power systems. The company also provides reliable innovative solutions for filtration, turbo technologies, emission and fuel systems and electronics. All aspects of the generator set design, manufacture and service have been brought together in one company. All the major components – the engine, alternator and control systems – are manufactured by Cummins. This integrated approach means each element of a generating set is matched to work in harmony from the start.
