Product Details
UK Plug 230V European 2500W 12V Power Inverter by AIMS Power®. This 2500 watt 12 volt power inverter by AIMS Power converts DC (direct current) power stored by batteries into AC (alternating current) electricity that can be used to run practically any household appliances or tools. This is a European, UK model 230V. It will not work with AIMS Power 120 volt equipment.
Specifications:
| Continuous output power: 2500 Watts |
| Surge power capability (peak power): 5000 Watts |
| dc input / operating voltage: 10.5 to 17 Volts |
| Output voltage: 230 Volts ac +/- 10% |
| Output wave form: modified sine wave with phase correction |
| Output frequency: 50 Hz +/- 1 Hz |
| Battery low voltage alarm: 10.5 +/- 0.5 Volts |
| Battery low voltage shutdown: 10 +/- 0.5 Volts |
| No load current: less 0.2 Amps |
| Full load efficiency: 90% |
| 1/3 load efficiency: 95% |
| No load minimum operating temperature: -15 degrees Celsius |
| Full load maximum operating temperature: 55 +/- 5 degrees Celsius (automatic shutdown) |
| UK Plug type G 3 prong |
| High input voltage protection: 17 volts |
| Low input voltage shutdown: 10 volts |
| Internal fuse protection |
| Product size (L x W x H): 14.5″X 6.5″X 3.0″ |
| Weight: unit 10 lbs boxed 12 lbs |
Features:
- 2500Watt max continuous power
- 12 Volt Power Inverter
- Modified sine wave

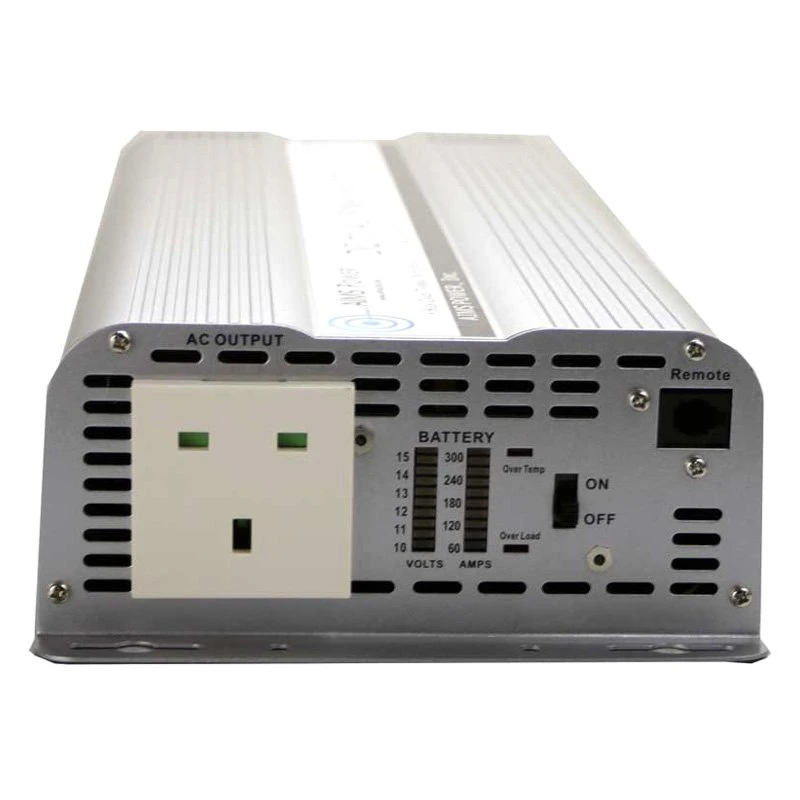

- Volt meter on front panel to monitor your battery voltage
- Amp meter on front panel to monitor your current use (rate at which battery is drained)
- Over Temperature LED indicator
- Over Load LED indicator
- UK Plugs type G 3 prong
- On/off switch
- Over Temperature protection
- Over Load protection Single cooling fan operation thermally controlled Internally fuse protected ac output short circuit protection
- Auto reset on most fault conditions
- Aluminum case for optimal cooling
- Pre-wired for remote on/off switch
- Pre-slotted mounting plate
- Instruction manual
- Free 1 year tech support
- 1 Year Warranty Parts and Labor
2500 Watt Power Inverter UK Plug 230 Volt European with Cables 12 Volt
This unit produces a modified sine wave, which is capable of running most tools, pumps, motors and appliances. Use this product for off-grid back-up power at home, cabin, boat, or anywhere that doesn’t have city power.
If an inverter that produces a pure sine wave is needed, please check out AIMS Power’s pure sine wave options.
What really makes this 2500 watt AIMS Power inverter special is its capability to run off of most vehicles’ and/or RVs’/boats’ standard power systems at 12 volts. That makes the inverter very attractive to mobile business owners since users don’t have to modify a vehicle’s standard power system in order to run the inverter off of a car or truck. This definitely saves some money if upgrading a fleet of vehicles with some aftermarket equipment that requires this much power.
Some of the popular mobile business applications include powering a small mobile office or kitchen, running tools on a work truck or construction vehicle, or supplying electricity to lawn maintenance equipment. The biggest incentives for business owners to use inverters for electricity include the fact that they make little-to-no noise, making for a more peaceful environment for customers, and that they’re non-polluting, which makes for a great green-energy marketing campaign.
The 200 percent surge capabilities of this unit should only be used as a safety feature. Other safety features include over-temperature and over-load LED indicators that are used as a warning system for the operator. Also on the AC side of the unit are the battery voltage and amperage meters which display the usage levels of your battery bank. This inverter is equipped with dual cooling fans and over-temperature protection that keeps it from overheating.
