Product Details
4000W Pure Sine Inverter Charger with ETL Listed to UL 458 Standard (PICOGLF4024240SUL) by AIMS Power®. With 24V DC to 120/240V AC Output. AIMS Power 4000 Watt Pure Sine Low Frequency Inverter split phase with built-in battery charger and transfer switch. This inverter charger is perfect for medium-sized industrial applications that depend upon power being available even under heavy load. This heavy-duty inverter charger is ready to go wherever you need it. Use this product for renewable solar, off-grid, business back up power, mobile and emergency backup power applications anywhere that uses 100/110/120/220/230/240 volts of alternating current. This product also has auto frequency detection that allows users to operate at either 50 or 60 hertz.
Specifications:
| Continuous output power: 4000 Watts |
| Surge rating: 12000 Watts (20 Seconds) |
| Output waveform: Pure Sine/Same as input (Bypass Mode) |
| Output voltage 100-110-120-220-230-240Vac |
| Output breaker: 50 Amps |
| Nominal efficiency: more 88% (Peak) |
| Line mode efficiency: more 95% |
| Output frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz |
| Typical transfer time: 10ms (Max) |
| THD: less 10% DC |
| Ambient operating temperature: 14°F to 122°F (-10°C to 50°C) |
| Input Specifications Charger Specifications |
| Transfer Switch SpecificationsListed to UL 458, 1741, 1012 and CSA 22.2 NO. 107.1 & 107.2 |
| Nominal input voltage: 24.0Vdc |
| Minimum start voltage: 20.0Vdc |
| Low battery alarm: 21.0Vdc-22.0Vdc |
| Low battery trip: 20.0Vdc-21.0Vdc |
| High voltage alarm: 32.0Vdc |
| Low battery voltage restart: 26.6Vdc |
| Idle consumption: 52.5 watts |
| Idle consumption with power saver mode ON: less 25 watts |
| Output voltage: depends on battery Type |
| Charger rate: 55A |
| Over charge protection shutdown 31.4V |
| Selectable charge setting based on battery type |
| Adjustable charge current: off-15%-100% |
| Four stage smart charger |
| 50 amp automatic transfer switch |
| 10 ms (max) |
| Listed to UL 458, 1741, 1012 and CSA 22.2 NO. 107.1 & 107.2 |
| 2 Year warranty |
| Unit Weight: 84 lb. |
| Unit Size L x W x H: 19 x 16.5 x 8 inches |
Features:
- 4000 watt low frequency inverter
- 12000 watt surge for 20 seconds 300% surge capability
- 24 Volt DC
- Split phase 120/240Vac output
- Listed to UL 458, 1741, 1012 and CSA 22.2 NO. 107.1 & 107.2

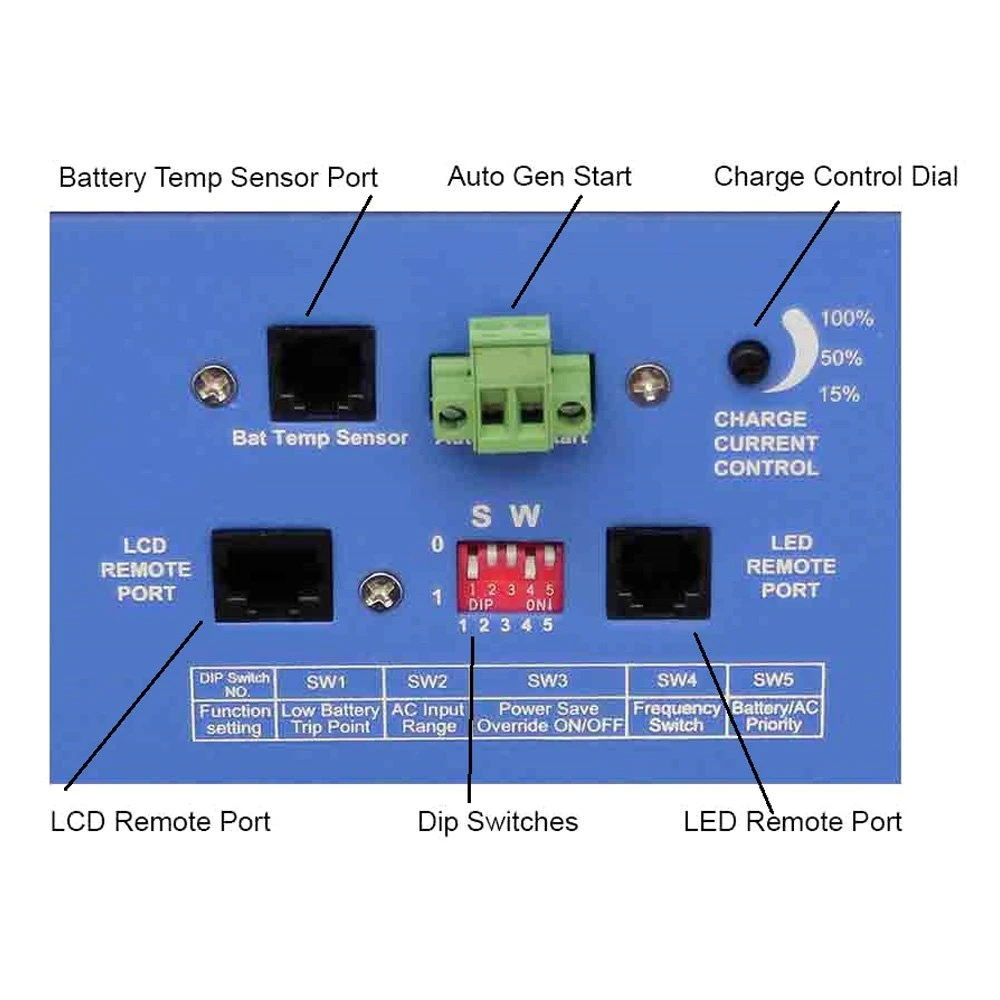

- Battery priority selector
- Terminal block
- Marine coated and protected
- Multi stage smart charger 55 Amp
- Charges lithium LiFePO4, GEL, AGM and lead batteries. AIMS Power recommend to check battery charging specifications for all batteries
- Remote panel available LED or LCD
- Auto frequency
- 10msec typical transfer time
- Selectable 25W power save mode (hibernation)
- 7 battery type settings for charger
- Allows start up and through power with depleted batteries
- Automatic transfer switch
This AIMS power inverter charger includes a powerful 55 amp charger and is capable of accepting any source of 240V AC power to charge batteries, including a gas or diesel generator or shore power.
The 4000 watt inverter charger is capable of a 12000 watt surge for 20 seconds and can run at 4000 watts continuously. This inverter will never completely drain your batteries as it’s low-voltage shut-down keeps the voltage at either 20 volts or 21 volts depending on your selection. With the battery priority mode, you can set your inverter to run directly off of a battery back-up system instead of a generator or tertiary source of AC Power. The inverter charger comes with a power saver mode that pulses every 30 seconds, attempting to detect a necessary load of 25 watts or more before it will turn on. Otherwise, the inverter will “sleep” and draw right around a half an amp per hour, saving you precious reserve power in your batteries until you need it.
An optional wired LED or LCD remote can be added for fast and easy operation if your inverter charger is mounted in a location that is inconvenient to get at. This allows the unit to be operated within the cab of a vehicle or from another location in the home or campsite.
