100A Battery Voltage Regulator for 12V DC Systems (LFP12V100AREG) by AIMS Power®. The AIMS Power battery voltage regulator and isolator protects batteries using solid state technology by automatically disconnecting a 12V DC source when voltage is not safe or out of operating range. This product allows you to use different battery technologies in the same application and lithium batteries can be used in any application (alternators) because the regulator prevents the battery from over charging. Its compact and simple 2-wire terminal configuration allows for easy installation in common 2-wire 12 Volt applications: vehicle, wind, hydro or any other 12V systems.
Notes:
- Once the current is within operating range, the regulator will reset after 2 minutes resuming normal operation.
Specifications:
| Voltage Input: 9.4-14.4Vdc |
| Input Voltage: 9.4-14.4Vdc Output On |
| Input Voltage less : 9.2Vdc Output Off |
| Input Voltage more : 14.6Vdc Output Off |
| Weight: 1 lb |
| Dimensions LxWxH: 5.75″ x 4.75″ x 2.125″ |
Features:
- Works with 12 V battery systems
- 100 amps alternator or other DC device

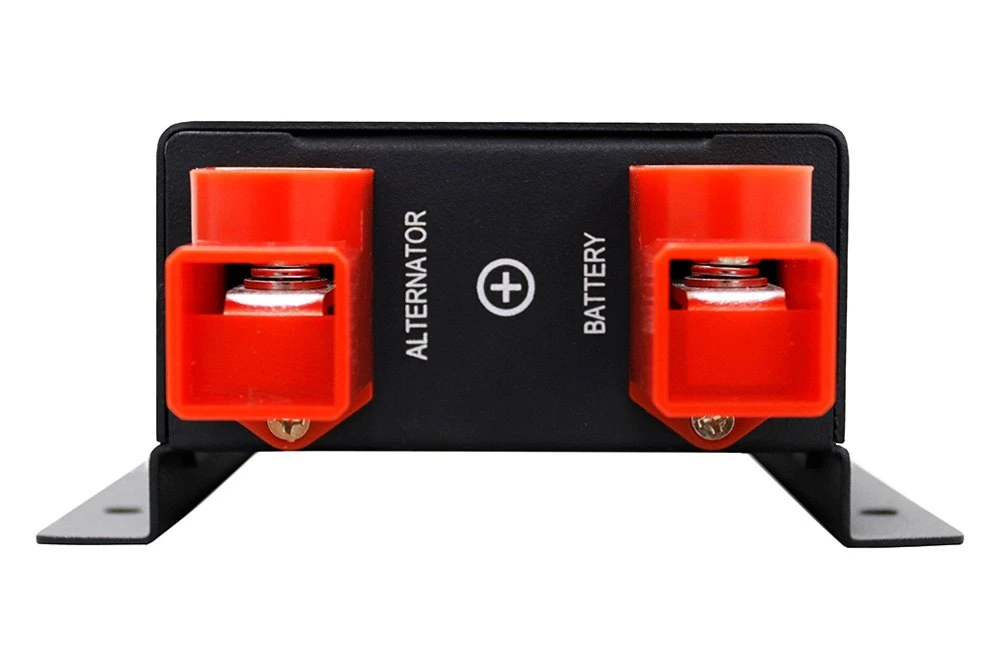

- Dedicated alternator port
- Simple 2 wire design easy to install
- Low and high voltage protection
- Perfect for alternators, wind or hydro battery applications
- Resets once current is within operating range
Battery Voltage Regulator for 12V DC Systems Including Lithium
The regulator continuously monitors the input voltage. If the voltage is within the operating range of 9.4 – 14.4V, power will be supplied to the output terminal allowing power to the loads. If the voltage drops below 9.2V or is over 14.6V the power is cut off at the output terminal preventing power to the loads. The regulator also performs as an isolator by automatically disconnecting loads when the battery voltage is outside of operating range, protecting the main starting battery. Loaded with several safety features, the regulator will protect your batteries, while prolonging the overall life.
Over Current Shutdown:
Current more than 100A/200A and less than 125A/250A, the relay is disconnected after 1 minute.
Current more than 125A/250A and less than 150A/300A, relay is disconnected after 10 seconds.
Current more than 150A/300A, the relay is disconnected immediately.
