AIMS Power® – Ignition/Toggle Relay Switch

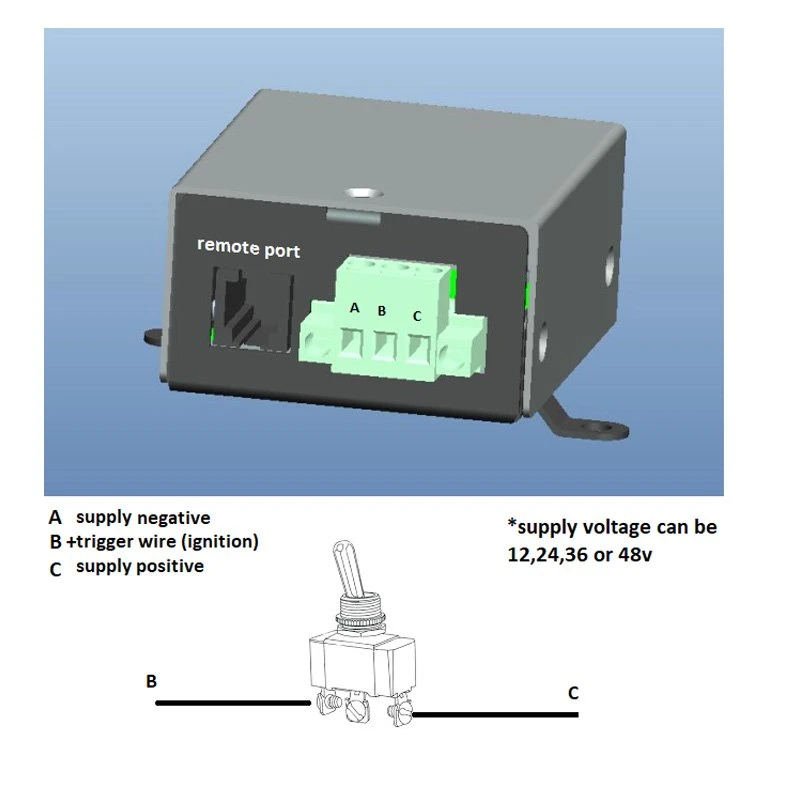

Ignition/Toggle Relay Switch by AIMS Power®. Ignition or Toggle Relay Switch 12, 24, 36 or 48V DC. The AIMS Power ignition/toggle relay switch allows an inverter to be powered using the vehicle’s ignition or any trigger switch. Compatible with AIMS Power inverters only. NOT compatible with AIMS Power’s inverter chargers. You may use a trigger switch using ports B and C per diagram.

Features:

• Compatible with 12, 24, 36 or 48 Volt DC
• RJ9 cable included for connection to inverter – if you need a longer cable, you may extend up to 15ft
• 3 1/4″ W x 3″ L x 1 1/4″ H
• One year warranty
• 10 oz
• Includes mounting screws
