Product Details

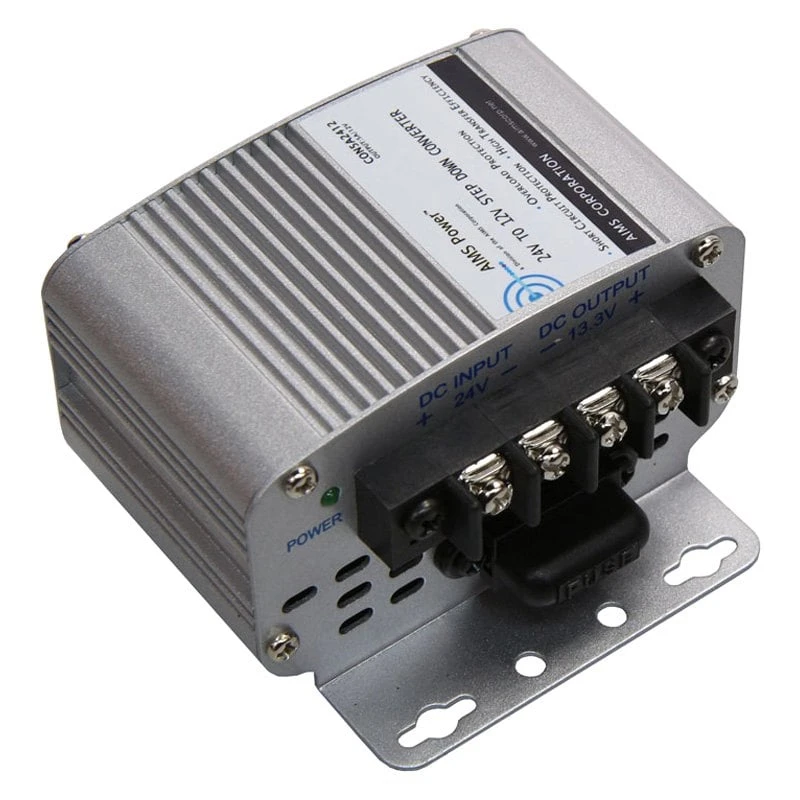

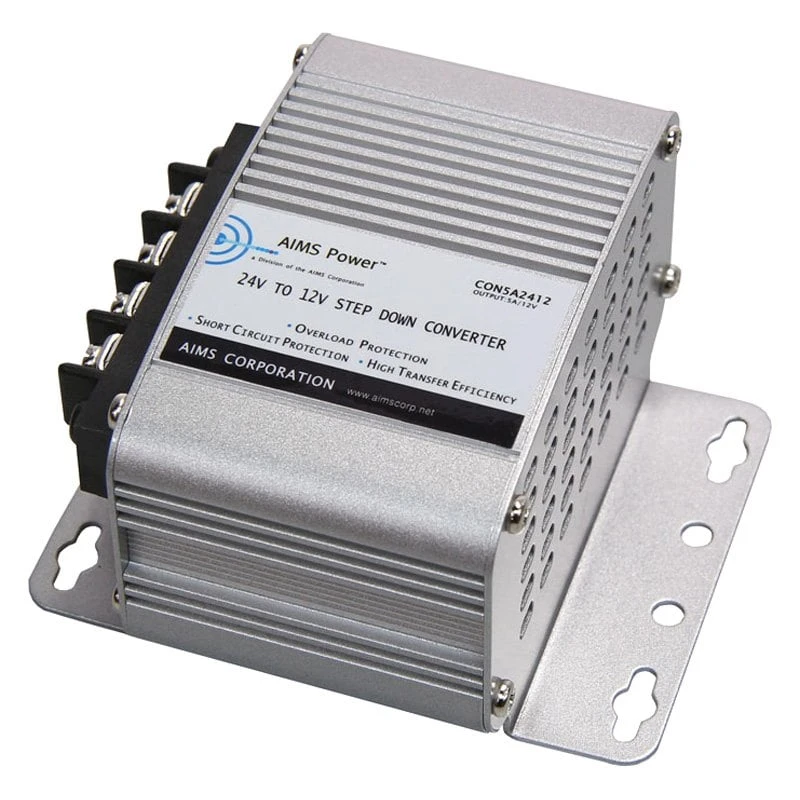

5A 24V to 12V DC-DC Converter (CON5A2412) by AIMS Power®. Also known as a buck converter, a step-down converter efficiently changes one level of voltage into another. This compact step-down DC-DC converter has an input voltage of 24 VDC nominal (range 20 VDC to 37 VDC) to a highly regulated output voltage of 12 VDC nominal at five amps.
Specifications:
| DC Input Voltage: 20-37 Vdc |
| DC Output Voltage: 12.5-13.5 Vdc |
| Output Current: 5 amps |
| Output Current Max: 6 amps |
| Non-Isolated |
| Conversion Effiency: more 92% |
| DC Input Low Battery Shutdown: 18 +/- 1 V |
| DC Input High Battery Shutdown: more 38Vdc |
| DC Input Over Current Protection: 3A Fuse |
| DC Input Polarity Protection: Fuse Protected |
| Over Temperature Protection: 150 +/- 5 degrees F |
| DC Output Short Protection: Yes |
| DC Output Over Current Protection: 6 amps |
| DC Output Over Voltage Protection: TVS Diode |
| Unit Weight: 0.57 lbs. |
| Unit Size L x W x H: 3.62 x 3.39 x 2.2 inches |
| Shipping Weight: 1 lbs. |
Features:
- 5 Amp 24 volt to 12 volt dc to dc converter
- Green LED on front panel to confirm power on
- Terminal block for DC input/output
- Over Temperature protection
- Over Load protection
- DC Input Low Battery Shutdown
- DC Input High Battery Shutdown
- DC Output Short Protection
- DC Output Over Current Protection
- DC Output Over Voltage Protection
- Transformer based
- Aluminum case for optimal cooling
- Instruction manual
- Free 1 year tech support
- 1 Year Warranty Parts and Labor
- CE EN61000-6-3:2007+A1:2011
- CE EN61000-6-1:2007
This 24V to 12VC DC to DC converter from AIMS Power has an aluminum case for optimal cooling. With this DC to DC converter, 24V to 12V step-down is easy and safe.
The unit includes a terminal block for DC input and output connections and an LED power indicator. Safety features include output short protection, input low and high battery shutdown and more.
This a non-isolated five-amp DC-DC converter. It is made for use in negative ground systems.
Ideal for automotive applications, these units are CE EN61000-6-3:2007+A1:2011 and CE EN61000-6-1:2007 listed. AIMS Power offers other converters up to 100 amps.
