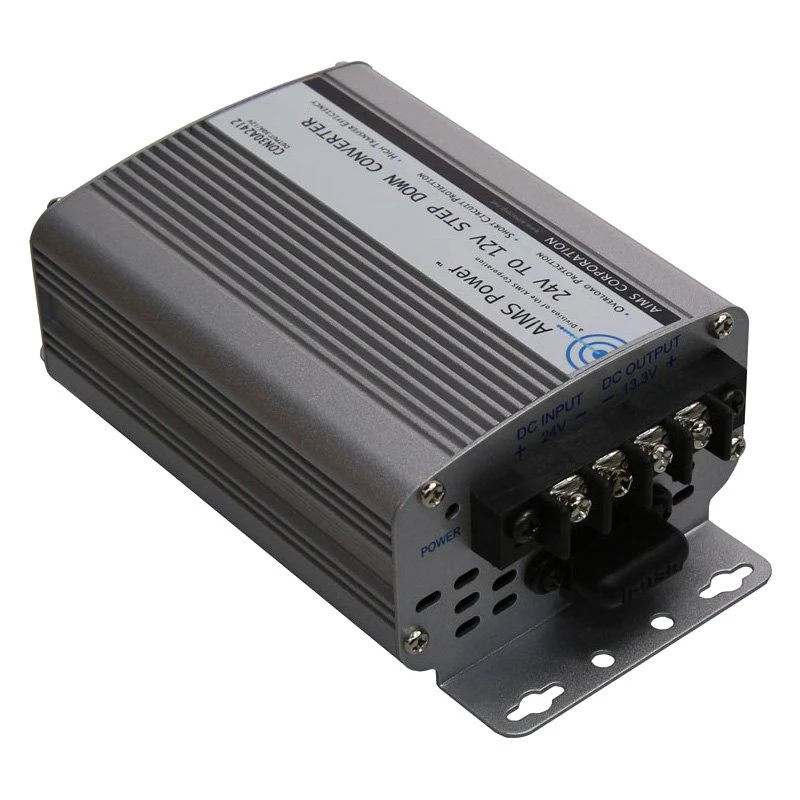

40A 24V to 12V DC-DC Converter (CON40A2412) by AIMS Power®. This compact step-down DC-DC converter has an input voltage of 24 VDC nominal (range 20 VDC to 37 VDC) to a highly regulated output voltage of 12 VDC nominal at 40 Amps. This a non-isolated 40 amp DC-DC converter and is made for use in negative ground systems. These units have CE EN61000-6-3:2007+A1:2011 and CE EN61000-6-1:2007.
Specifications:
| DC Input Voltage: 20-37 Vdc |
| DC Output Voltage: 12.5-13.5 Vdc |
| Output Current: 40 amps |
| Output Current Max: 48 amps |
| Non-Isolated |
| Conversion Effiency: more 90% |
| DC Input Low Battery Shutdown: 18 +/- 1 V |
| DC Input High Battery Shutdown: more 38Vdc |
| DC Input Over Current Protection: 30A Fuse |
| DC Input Polarity Protection: Fuse Protected |
| Over Temperature Protection: 150 +/- 5 degrees F |
| DC Output Short Protection: Yes |
| DC Output Over Current Protection: 48 amps |
| DC Output Over Voltage Protection: TVS Diode |
| Unit Weight: 1.0 lbs. |
| Unit Size L x W x H: 5.91 x 3.39 x 2.2 inches |
| Shipping Weight: 1 lbs. |
Features:
- 40 Amp 24 volt to 12 volt dc to dc converter
- Green LED on front panel to confirm power on
- Terminal block for DC input/output
- Over Temperature protection
- Over Load protection
- DC Input Low Battery Shutdown
- DC Input High Battery Shutdown
- DC Output Short Protection
- DC Output Over Current Protection
- DC Output Over Voltage Protection
- Transformer based
- Aluminum case for optimal cooling
- Instruction manual
- Free 1 year tech support
- 1 Year Warranty Parts and Labor
- CE EN61000-6-3:2007+A1:2011
- CE EN61000-6-1:2007
