Product Details
Battery Voltage Regulator for 12V DC Systems by AIMS Power®. The AIMS Power battery voltage regulator and isolator protects batteries using solid state technology by automatically disconnecting a 12V DC source when voltage is not safe or out of operating range. This product allows you to use different battery technologies in the same application and lithium batteries can be used in any application (alternators) because the regulator prevents the battery from over charging. Its compact and simple 2-wire terminal configuration allows for easy installation in common 2-wire 12 Volt applications: vehicle, wind, hydro or any other 12V systems.
Notes:
- Once the current is within operating range, the regulator will reset after 2 minutes resuming normal operation.
Specifications:
| Voltage Input: 9.4-14.4Vdc |
| Input Voltage: 9.4-14.4Vdc Output On |
| Input Voltage less : 9.2Vdc Output Off |
| Input Voltage more : 14.6Vdc Output Off |
| Weight: 1 lb |

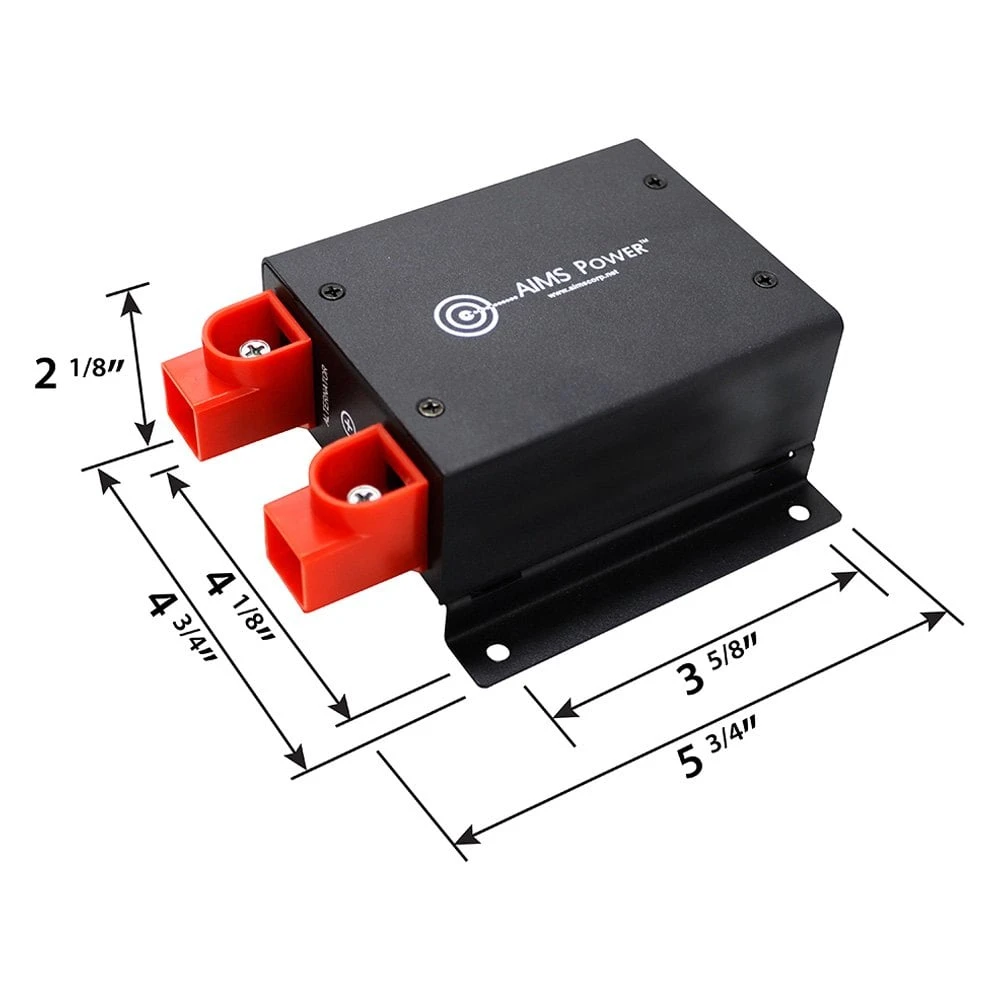

| Dimensions LxWxH: 5.75″ x 4.75″ x 2.125″ |
Features:
- Works with 12 V battery systems
- Dedicated alternator port
- Simple 2 wire design easy to install
- Low and high voltage protection
- Perfect for alternators, wind or hydro battery applications
- Resets once current is within operating range
Brand:
AIMS Power
Part Number:
LFP12V100AREGLFP12V200AREG
