Product Details

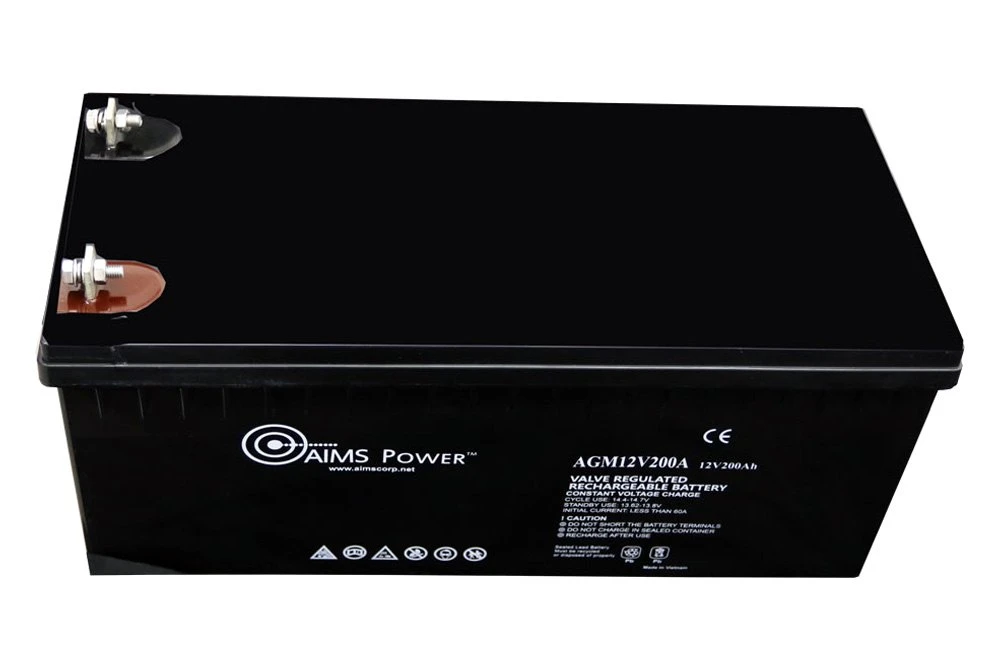

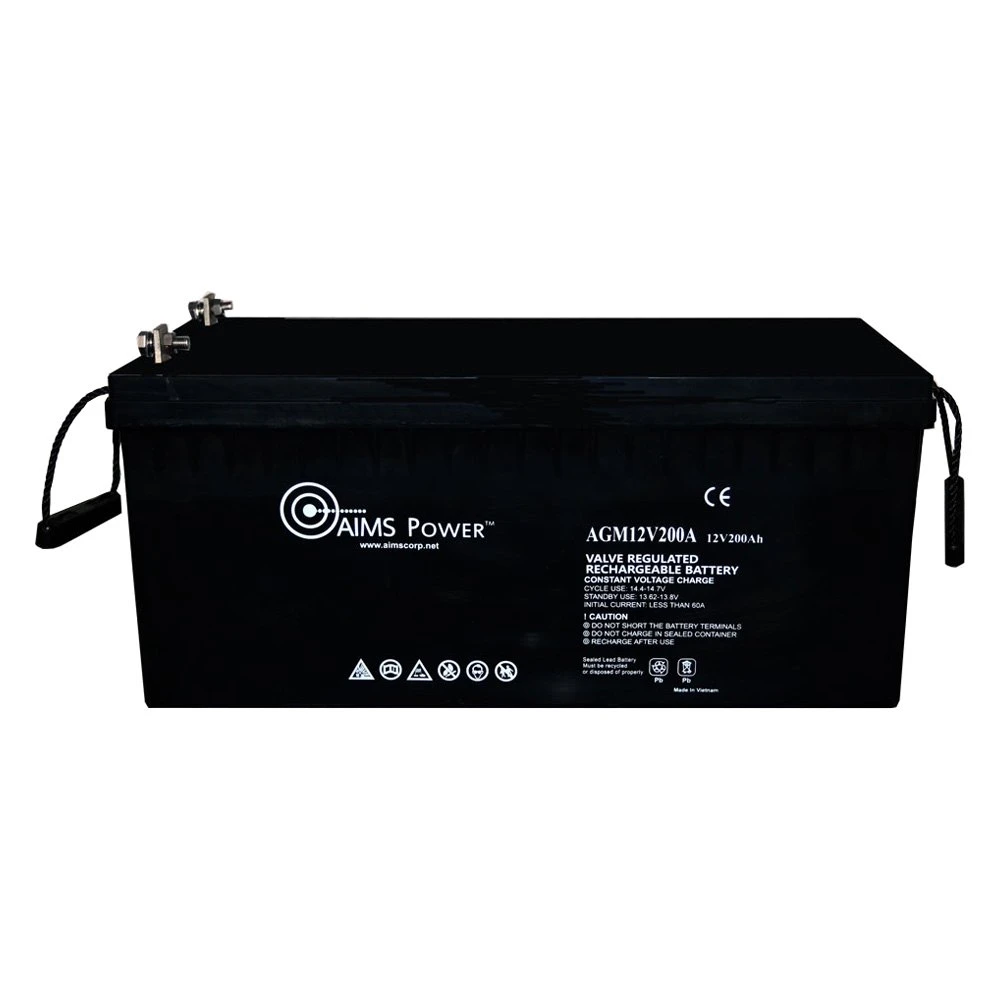

AGM 12V 200Ah Heavy Duty Deep Cycle Battery by AIMS Power®. This 12V AGM battery is a heavy duty, deep cycle battery ideal for back-up power, golf carts and stored power applications. Affordable without compromising quality, this battery will provide power for years. This heavy duty rechargeable battery is made of AGM lead lead dioxide technology. The extra thick lead plates in this battery allow for a deeper discharge with less harm to the battery and provides 20% more charge/discharge cycles compared to other AGM batteries.
Features:

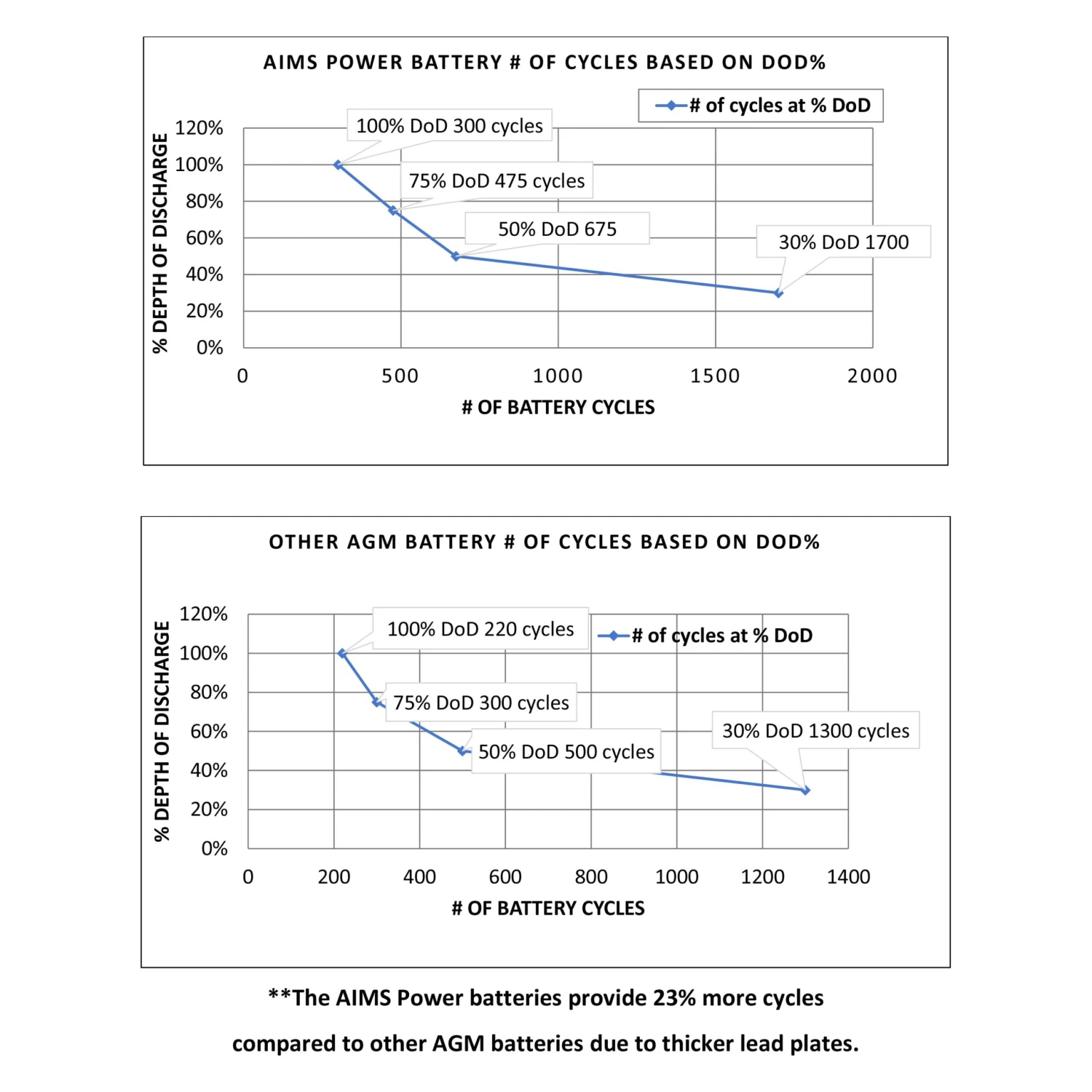

- Heavy duty compared to other AGM batteries – 20% more cycles
- Mount in any orientation
- Computer designed lead calcium tin alloy grid for high power density
- AGM is ideal for back up and stored power applications
- Convenient carry handles
- Long service life float or cyclic applications
- Maintenance-free operation
- Thick plates within the battery to limit fluid expansion during freezing
- Low self discharge
- Copper terminals
- Nominal Voltage 12V
- Number of cell 6
- Design life 10 years with proper maintenance
- Nominal Capacity 77F(25C)
- 20 hour rate (10A 10.8V) 200Ah
- 10 hour rate (18.7A 10.8V) 187Ah
- 5 hour rate (35.8A 10.5V) 179Ah
- 1 hour rate (126A 9.6V) 126Ah
- Internal Resistance
- Fully Charged battery 77F(25C) 4mOhms
- Self-Discharge 3% of capacity declined per month at 20C(average)
- 3% of capacity declined per month at 20C(average)
- Operating Temperature Range Discharge -20~60C Charge -10~60C Storage -20~60C
- Discharge -20~60C
- Charge -10~60C
- Storage -20~60C
- Max. Discharge Current 77F(25C) 1000A(5s)
- Short Circuit Current 3300A
- Charge Methods: Constant Voltage Charge 77F(25C)
- Cycle use 14.4-14.7V
- Maximum charging current 30A
- Temperature compensation -30mV/oC
- Standby use 13.6-13.8V
- 20.5″ L x 8.78″ H x 9.37″ W
- Weight(lb) 138
- 5 year warranty from manufacturer defects
AGM batteries have less instant energy, but greater long-term energy delivery. The dilute sulfuric acid electrolyte is absorbed by separators and plates, thus immobilized. Should the battery be accidentally overcharged producing hydrogen and oxygen, special one-way valves allow the gases to escape, avoiding excessive pressure build-up. Otherwise, the battery is completely sealed and is, therefore, maintenance-free, leak-proof and usable in any position. Perfect for applications requiring large amounts of power and much longer run time.
Starting batteries, such as car batteries should not be used for deep cycle applications because of the thinner plates in these batteries. They are more prone to warping and pitting when discharged.
You can connect these batteries in series or parallel depending on DC voltage needed. Most common voltages are 12, 24, 36 and 48V.
