Product Details

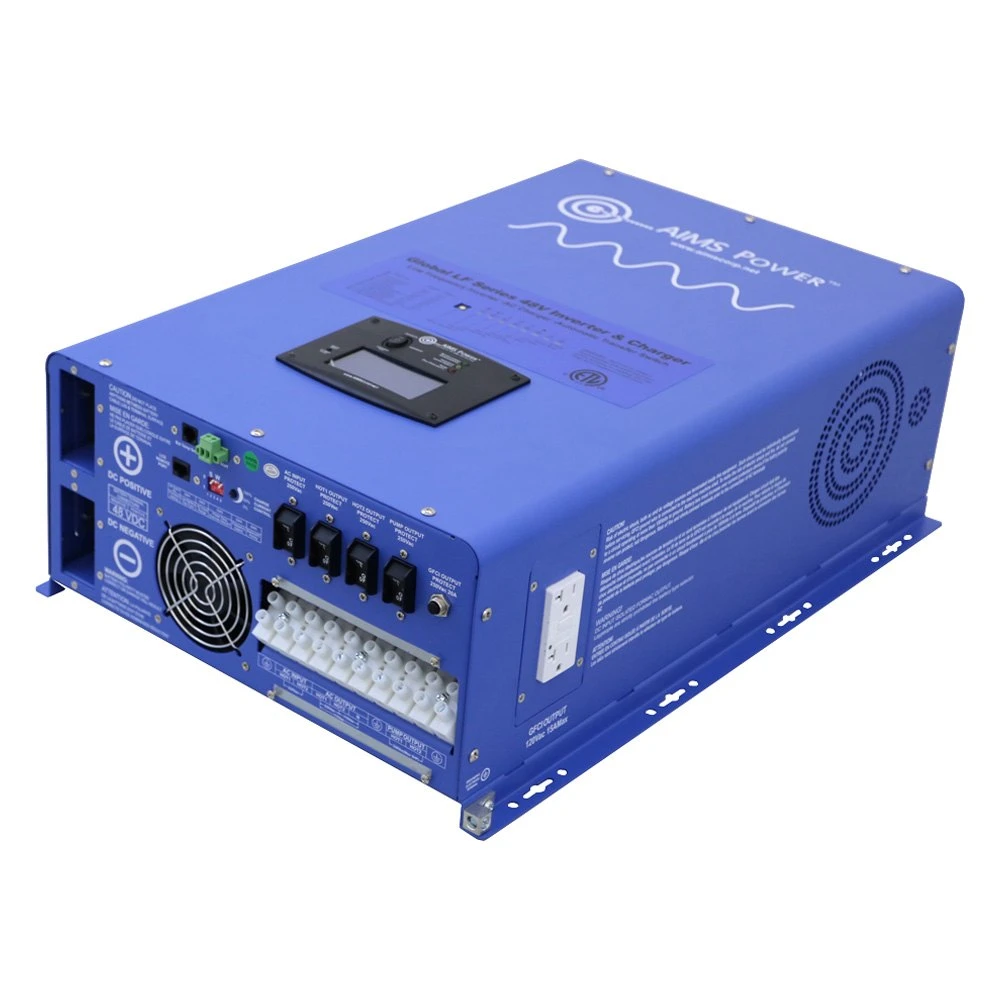

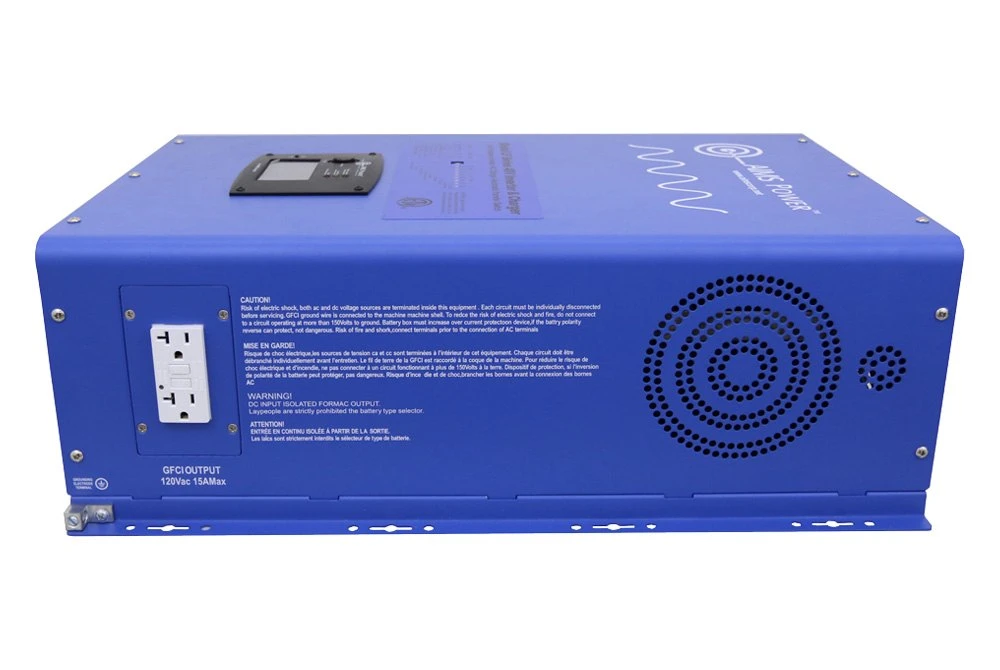

8000W Pure Sine Inverter Charger with ETL Listed to UL 1741 Standard by AIMS Power®. With 48V DC/240V AC Input & 120/240V AC Split Phase Output. AIMS Power line of ETL listed to UL 1741 Standards 48 Volt DC to 120/240 Volt AC inverter chargers is the power house for back up, off grid systems. Built with a 48 Volt DC input, these inverter chargers perform with very little power loss. Users receive a notable increase in efficiency in large systems when compared to using inverters that accept 12 or 24 volts. This can be an attractive feature for sustainability lovers looking to live as efficiently as possible. The most common use for this inverter is emergency backup power for residences and businesses.
Specifications:
| Continuous Output Power: 8000 Watts |
| Surge Rating: 24000 Watts (20 Seconds) |
| Output Waveform: Pure Sine/Same as input (Bypass Mode) |
| 100-110-120Vac / 220-230-240Vac |
| Nominal Efficiency: more 88% (Peak) |
| Line Mode Efficiency: more 95% |
| Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz |
| Typical Transfer Time: 10ms (Max) |
| THD: less 7% under full linear load |
| Ambient operating temperature: 14°F to 122°F (-10°C to 50°C) |
| Nominal input voltage: 48.0Vdc |
| Low battery alarm: 42.0Vdc-44.0Vdc |
| Low battery trip: 40.0Vdc-42.0Vdc |
| High voltage alarm: 64.0Vdc |
| Low battery voltage restart: 62.0Vdc |
| Idle consumption: 100 Watts |
| Power saver mode idle consumption: less 25 Watts |
| Automatic transfer switch – 50A @ 220/230/240V |
| Bypass – 50A @ 220/230/240V |
| Output voltage: depends on battery type |
| Charger rate: 80A |
| Four stage smart charger with current adjust dial 20-100% |
| Unit weight: 132 lbs. |
| Unit size L x W x H: 23.3 x 16.3 x 7.9 inches |
Features:
- 8000 Watt low frequency inverter 110/120/220/230/240 Vac Split Phase
- 24000 Watt surge for 20 seconds -3x surge capability
- ETL Listed to UL 1741 Standards
- CSA STDC 22.2 NO.107.1
- Battery priority selector
- AC direct connect terminal block
- Marine coated and protected
- Multi stage smart charger 80 Amp charges GEL, Lead, AGM, Lithium

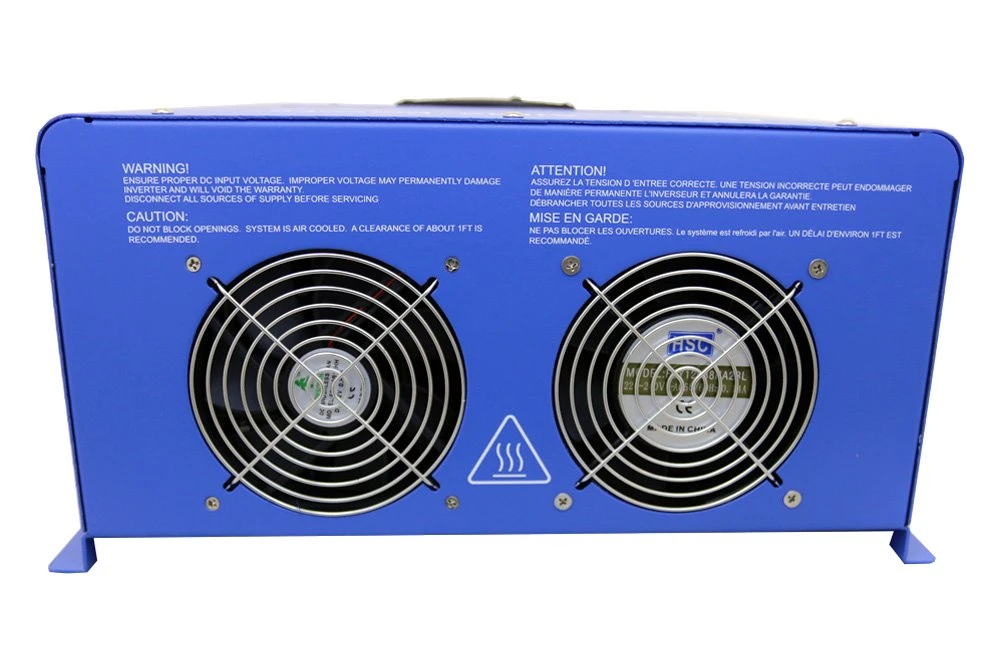

- Three cooling fans – thermal and load based
- Remote panel available
- 60hz or 50 hz selectable dip switch
- 10msec typical transfer time
- Mounting plate included
- Selectable 25W power save mode (hibernation)
- 8 battery charger settings
- 4 stage battery charger
- 2 year warranty
You’ll always be prepared for the next power outage with access of up to 12,000 watts (depending on model) of continuous power and 36,000 watts of surge (for up to 20 seconds). AIMS Power recommend recharging your battery bank with AIMS Power solar panels — a cleaner form of power. One of the most sought-after features this inverter has is the direct-connect terminal block, which allows users to surpass the 8Kw or 12Kw capacity and harness its 300% surge power (up to 24Kw or 36Kw watts for 20 seconds as previously noted). Have a hunting cabin or off-grid vacation home? This AIMS Power inverter charger is perfect for supplying reliable electricity to the entire house. This inverter is also built to withstand reasonable heat and temperature fluctuations because of its over-temperature protection and dual thermally-controlled fans. And it’s protected from humidity or airborne dust and dirt by virtue of its marine-coated (or “conformal-coated”) boards. This inverter provides the reliability needed in any business or residential emergency backup power application. The inverter is a split-phase and will output 110/120 or 220/230/240 Vac, and it can output 50 or 60Hz via the SW4 dipswitch on the DC side of the product. This means that this inverter works internationally and is operable with nearly any electrical system on the planet! This beast of an inverter can pretty much get any job done imaginable. The development of this new DC-to-AC inverter technology puts this product in high demand among AIMS Power customers. When you purchase a low frequency inverter charger from AIMS Power, you’re getting AIMS Power top-of-the-line product offering. The unit is repairable, and AIMS Power stand behind it with a free two-year warranty and tech support. Make a step in the right direction when it comes to preserving this beautiful planet by choosing an inverter powered by renewable energy when building your next electrical system.
