Product Details

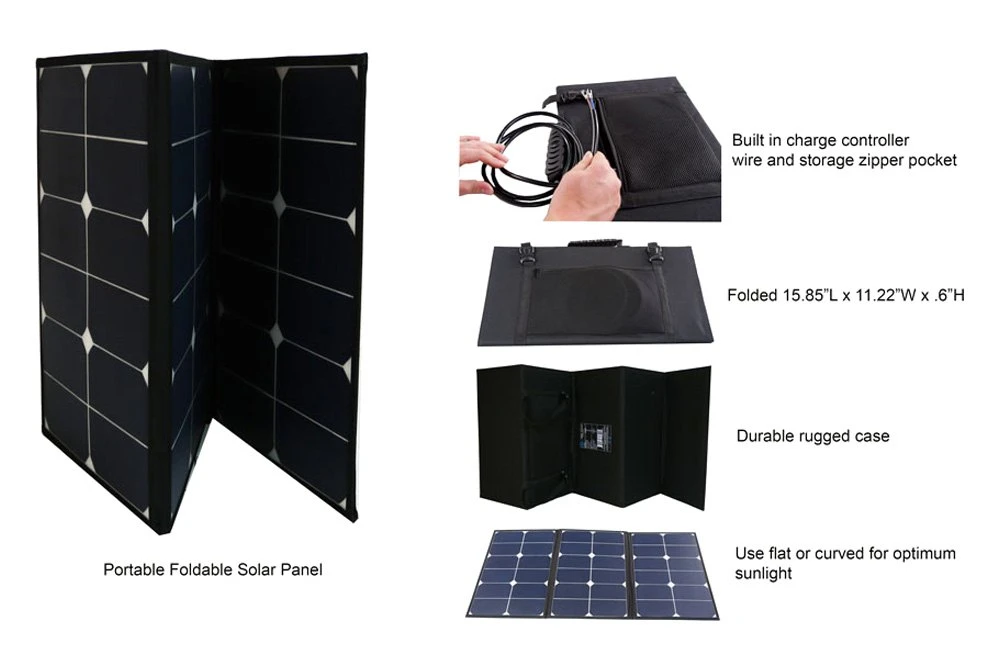

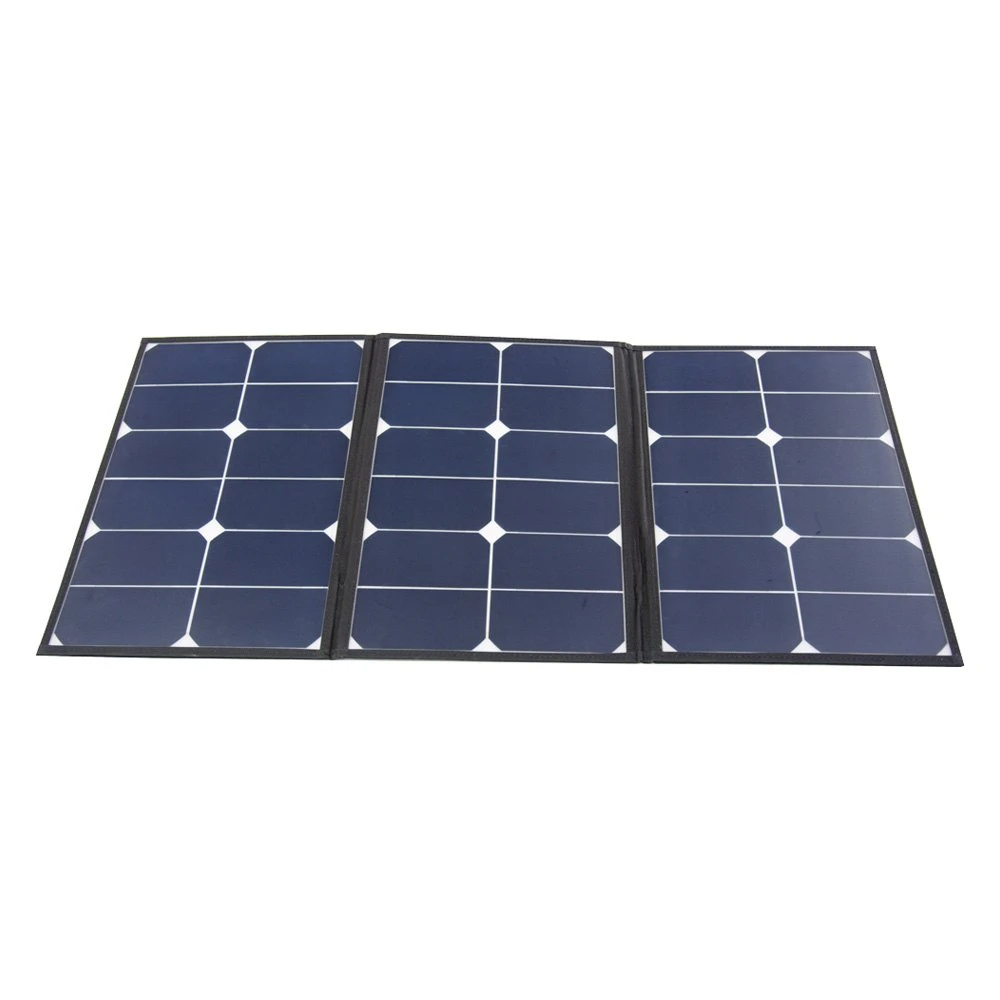

60W Portable Foldable Pre-wired Monocrystalline Solar Panel with Built-in Carrying Case by AIMS Power®. Featuring AIMS Power, 60 watt foldable and portable solar panel, made with high quality monocrystalline solar cells and a water resistant rugged case. This portable solar power panel quickly folds and unfolds into a compact carrying case for easy set-up and storage. One the front of the carrying case, there is a zipper pocket to store a small charge controller.
Specifications:
| High performance: light transmittance up to 93% |
| Cell Efficiency: 22.3% (one of the highest) |
| Module Efficiency: 19.2% (one of the highest) |
| Maximum Power: 60W |
| Tolerance Wattage (e.g. +/- 5%): +/- 3W |
| Maximum System Voltage: 600V DC (UL) |
| Max Power Voltage (Vmp): 19.8 V |
| Max Power Current (Imp): 3 A |
| Open-Circuit Voltage (Voc): 23.7 V |
| Short-Circuit Current (Isc): 3.6 A |
| Maximum Fuse Rating: 10 A |
| Fire Safety Class: Class A |
| Temperature Range: -40°F to 185°F |
| Number of cells: 2 x 6 x 3 |
| Charge controller PV Wire: 10 AWG with spade connector easily fits into various charge controllers |
| Temperature Coefficients °C: ISC(%); +2.6 Voc(%); -50.6 Prm(%); -.38 Im(%); +2.2 Vm(%); -60.8 |
| Dimensions: Expanded 33 X 15.8 X 0.20 inches |
| Folded 11.22 x 15.85 x .6 inches |
| Weight: 2.85 lbs |
| Certifications: CE, ETL, TUV and RoHS |

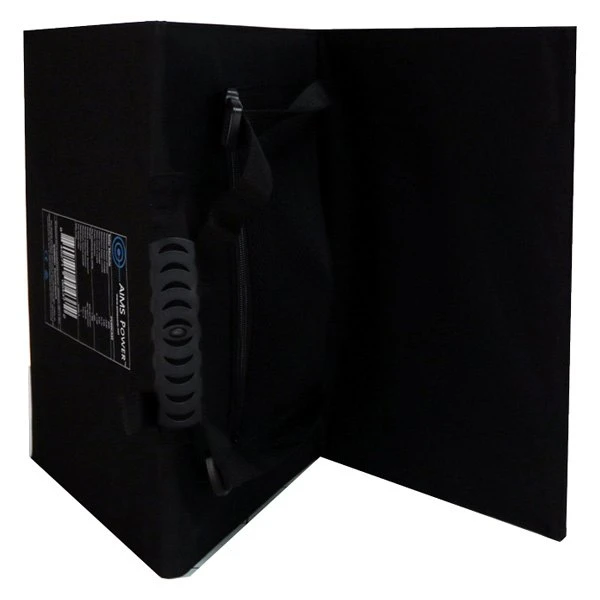

| Case: Water resistant Durable rubber handle Easy side slide buckles Convenient size zipper pocket for wires and charge controller storage |
| Warranty: 5 year manufacturer, 10 years 80% output |
Features:
- Constructed with high quality material and advanced monocrystalline solar cells for efficient energy harvest

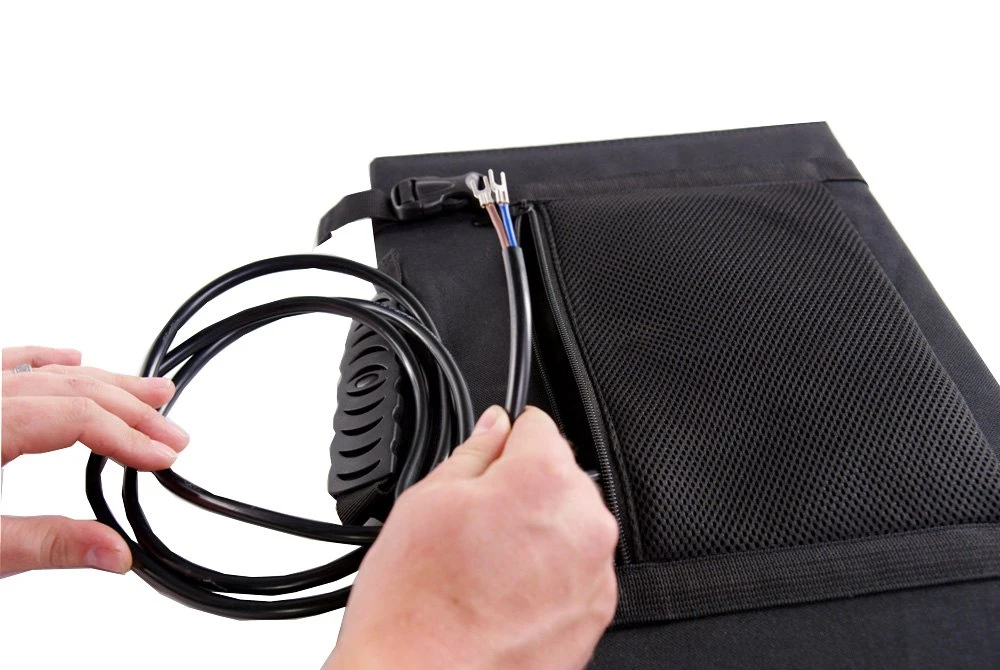

- Built in solar charge controller cable 6ft
- Ideal for curved and uneven surfaces. RVs, boats, bus, vans, utilities, golf carts, bikes and back packs
- Portable and easily adjusts to the optimum sunlight angle
- Accordion style fold up case
- Weather resistant. Appropriate for outdoor use

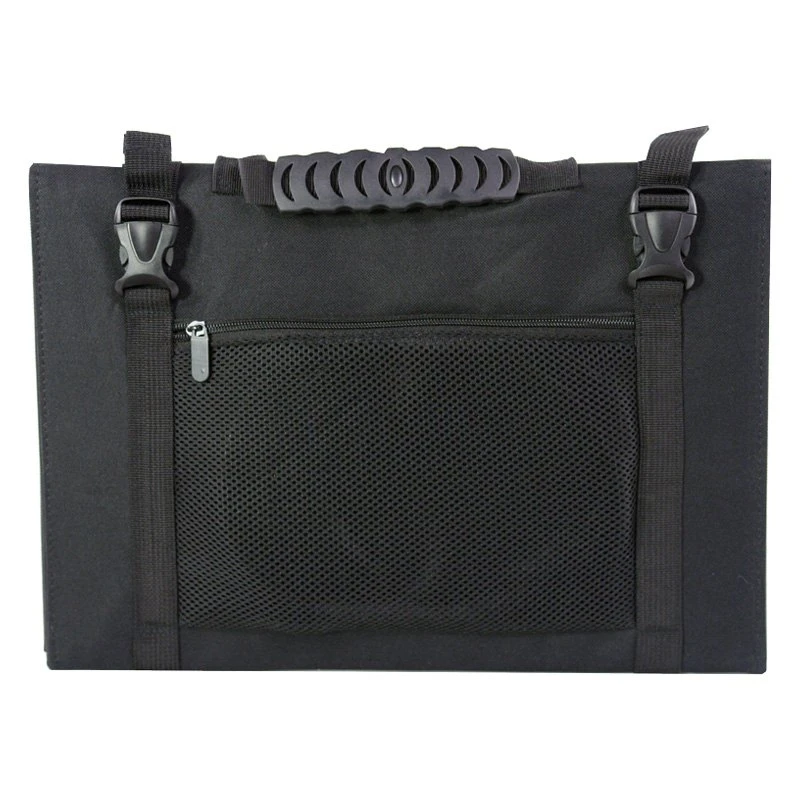

- Durable and rugged case with convenient side zipper pocket to store wires and charge controller
- Lightweight and super thin allowing for easy storage and set up
- Bypass diode minimizes the power drop when shaded
- Reverse current protection
- Modules are independently tested to ensure conformance with certification and regulatory standards
- Manufacturing facility certified to ISO 9001 quality management system standards
- Panels capable of +/- 3% power efficiency than rated
- 5 year warranty, 10 year 80% output
The foldable panel also includes a built in 6 foot charge controller wire allowing for quick connection to various size charge controllers. The carrying case is water resistant, includes a comfortable rubber handle and secures using side release plastic buckles. Backed by a 10 year warranty and weighing in at under 3 pounds, this portable solar panel is a must for every remote application needing power.
