Product Details

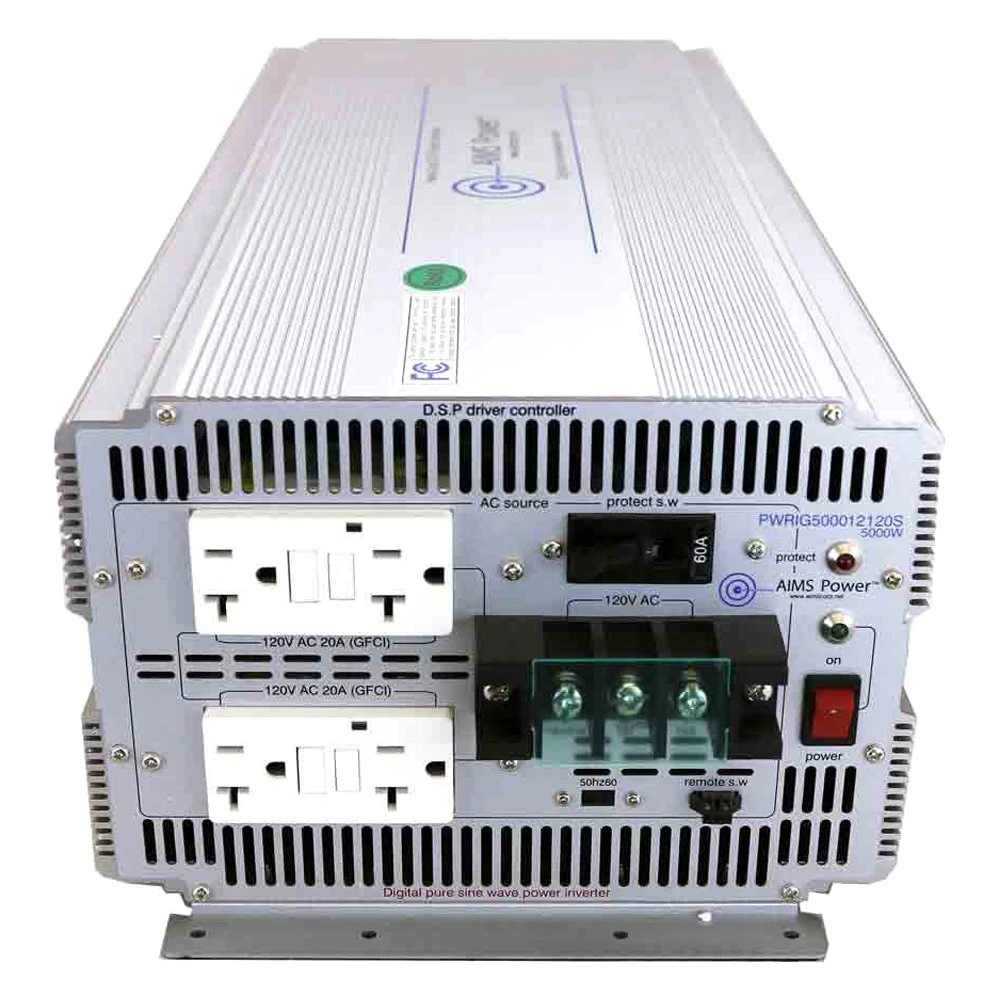

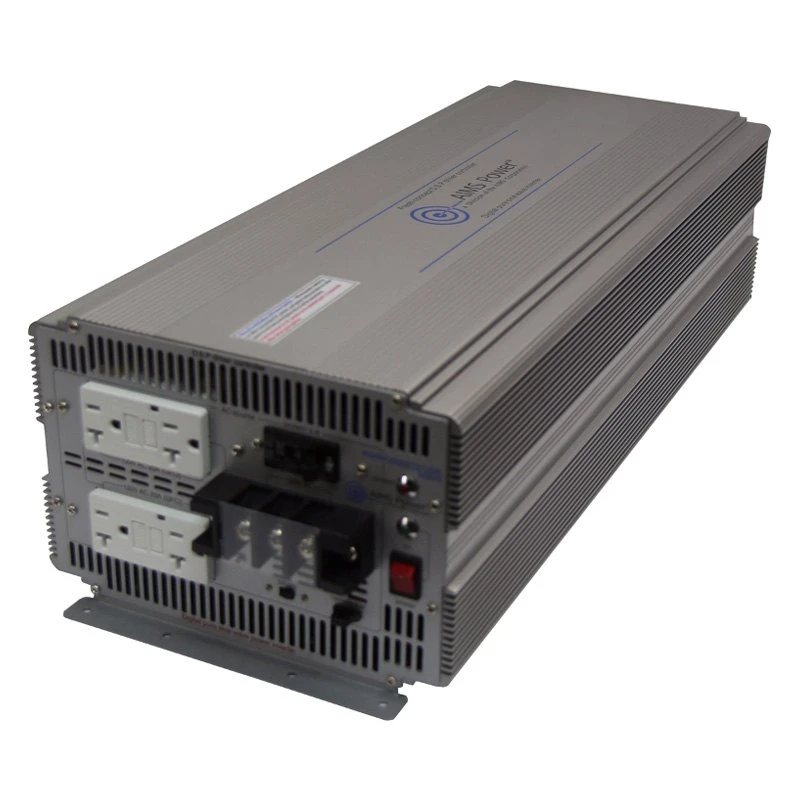

5000W 24V 50/60Hz Pure Sine Inverter by AIMS Power®. AIMS Power is proud to bring you this new 5000 Watt Pure Sine Power Inverter, designed for harsh environments, which has been completely overhauled and now boasts a dual GFCI outlet and is FCC certified. This product also includes a thermally controlled fan, allowing for increased efficiency and less noise. It will continue to put out stable, pure sine power and maintain output voltage, even as you battery bank voltage decreases.
Specifications:
| DC Input Voltage: 26.4V (21V-30V) |
| Output Voltage: no load 120Vac +/- 3% |
| Continuous: 5000 Watts |
| Surge: 10000 Watts |
| 91% Efficiency @ full load |
| No Load Current (Fan Off): 1.3A 24V |
| No Load Current (Fan On): 2.2A 24V |
| Low Battery Shut Down: 20.0V |
| Low Battery Return on Power: 22.4V |
| High Battery Shut Down: 31.7V |
| High battery return on Power: 30.0V |
| Frequency Selection: 50/60hz |
| Over Temperature Protection: -25ºC – 79ºC |
| Cooling Fan on Temperature: 40ºC |
| GFCI Outlets: rated at 20A per block |
| Dimensions (inches) 23.75 x 8.88 x 6.25 |
| Weight: 27lbs |
Features:
- 5000 Watt continuous power
- 10000 Watt surge for 0.5 second
- 24 Volt DC input
- Pure sine wave
- 60hz or 50hz switch
- Highly efficient – improved ouptut at low voltage
- 2 – GFCI Dual Outlet
- Direct connect AC Terminal Block

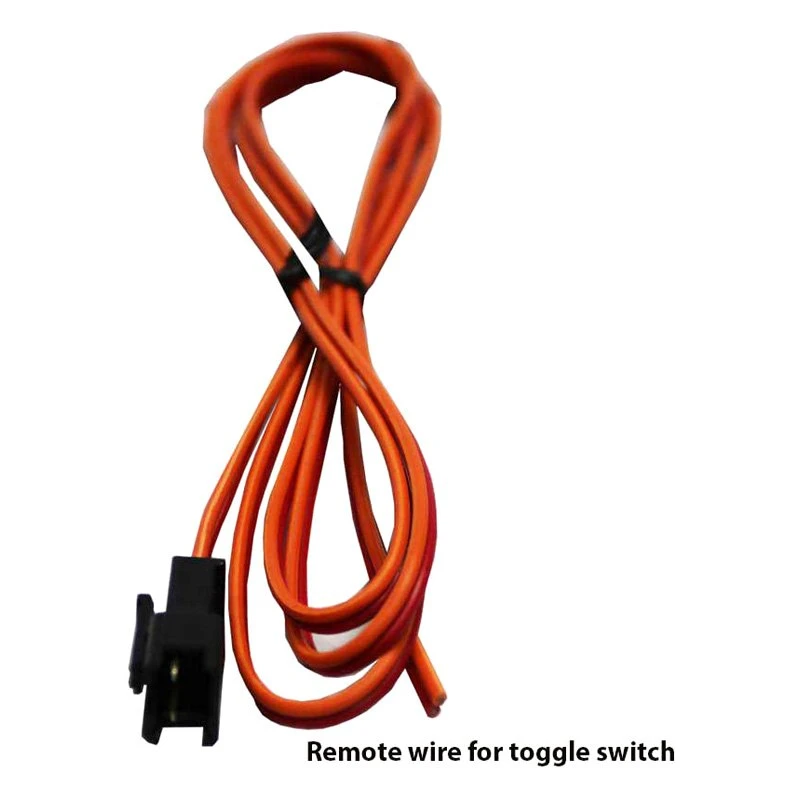

- Connector and cable for remote on/off switch
- Isolated ground & neutral
- Short circuit protection (GFCI and AC Breaker)
- On/off switch
- 5 Function Protection LED indicator
- AC Breaker
- DC volt meter included
- Dual cooling fans thermally controlled
- Instruction manual
- 1 year tech support
- 1 Year Warranty Parts and Labor replacement
High output performance is achieved through a DSP (Digital Signal Process) drive. This inverter is ideal for running nonlinear loads (such as variable speed motors and small compressors). Pure sine power is also preferred for LaserJet printers, sensitive electronics, computer servers, microwaves, medical equipment, any with a circuit board and cordless drill battery chargers. An external battery voltage sensor will allow you to monitor your battery capacity and power consumption.
Packed with 5000 watts of power, this inverter can be used for off-grid home back up power systems, solar, boat, work vehicles and RVs. AIMS Power designed this inverter to be more efficient operating at 24 VDC at higher loads.
