Product Details

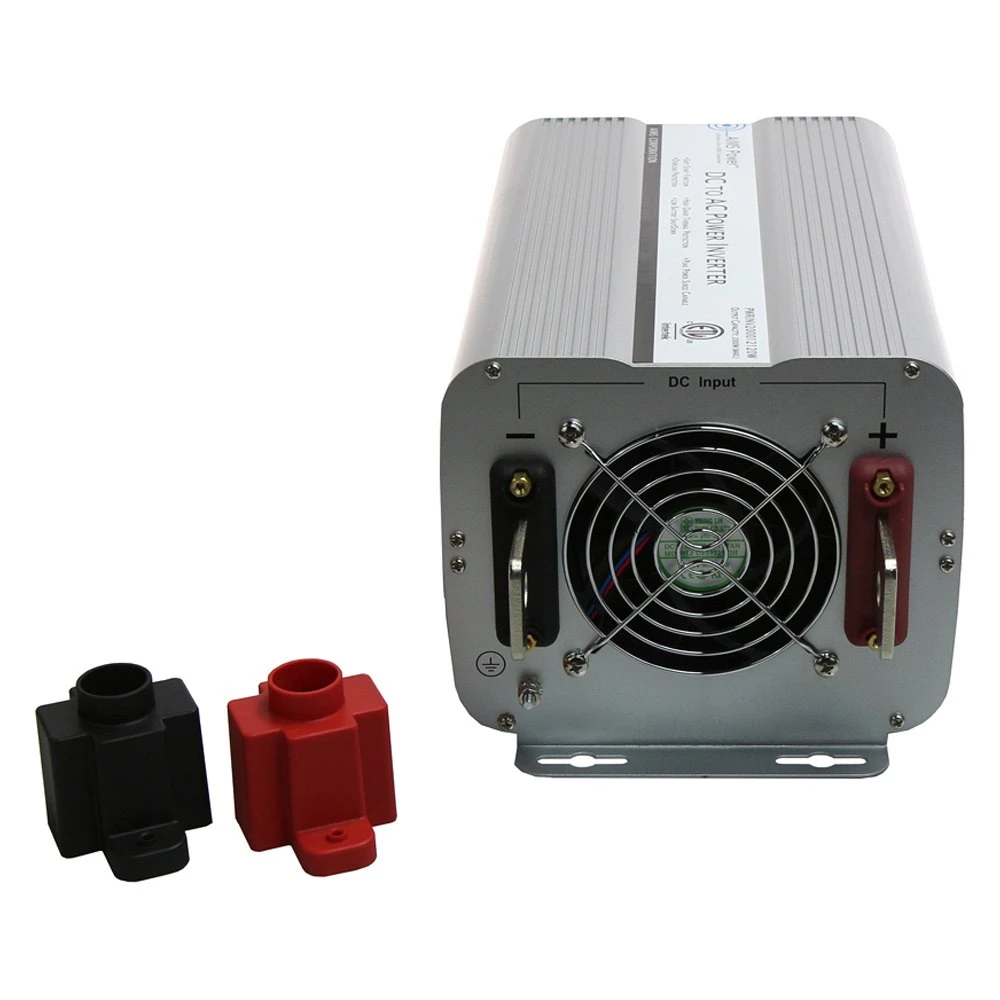

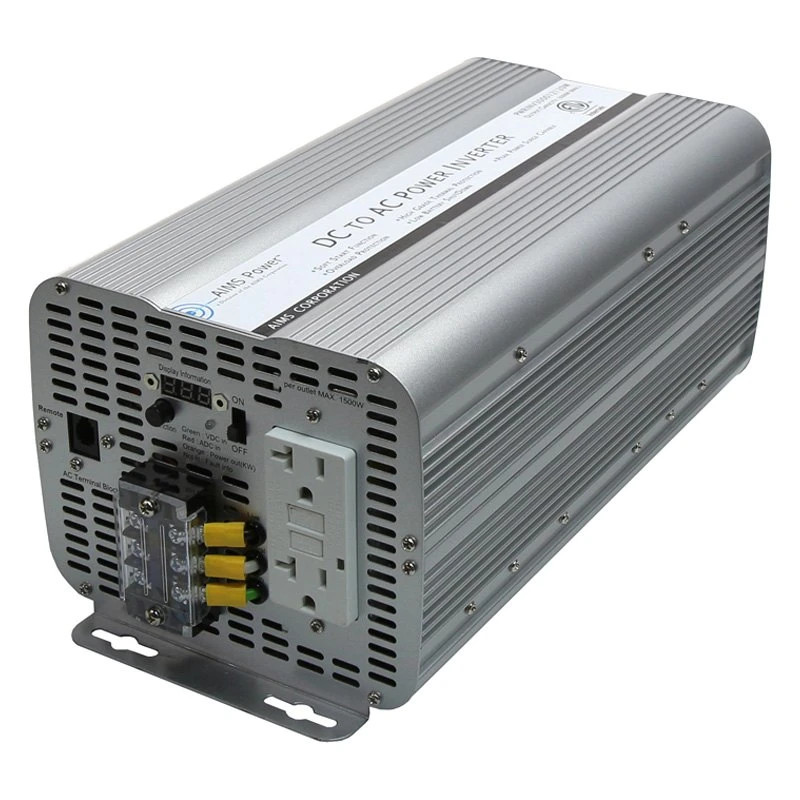

3600W Power Inverter by AIMS Power®. This 3600 Watt Modified Sine Inverter has a few unique features. First, the unit is ETL Listed and conforms to UL 458 Standards. The AIMS 3600 Watt also conforms to CSA Standard C22.2 No. 107.1-01. Canada. At AIMS Power, AIMS Power listen to AIMS Power customers and as a result, AIMS designed this 3600 Watt UL listed modified sine inverter with AIMS Power customers in mind.
Specifications:
| Continuous output power: 3600 Watts |
| Surge power capability (peak power): 7200 Watts |
| dc input / operating voltage: 10 to 15 Volts |
| Output voltage: 120 Volts ac |
| Output frequency: 60 Hz +/1 .5 Hz |
| Battery low voltage alarm: 10.5 +/- 0.5 Volts |
| Battery low voltage shutdown: 10.0 +/- 0.5 V |
| No load minimum operating temperature: 25 degrees F |
| Full load maximum operating temperature: 140 degrees F (automatic shutdown) |
| Efficiency: 90% |
| No load draw: less 2.0A |
| AC amps: 30 |
| DC amps: 300 |
| AC Output Socket Type: dual GFCI and AC direct connect terminal |
| High input voltage protection: 15V |
| Low input voltage shutdown: 10V |
| Internal fuse protection |
| Product size (L x W x H): 14.5 X 6.62 X 5.6 |
| Weight: Unit: 9.04 lbs Boxed: 12 lbs |
Features:
- 3600W max continuous power
- Modified sine wave
- Digital Display
- LED Monitoring Lights
- Dual GFCI Outlet
- AC Direct connect terminal block
- Over Temperature protection
- Over Load protection
- Thermal Cooling fan operation
- Internally fuse protected
- ac output short circuit protection
- Aluminum case for optimal cooling
- Pre-slotted mounting plate
- Instruction manual
- Free tech support
- 2 Year Warranty Parts and Labor
- ETL Listed to UL 458 Standards and CSA 22.2

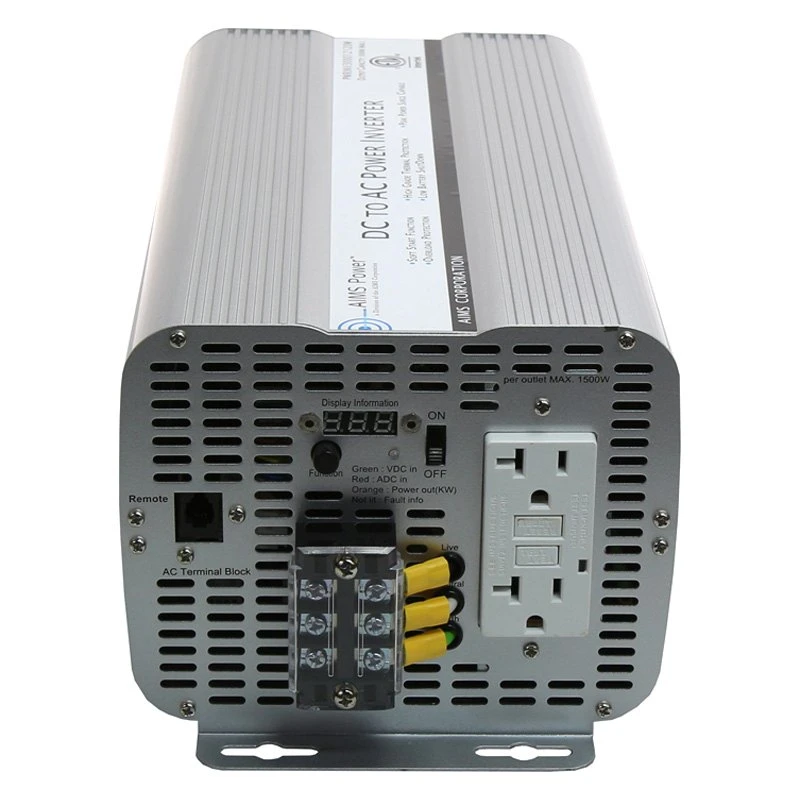

AIMS has produced a high quality unit that is also available in two other sizes 2000 and 3000 watts. It features a 20 amp GFCI outlet. That is exactly like the outlets you find in your bathroom and are able to be reset if they “pop” for safety. This inverter also has a direct connect AC terminal block, which delivers the full 3600 watts to a single source. The compact design is lightweight and durable, taking up less space in your work environment.
Ideal for back-up power systems for homes, boats, cabins, solar, vehicle outfitters and other OEM type applications that require a UL 458 listing. AIMS offers several UL products. Click here to see AIMS Power full line of UL listed inverters.
