Product Details

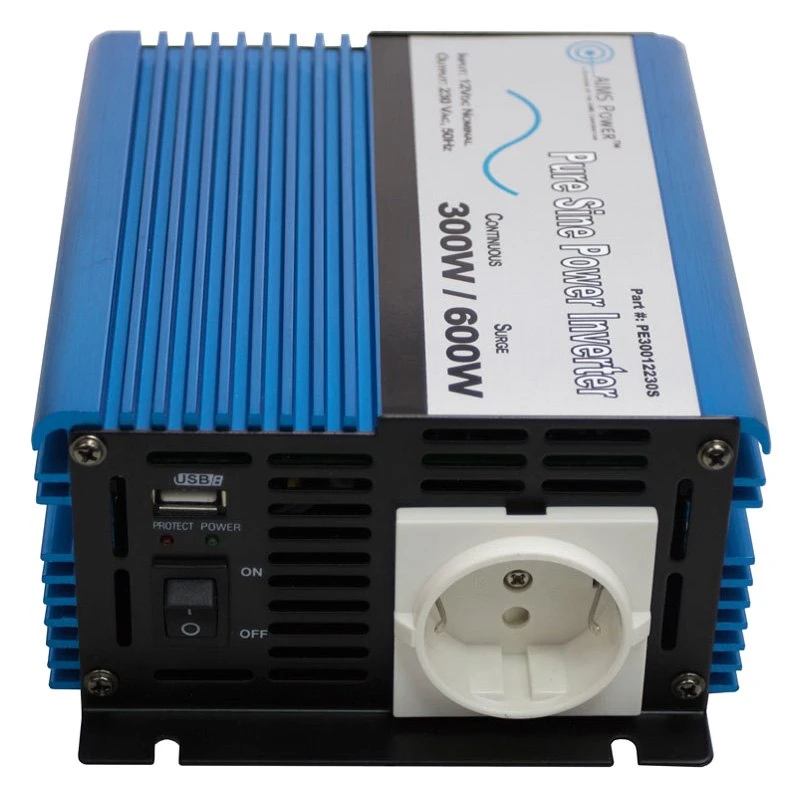

300W European 12V DC to 220/230V AC Pure Sine Inverter by AIMS Power®. Power inverters have become a staple in businesses and homes around the world due to intermittent brown and black-outs. AIMS Pure Sine Wave Power Inverters provide reliable transformation of DC power from a battery (such as the one in a car or RV) into AC power that can then be used to run lights computers printers televisions medical equipment* and a broad range of appliances.
Specifications:
| Continuous output power: 300 Watts |
| Surge power capability (peak power): 600 Watts |
| dc input / operating voltage: 10 to 15 Volts |
| Output voltage: 220/230 Volts ac |
| Output voltage regulation: +/- 3% |
| Output wave form: pure sine wave |
| Output frequency: 50 Hz +/- 2hz |
| DC amps: 2.5 |
| AC amps: 1.36 |
| Battery low voltage alarm: 10.5 +/- 0.5 Volts |
| Battery low voltage shutdown: 10.0 +/- 0.5 Volts |
| No load power consumption: less 0.7 dc amps |
| Full load efficiency: 90% 1/3 load efficiency: 95% |
| No load minimum operating temperature: 50 degrees F |
| Full load maximum operating temperature: 145 degrees F (automatic shutdown) |
| AC Output Socket Type: Single Type C,E & F 16 amps + USB Output |
| High input voltage protection: 15V |
| Low input voltage shutdown: 10V |
| Product size (D x W x H): 7.25″x3.65″x2.2″ |
| Weight: 2 lbs |
Features:
- USB port! 300W continuous power
- Pure sine wave
- Load based fan – only runs when an inverter senses a load
- Single AC Receptacle Type C,E & F
- On/off switch
- Includes dc battery alligator cables 22″ and a cigarette lighter adapter cable 20″
- Convenient cigarette plug (To protect the vehicles wiring the vehicles cigarette lighter adapter can only handle 180 watts if you are going to use more than 180 watts you must wire inverter to battery)
- ac output short circuit protection
- Instruction manual
- Free 1 year tech support
- 1 Year Warranty Parts and Labor
300 Watt Pure Sine Inverter European 12 VDC to 220/230 VAC. Includes Cables.
And when it comes to selecting an inverter it’s helpful to know that AIMS Pure Sine Wave inverters represent the most technologically advanced lightweight compact and diverse inverters on the market to help ensure the widest use of applications. For over a decade the AIMS’ Power Pure Sine Wave Power Inverters has consistently delivered the broadest range of sizes to accommodate virtually every power requirement.
Advantages of a pure sine inverter:
Equipment runs more efficiently
Motors run cooler
Cleaner power
Ideal for power tool chargers laser printers electric shavers microwaves variable speed motors TV’s medical equipment
To select the right inverter, first determine what devices you would need to run in the event of a power outage. Then, select the appropriate inverter that can power the combined wattage requirements of these devices. Please see AIMS Power tech support section for start up averages for all devices. At AIMS you’ll discover AIMS Power inverters range from 75 watts up to 12,000 watts – more than enough to power nearly every application imaginable.
