Product Details

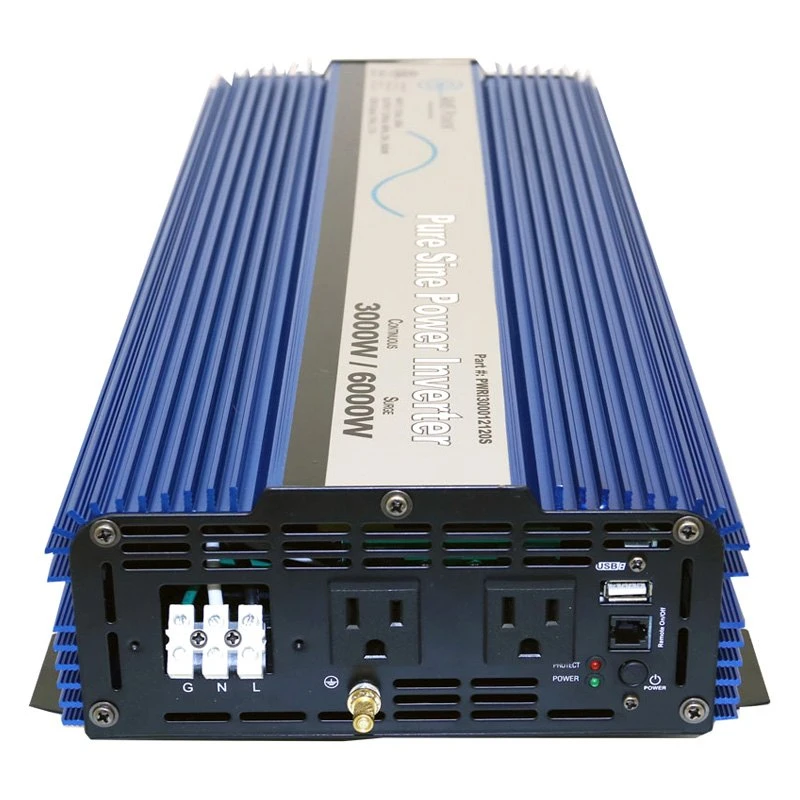

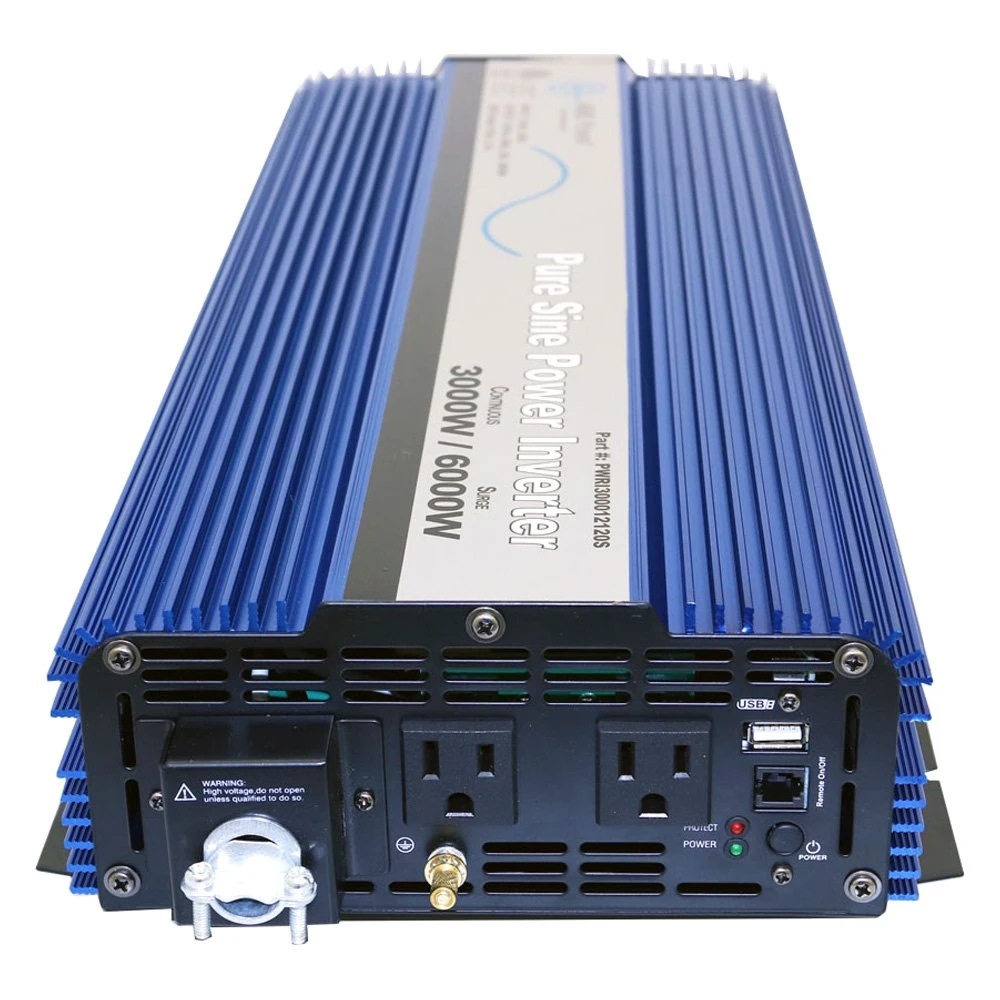

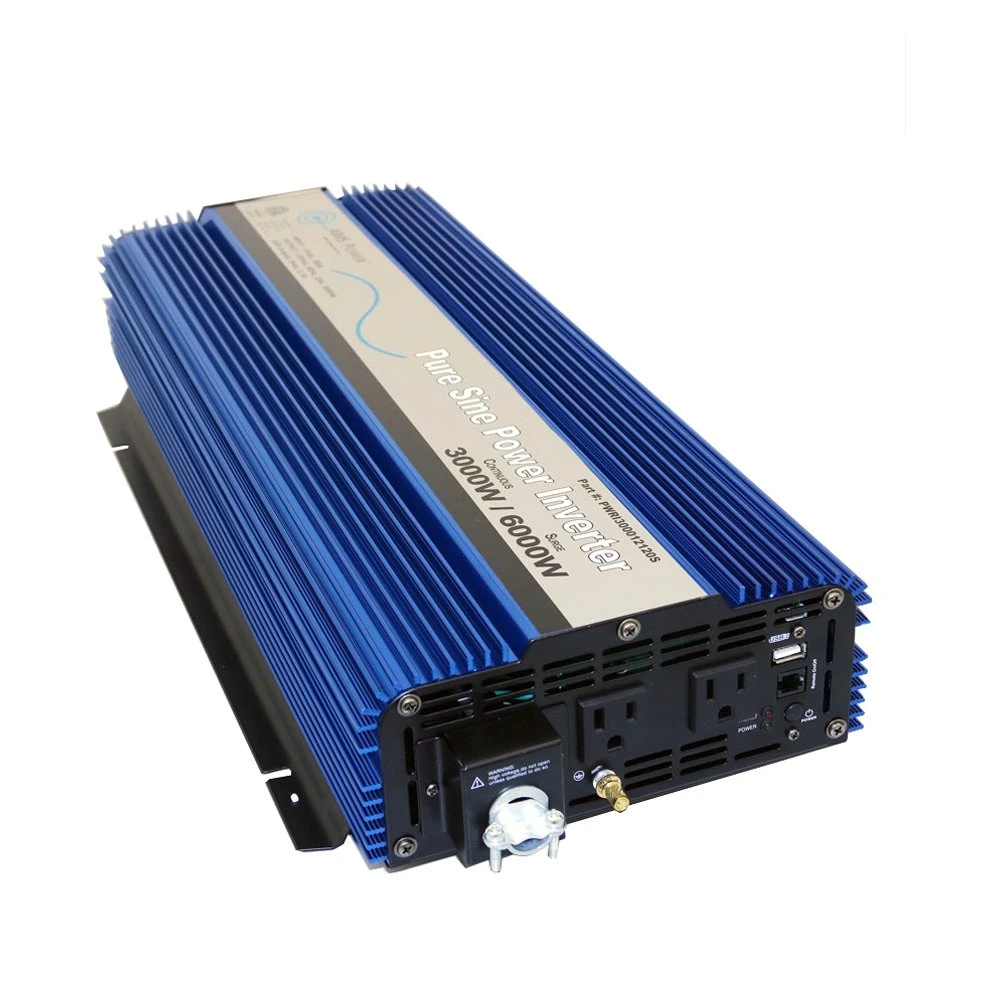

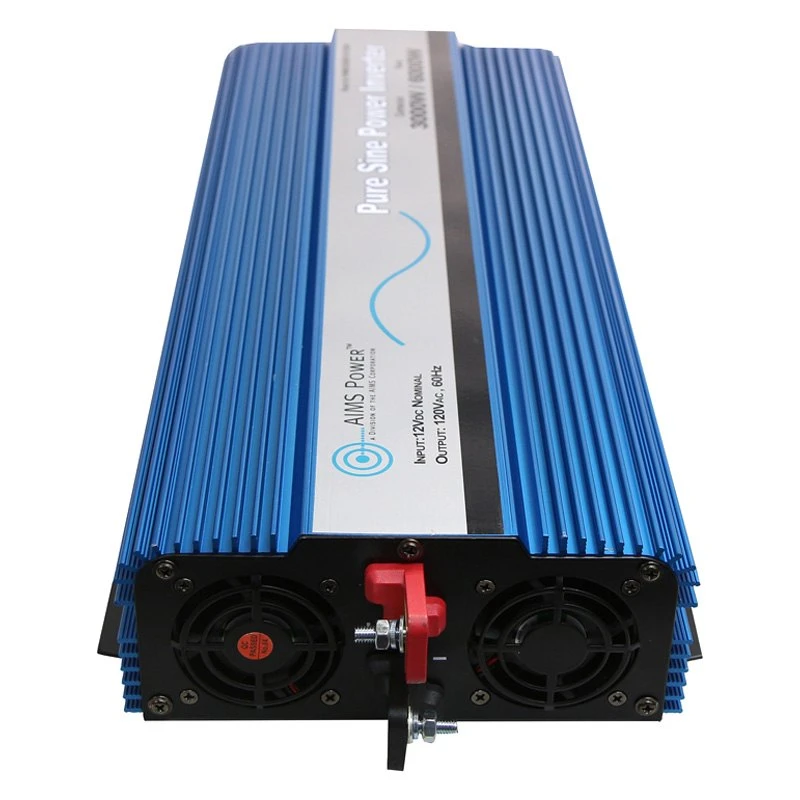

3000W UL 458/CSA 22.2 Standard Pure Sine Inverter by AIMS Power®. Power inverters have become a staple in businesses and homes around the world due to intermittent brown and black-outs. AIMS pure sine wave power inverters provide reliable transformation of DC power from a battery (such as the one in a car or RV) into AC power that can then be used to run lights, computers, printers, televisions, medical equipment* and a broad range of appliances.
Specifications:
| Continuous output power: 3000 Watts |
| Surge power capability (peak power): 6000 Watts |
| DC input / operating voltage: 9.5-16 Volts |
| Output voltage: 120 Volts ac |
| Output wave form: pure sine wave |
| Output frequency: 60 Hz |
| Battery low voltage alarm: 9.8 +/- 0.5 Volts |
| Battery low voltage shutdown: 9.5 v +/- 0.5 Volts |
| Full load efficiency: 90% |
| No load current – .9 amps or 1.37 amps with fan running |
| No load minimum operating temperature: 32 degrees Fahrenheit |
| Full load maximum operating temperature: 104 degrees Fahrenheit(automatic shutdown) |
| Dual AC Outlets and direct connect hard wire terminal block |
| High input voltage shutdown: 16V |
| Low input voltage shutdown: 9.5V +/- 0.5V |
| Product size (L x W x H): 21 1/4″ x 9 7/8″ x 3.88″ |
| Weight: 15.5 lbs unit |
Features:
- 3000 Watt continuous power
- 6000 Watt surge
- 12 Volt DC input
- Pure sine wave
- Dual outlets AND direct connect hard wire terminal block
- ETL Listed and conforms to UL 458 and CSA 22.2 No 107.1 standards
- AC Direct Connect Terminal Block
- USB Outlet 2.1A
- Efficiency: 90%
- Short circuit protection
- On/off switch
- Dual cooling fans thermally controlled
- Instruction manual
- 2 year tech support
- 2 Year Warranty Parts and Labor replacement
And when it comes to selecting an inverter, it’s helpful to know that AIMS pure sine wave inverters represent the most technologically advanced, lightweight, compact and diverse inverters on the market to help ensure the widest use of applications. For over a decade, the AIMS’ Power has consistently delivered the broadest range of sizes to accommodate virtually every power requirement.
Advantages of a pure sine inverter:
Equipment runs more efficiently
Motors run cooler
Cleaner power
Ideal for power tool chargers, laser printers, electric shavers, microwaves, variable speed motors, TV’s, medical equipment
To select the right inverter, first determine what devices you would need to run in the event of a power outage. Then, select the appropriate inverter that can carry the combined wattage requirements of these devices. Please see AIMS Power tech support section for start up averages for all devices. At AIMS, you’ll discover AIMS Power inverters range from 75 watts up to 50,000 watts – more than enough to power nearly every application imaginable.
