Product Details

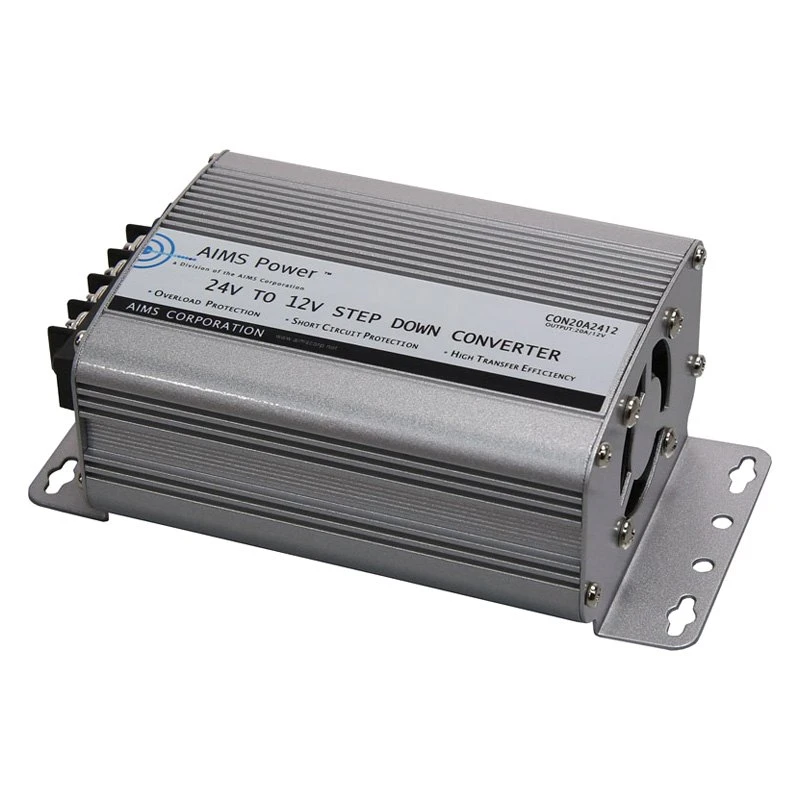

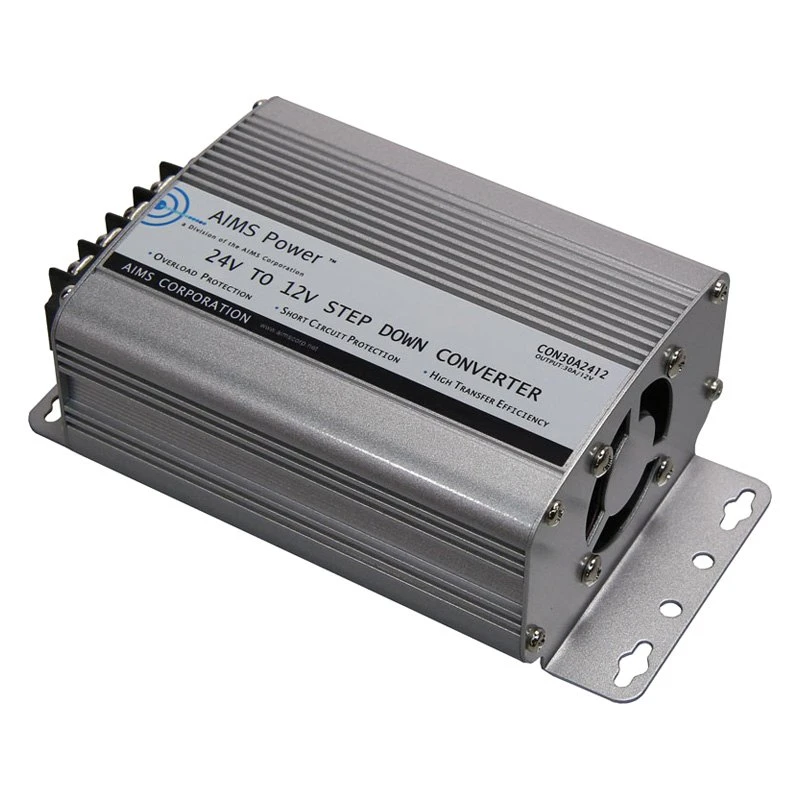

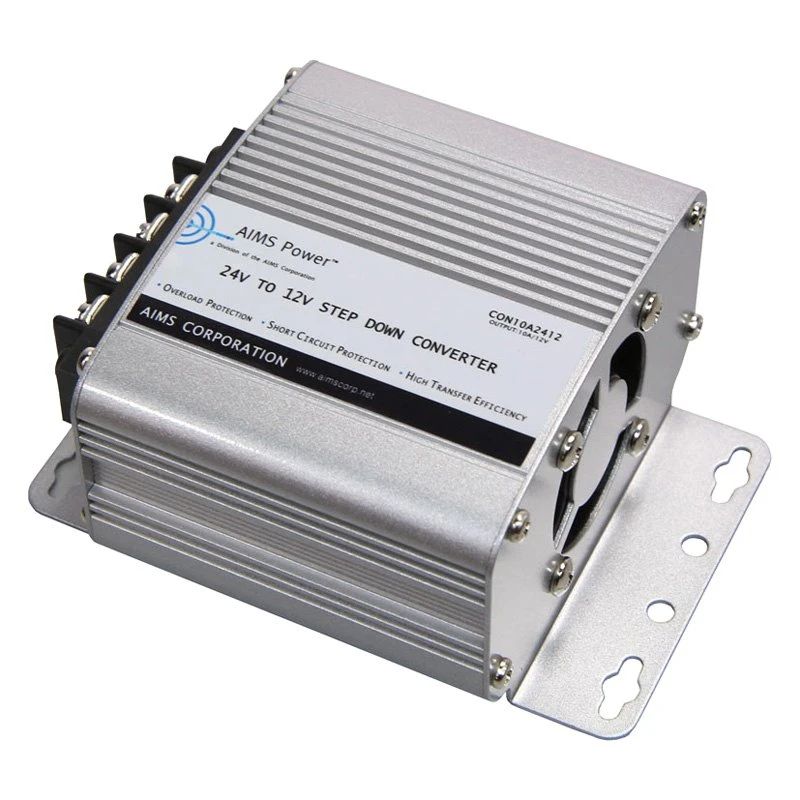

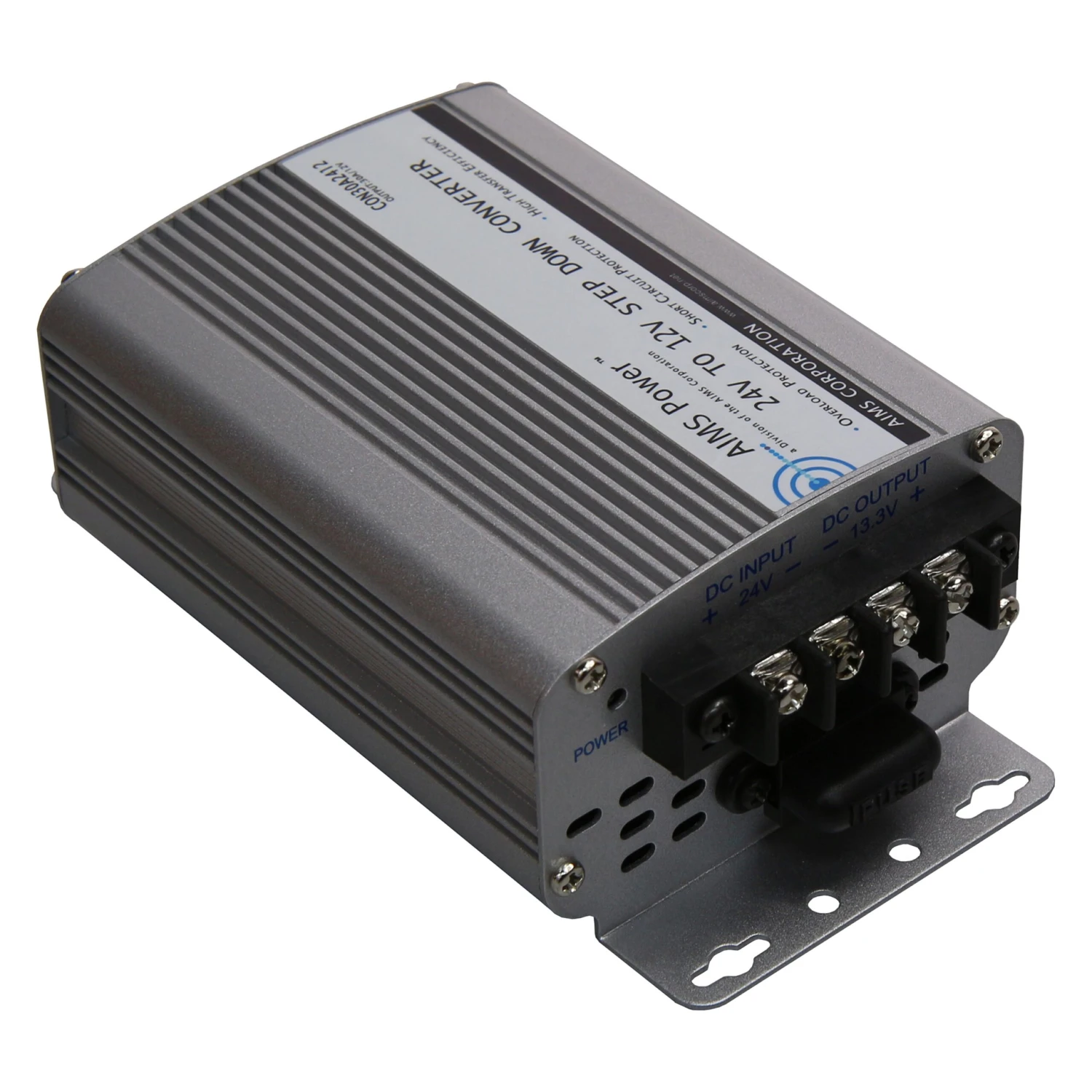

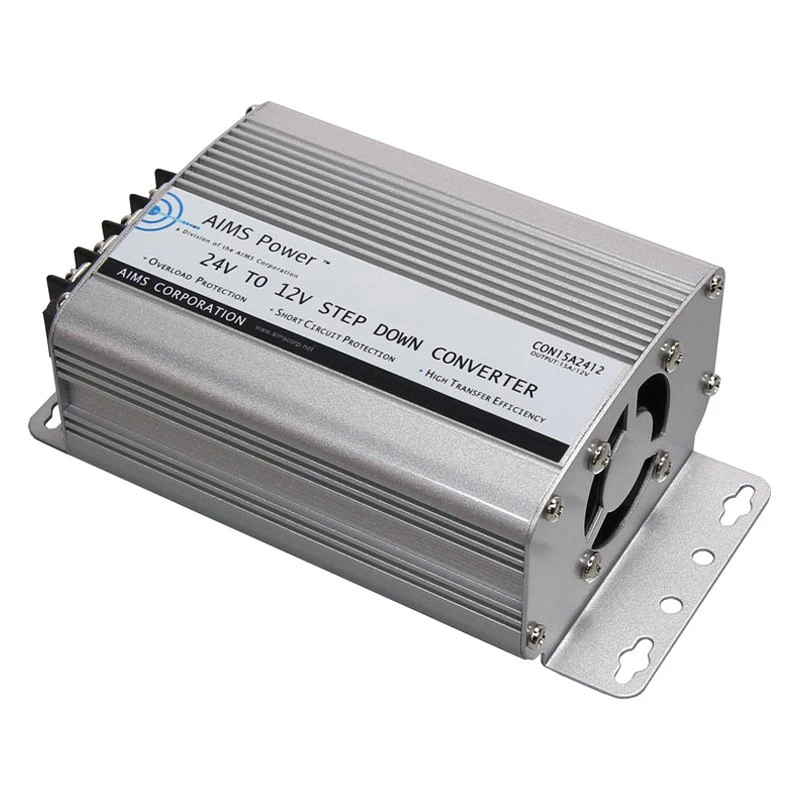

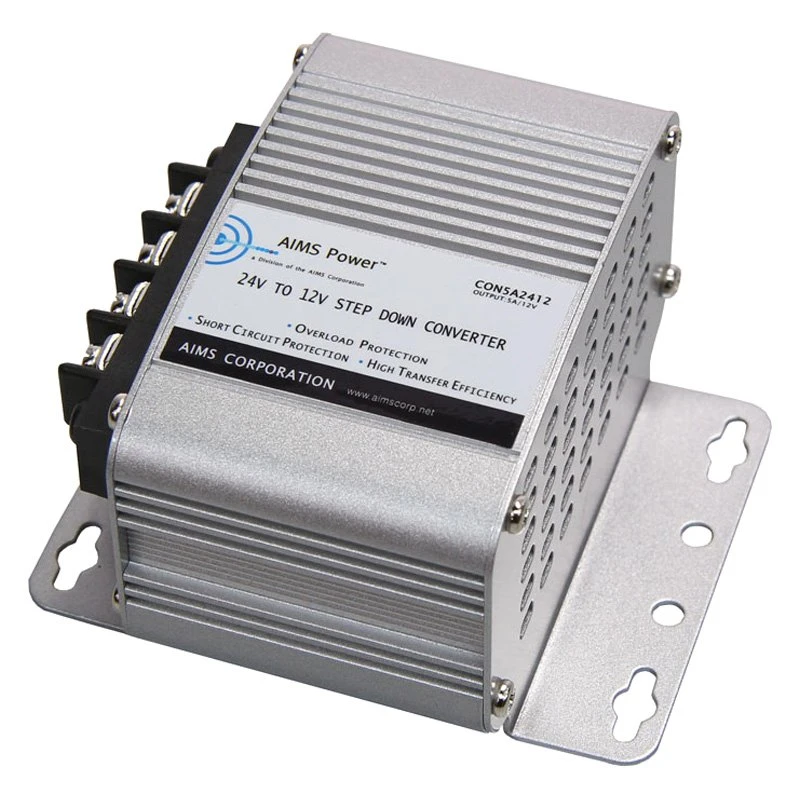

24V to 12V DC-DC Converter by AIMS Power®. This top-grade product is expertly made in compliance with stringent industry standards to offer a fusion of a well-balanced design and high level of craftsmanship. Manufactured from industry-leading materials using up-to-date equipment, it ensures everlasting reliability and enduring value. This product is distinguished by total quality assurance, unsurpassed by anybody else.
Specifications:
| DC Input Voltage: 20-37 Vdc |
| DC Output Voltage: 12.5-13.5 Vdc |
| Non-Isolated |
| DC Input Low Battery Shutdown: 18 +/- 1 V |
| DC Input High Battery Shutdown: more 38Vdc |
| DC Input Polarity Protection: Fuse Protected |
| Over Temperature Protection: 150 +/- 5 degrees F |
| DC Output Short Protection: Yes |
| DC Output Over Voltage Protection: TVS Diode |
Features:

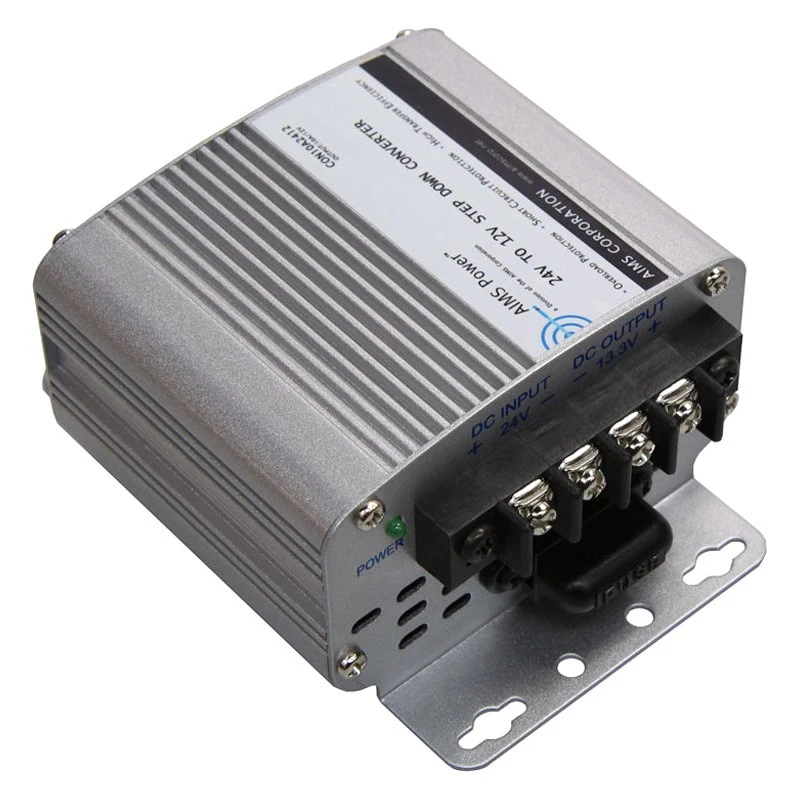

- Green LED on front panel to confirm power on

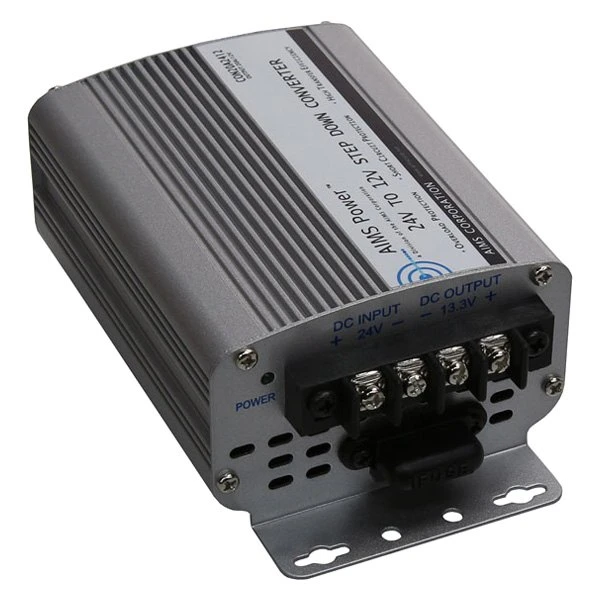

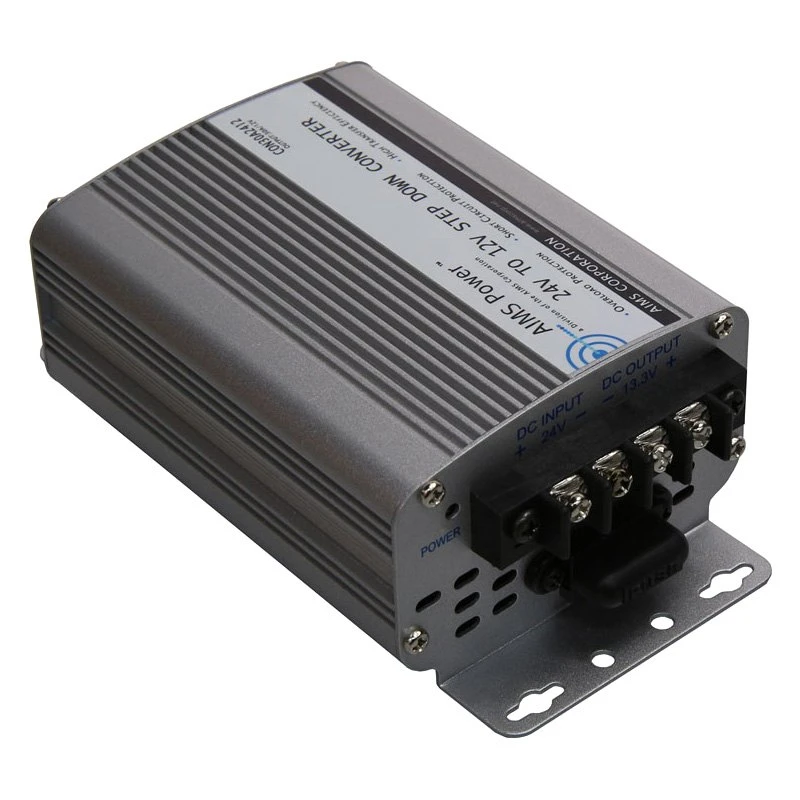

- Terminal block for DC input/output
- Over Temperature protection
- Over Load protection
- DC Input Low Battery Shutdown
- DC Input High Battery Shutdown
- DC Output Short Protection
- DC Output Over Current Protection
- DC Output Over Voltage Protection
- Transformer based
- Aluminum case for optimal cooling
- Instruction manual
- Free 1 year tech support
- 1 Year Warranty Parts and Labor
- CE EN61000-6-3:2007+A1:2011
- CE EN61000-6-1:2007
Brand:
AIMS Power
Part Number:
CON30A2412CON60A2412CON20A2412CON15A2412CON5A2412CON40A2412CON10A2412
