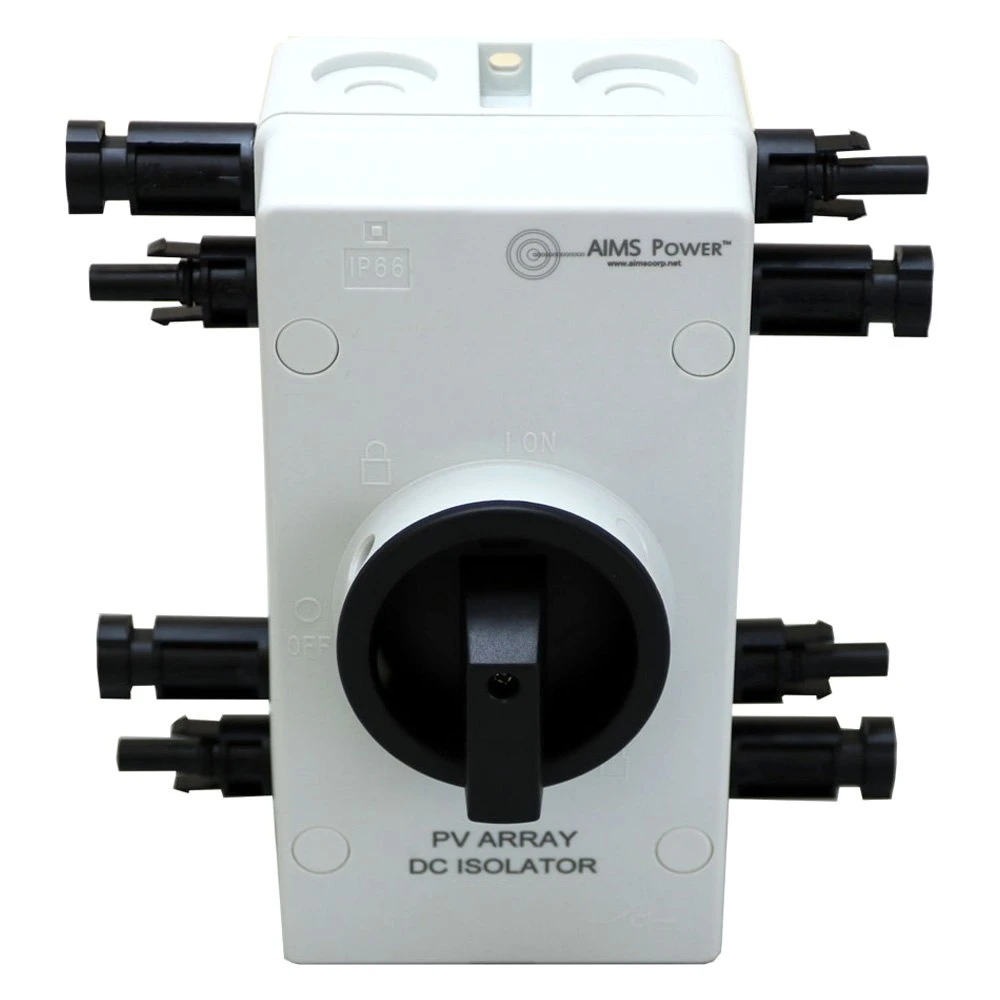

AIMS Power® – 1600V 64A Solar PV DC Quick Disconnect Switch

1600V 64A Solar PV DC Quick Disconnect Switch by AIMS Power®. The AIMS quick disconnect gives your solar system extra safety and flexibility when maintaining your system. New installations of solar photovoltaic systems have increased the need for disconnect switches and overcurrent protective devices capable of interrupting currents at voltages up to 600 Vdc. Some AIMS Power locations require a disconnect switch. PV system arrays generate DC current and need to be disconnected for maintenance or  safety. The AIMS quick disconnect switch is also ideal for applications such as cabins or vacation homes that don’t require delivery of constant solar power. Simply disconnect your solar array and reconnect when needed.

Features:

• Quickly disconnect DC power from your solar array to the charge controller, batteries and/or inverter
• Outdoor rated
• Off and on grid applications
• Isolated SAFE-LOCK with three rotational positions reducing the risk of tampering
• Double pull double throw 2IO
• Ensures the disconnection of load circuits and suppression of the arc in under 5 mil secs
• Lock out option
• 2 separate circuits
• Max combined amperage – 64 amp (2 separate 32 amp solar circuits or 1 64 amp solar circuit)

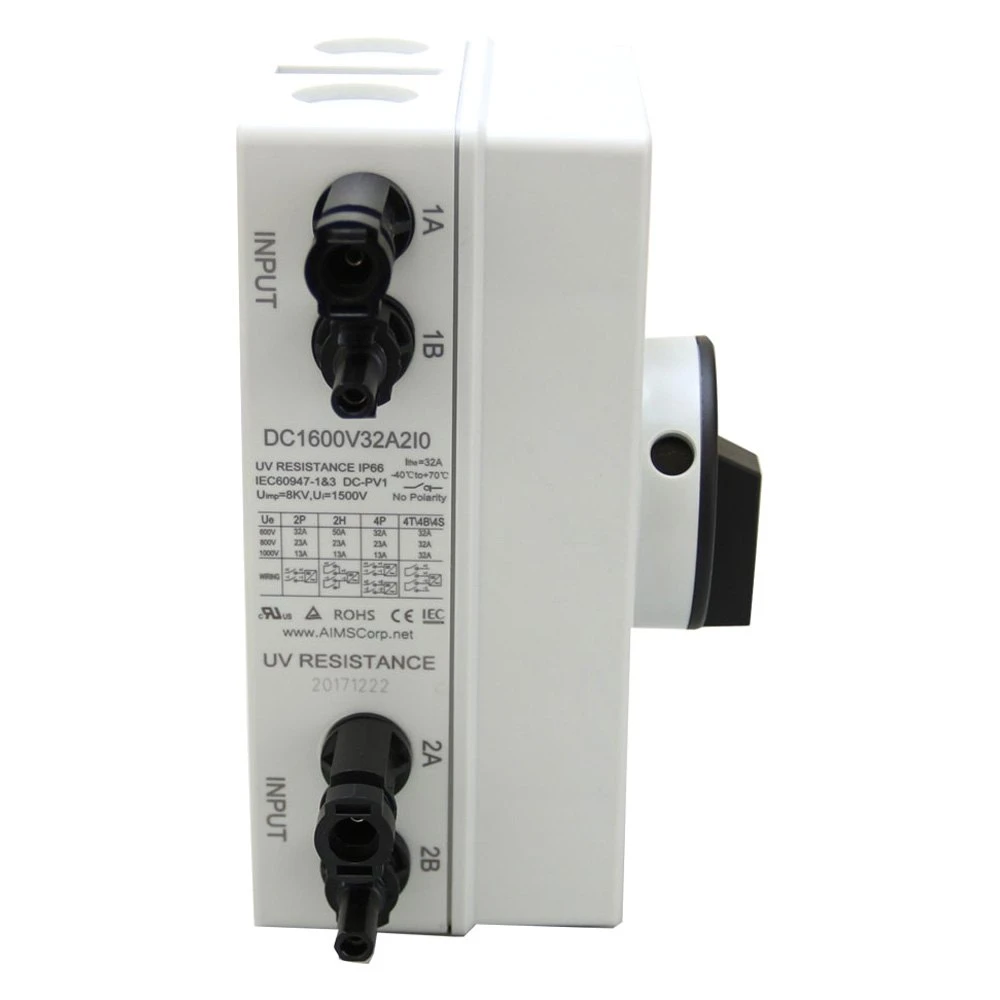

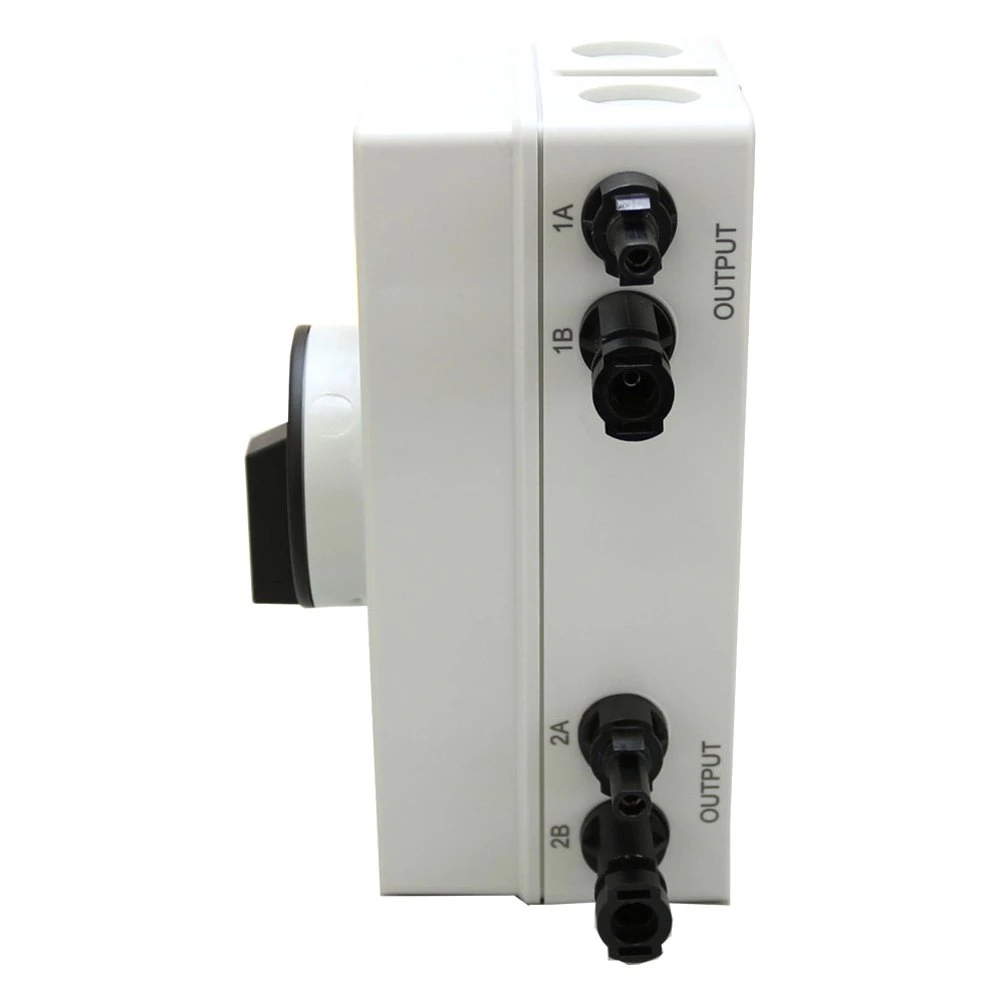

• Output and input connections are MC-4 compatible for easy set up and install
• 2 – 32 amp circuits
• Up to 1600 volts @ 64 amps
• 4 pole and 2 strings
• CE,TUV, SAA, IEC, UL certified & ROHS compliant
• Non-corrosive
• UV resistance UL 746C
• Waterproof
• Arc time
