Product Details

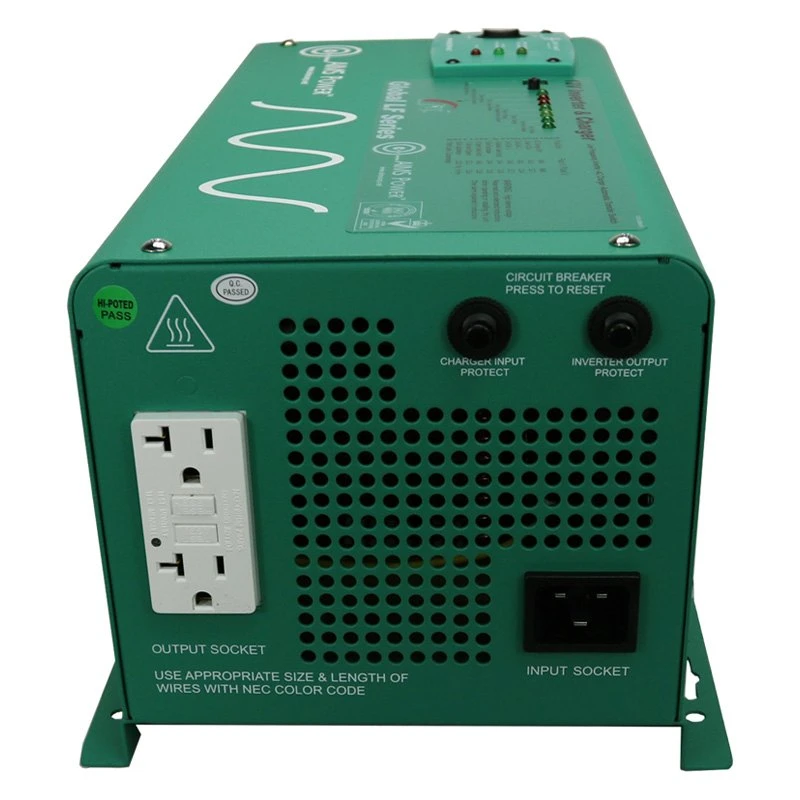

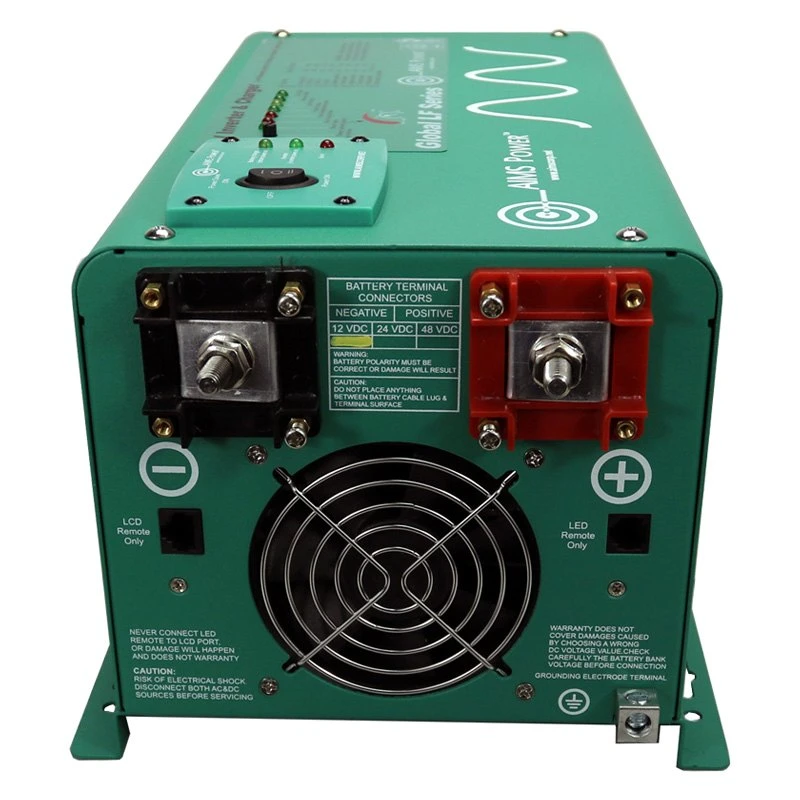

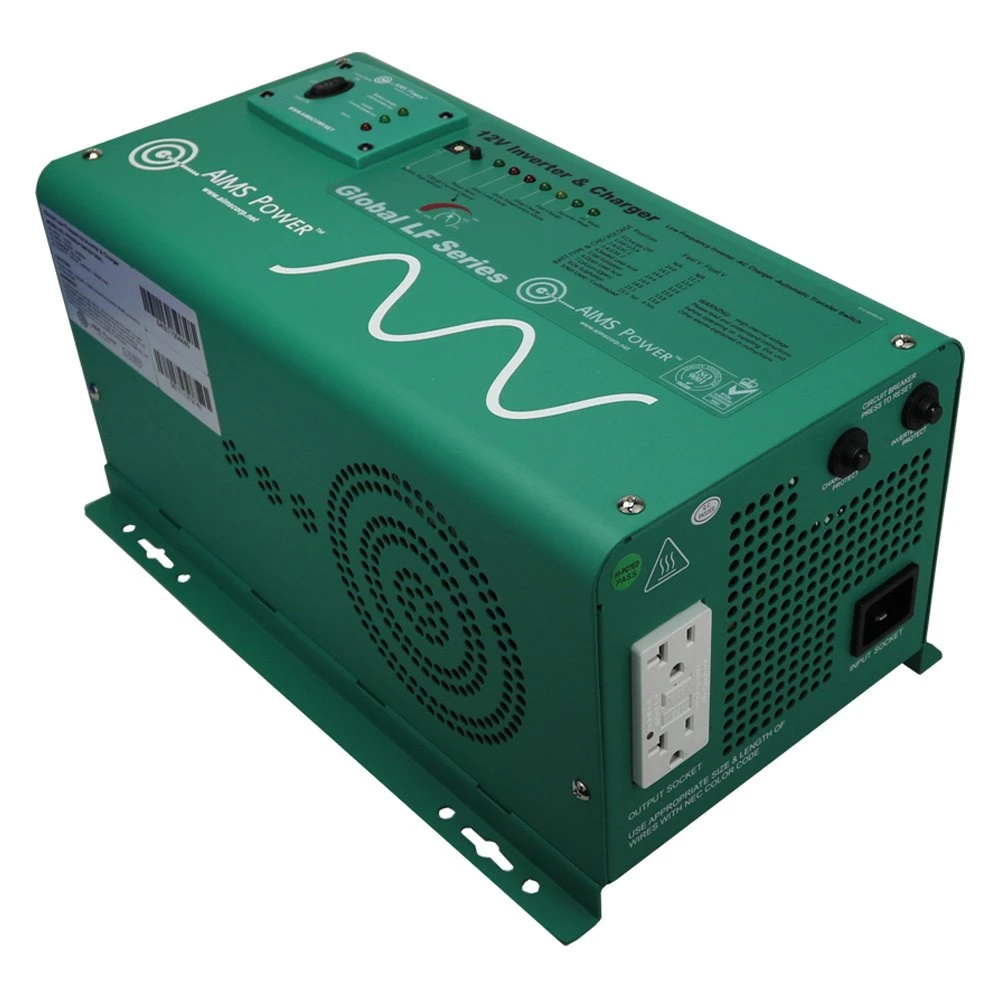

12V DC to 120V AC 1250W Low Frequency Pure Sine Inverter Charger by AIMS Power®. The AIMS 1250 watt low frequency inverter charger is perfect for most off grid systems, semi-trucks, 5th wheels, toy haulers or any remote locations needing power. Providing 1250 watts of continuous, clean and reliable pure sine wave power, ideal for sensitive electronics and household appliances. AIMS developed this inverter with less bells and whistles, making if more affordable and easy to use for applications that don’t require a lot of extra features. AIMS Power consider this AIMS Power better of AIMS Power good, better, best product lines. If needed, this inverter has the capability of producing 3750 watts of total surge power for 20 seconds, for start-up applications like refrigerators, computers, tools, motors, fans and microwaves (if running more than 3000 watt often, AIMS Power strongly recommend purchasing a larger inverter).
Specifications:
| Continuous output power: 1250 Watt |
| Surge rating: 3750 Watt (20 Seconds) |
| Output waveform: pure sine |
| Output voltage: 100/110/ 120 VAC |
| Nominal efficiency: more 88% (peak) |
| Line mode efficiency: more 95% |
| Output frequency: 60Hz +/- 0.3Hz |
| Typical transfer time: 10ms (max) |
| GFCI: 10 A outlet |
| THD: less 10% DC |
| Output breaker: |
| 15 amps |
| Input Specifications: |
| Nominal input voltage: 12.0 VDC |
| Minimum start voltage: 10.0 VDC |
| Low battery alarm: 10.5 Vdc-11.0 VDC |
| Low battery trip: 10.0Vdc-10.5 VDC |
| High voltage alarm: 16.0 VDC |
| Charger/input breaker: |
| 15 A |
| Low battery voltage restart: 15.5 VDC |
| Idle consumption: less 50 Watt when power saver on |
| Charger Specifications: |
| Output voltage_1: depends on battery type |
| Charger rate: 35A |
| Over charge protection shutdown: 15.7V |
| Selectable charge setting based on battery type |
| Adjustable charge current off-20%-100% |
| Four stage smart charger |
| Transfer Switch Specifications: |
| 10 A automatic transfer load |
| 10 ms (max) transfer time |
| Dimensions: |
| Unit weight: 38 lbs. |
| Unit size L x W x H: 15 3/4 x 8 3/4 x 7 3/8 inches |
Features:
- 1250 watt continuous
- 3750 watt surge for 20 seconds 300% surge capability (don’t use the surge mode often)
- AC input cable
- GFCI outlet
- Marine coated and protected
- Multi stage smart charger 35 A
- LCD or LED remote panel available
- AC input cord included
- Thermal and load based fan
- Low voltage recovery
- Power save mode
- Auto frequency
- 10msec typical transfer time
- Optional 25W power save mode
- 7 battery type settings for charger
- 1 year warranty and free tech support
This inverter boasts a 35 amp charger and automatic transfer switch. For use with shore power or generator power to recharge your batteries or as a back-up for your sump pump, medical equipment, appliances, tools and most anything up to 10 AC amps.
